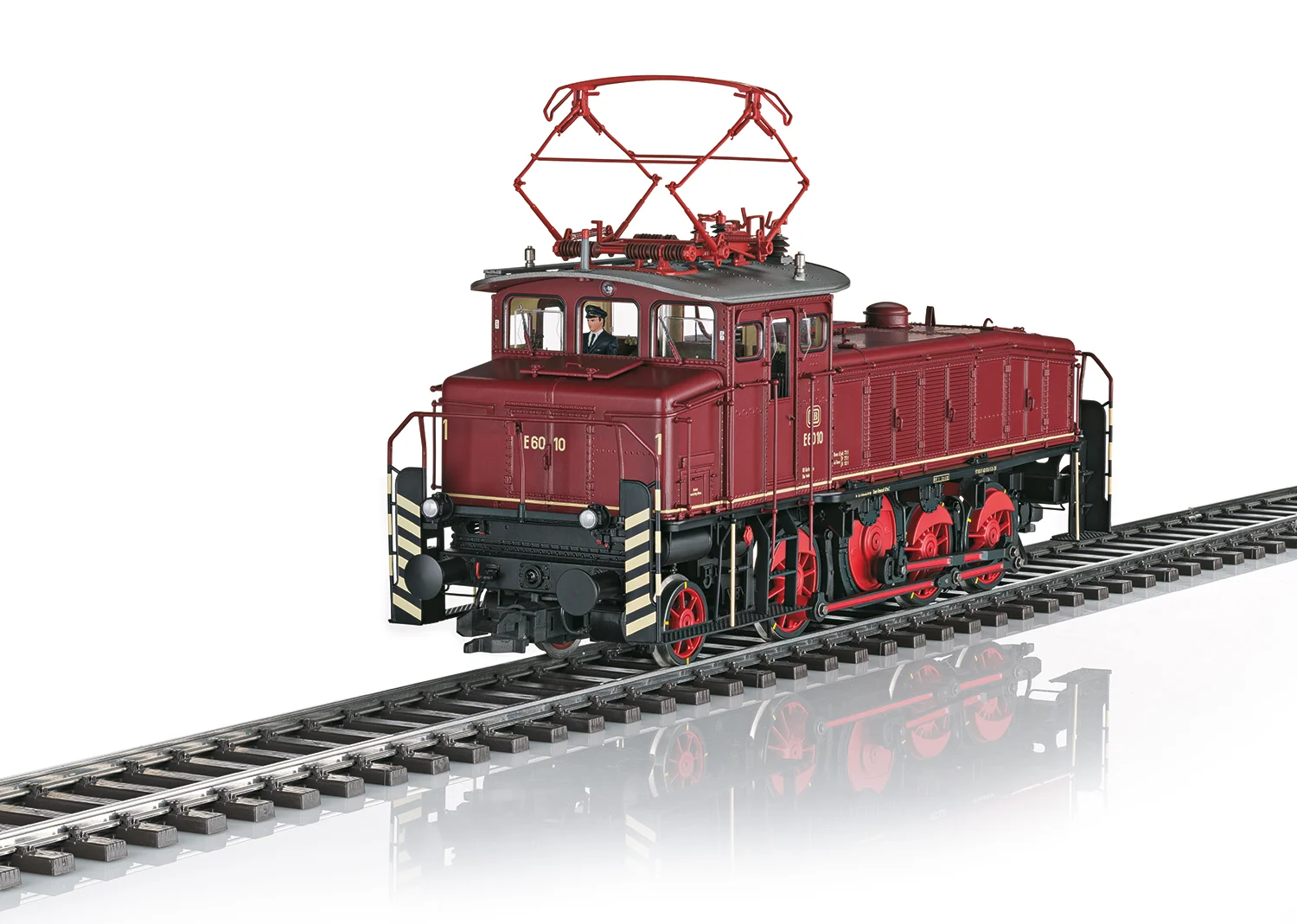

Model: This is a revised model whose chassis with a main frame and
loco body are constructed of metal. The model has an mfx digital
decoder with 31 functions. It also has a programmable buffer
capacitor. All axles are powered. The model has extensive sound
functions. It can be operated with AC, DC, Märklin Digital, and
DCC. A centrally mounted high-performance motor powers all axles.
The motorized prototypical type SBS 10 scissor pantographs with
type DBS 54 slippers can be raised and lowered in digital
operation. The white triple headlights with LEDs change over to red
marker lights and are digitally controllable. The cab has
warm-white LED lighting. The cab doors can be opened, the cab
interior details are elaborately reproduced, and the cab has a
locomotive engineer figure. The locomotive has metal grab irons and
many other separately applied details, such as signs, windshield
wipers, a whistle, a bell, etc. The buffer beams have sprung
buffers and separately applied brake lines. The factory-installed
knuckle couplers can be replaced with the two screw couplers
provided. Remote-controlled Telex couplers are fitted at the front
and rear. The minimum radius for operation is 1,020 mm / 40-3/16".
Length over the buffers 35 cm / 13-3/4". Weight approx. 3.6 kg / 7
lb 14 oz. Find more Märklin explanation videos on our YouTube
