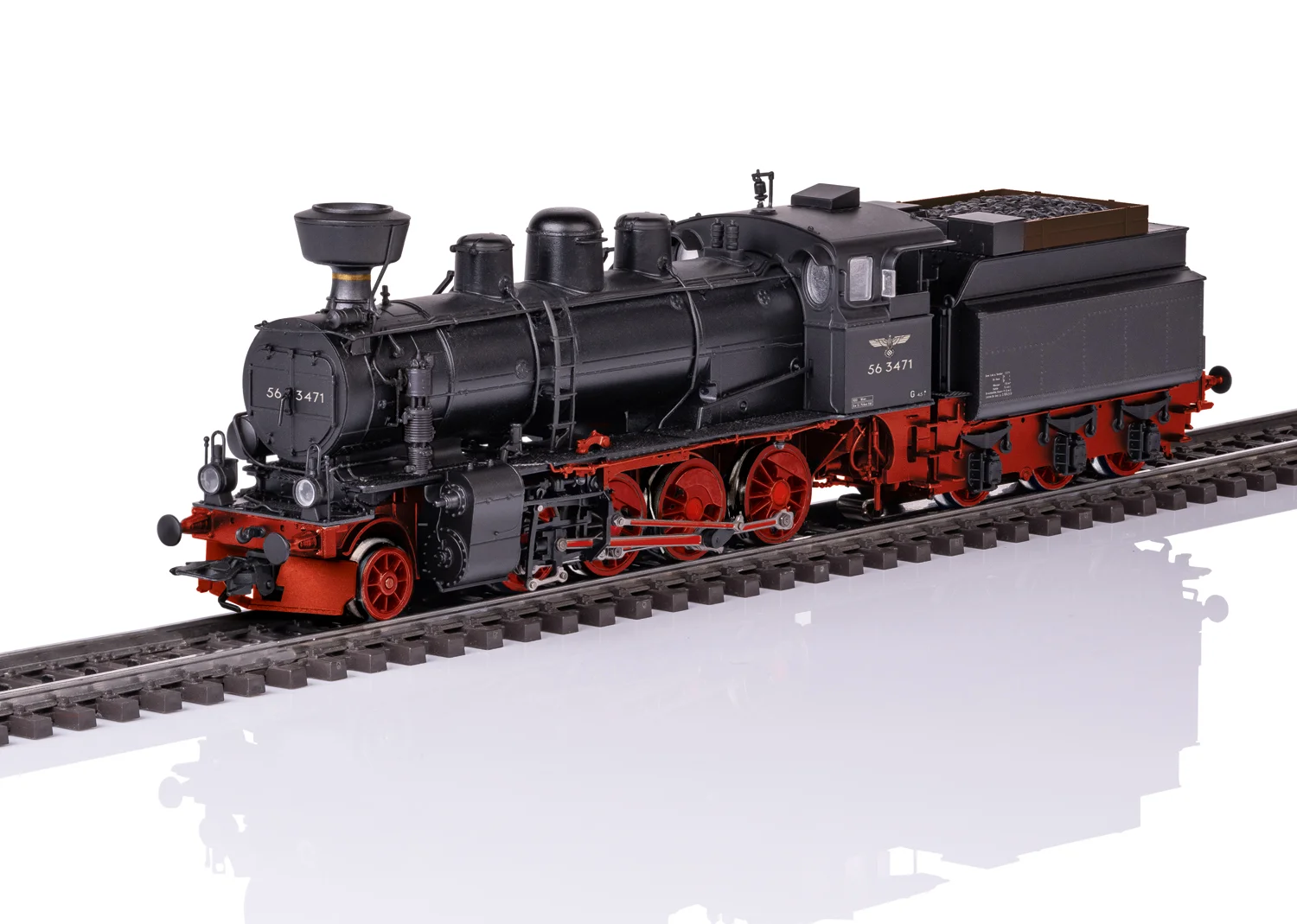

Model: The loco has an mfx+ digital decoder and extensive light and
sound functions. It also has a controlled high-performance motor
with a flywheel, mounted in the boiler. One axle is powered
directly, and three axles are driven by coupling rods. Traction
tires are fitted. The locomotive and tender are constructed mostly
of metal. The loco has a factory-fitted smoke generator with
speed-dependent, dynamic smoke exhaust. Dual headlights change over
with the direction of travel, will work in conventional operation
and can be controlled digitally. The cab lighting, firebox
flickering, and running gear lights can be individually controlled
in digital operation. Maintenance-free warm-white and red LEDs are
used for the lighting. A buffer capacitor is fitted. There is a
close coupler with a guide mechanism between the loco and tender.
The buffer heights on the loco and tender conform to NEM
specifications. The minimum radius for operation is 360 mm /
14-3/16". Protective piston sleeves and brake hoses are supplied.
Length over the buffers approximately 20 cm / 7-7/8". As a more
powerful evolution of the widely used class 170 steam loco of the
Imperial Royal Austrian State Railways, the class 270 superheated
steam locomotive was introduced at the end of the First World War.
The machines proved to be so capable that, after the war,
additional orders were placed in Austria as well as in the states
that succeeded the monarchy. The BBÖ ended up operating a total of
100 locomotives, which were then designated the class 56.34-35
following the annexation of Austria by Germany in 1938. During its
service life with the DRB, the loco was used as a
“jack-of-all-trades.” A matching freight car set is also available
in the Märklin H0 range as item 46570. This model has been
developed in partnership with PIKO Spielwaren GmbH, Sonneberg,
Germany. Find more Märklin explanation videos on our YouTube
