Highlights:
- finely detailed metal construction;
- World of Operation mfx+ digital decoder and extensive sound
functions included;
- locomotive can be switched to the Swiss headlight / marker light
code and a red marker light for running "light";
- warm white and red LEDs for lighting.

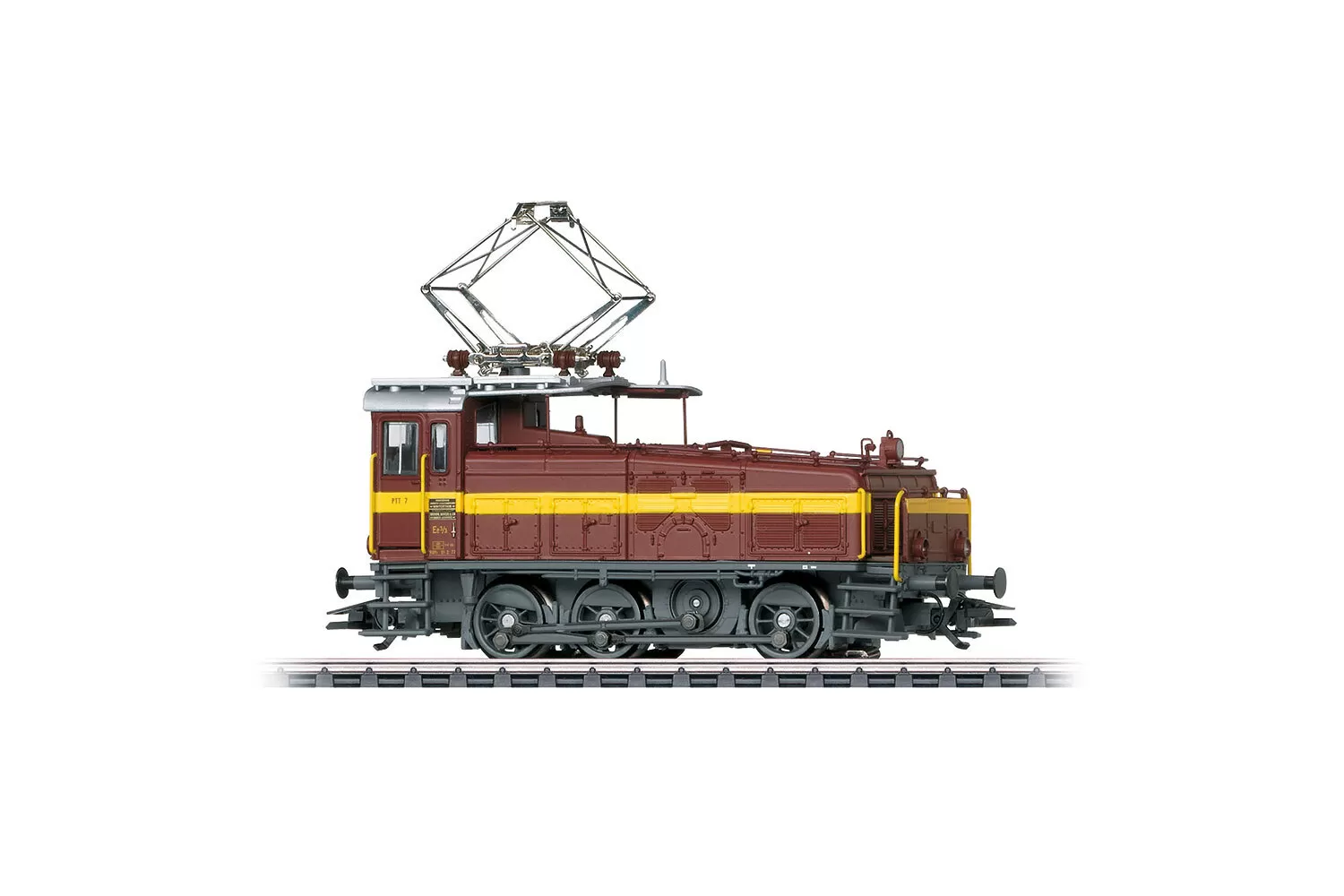

Product description:
The locomotive has an mfx+ digital decoder and extensive sound and
light functions. It also has controlled high-efficiency propulsion
with a miniature motor and a flywheel. 3 axles powered. Traction
tires. The triple headlights and dual white marker lights change
over with the direction of travel, will work in conventional
operation, and can be controlled digitally. The lighting can be
changed in digital operation to the Swiss headlight / marker light
code, with 1 white marker light as well as 1 red marker light when
the locomotive is running "light". Maintenance-free, warm white and
red LEDs are used for the lighting. The locomotive has finely
detailed metal construction with many separately applied parts. It
also has detailed roof equipment with double-arm pantographs.
Length over the buffers 10.9 cm / 4-1/4".
This model can be found in an AC version in the Märklin H0
assortment under item number 22392.
Prototype information:

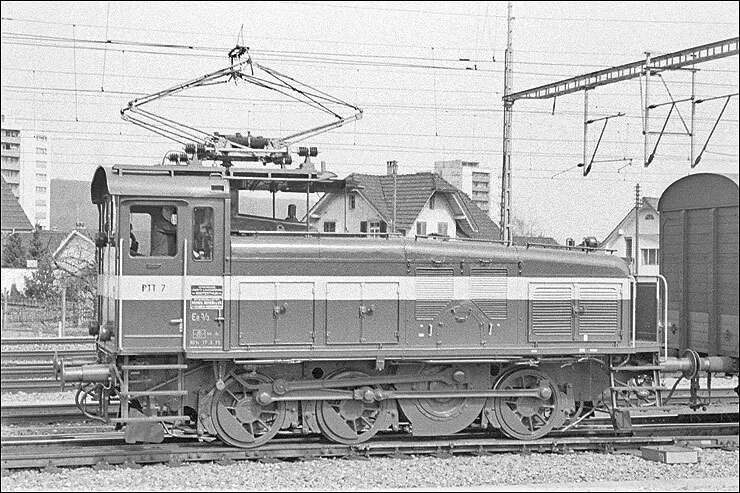

SBB “Halbschuh” / “Casual Shoe” Ee 3/3 16311-16326 Increasing
electrification of the Swiss railroad network pointed up a need for
electric switch engines. Compared to steam locomotives electric
switch engines were ready to run without a lot of preparation time
and only required power when they were actually in operation. After
two prototypes (Ee 3/4) were taken into operation in 1923, the SBB
purchased a first series of 16 units starting in 1928 from SLM and
BBC. These three-axle units could be produced without a pilot wheel
set due to technical progress in lowering the weight of their
components. They were designated as Ee 3/3 16311-16326. They had a
cab at one end of the locomotive, which together with the rather
extended roof quickly acquired the more or less affectionate
nicknames “Flat Iron” or “Casual Shoe”. A characteristic feature
was its Winterthur diagonal drive with a jackshaft powered by the
traction motor and connected to the driving wheels by side rods.
High levels of tractive effort could be realized by the wheel sets
connected together without individual axles slipping. This concept
was also used at that time on faster locomotives, but its real
strength was in those situations where it was a matter of high
levels of tractive effort. These locomotives were controlled by a
flat sliding step switch with thirteen speed levels that controlled
the voltage at the traction motor. These quaint switch engines were
gradually retired starting in 1980. At the end of 1997, the last
five units of the existing Ee 3/3 of this series still on the SBB
were taken out of service. The “Casual Shoes” sold previously to
private operators held on several more years until about 1995/96.
Several units remained preserved such as road number Ee 3/3 16318
at Locorama in Romanshorn or road number Ee 3/3 16311 at
Swisstrain.
...
