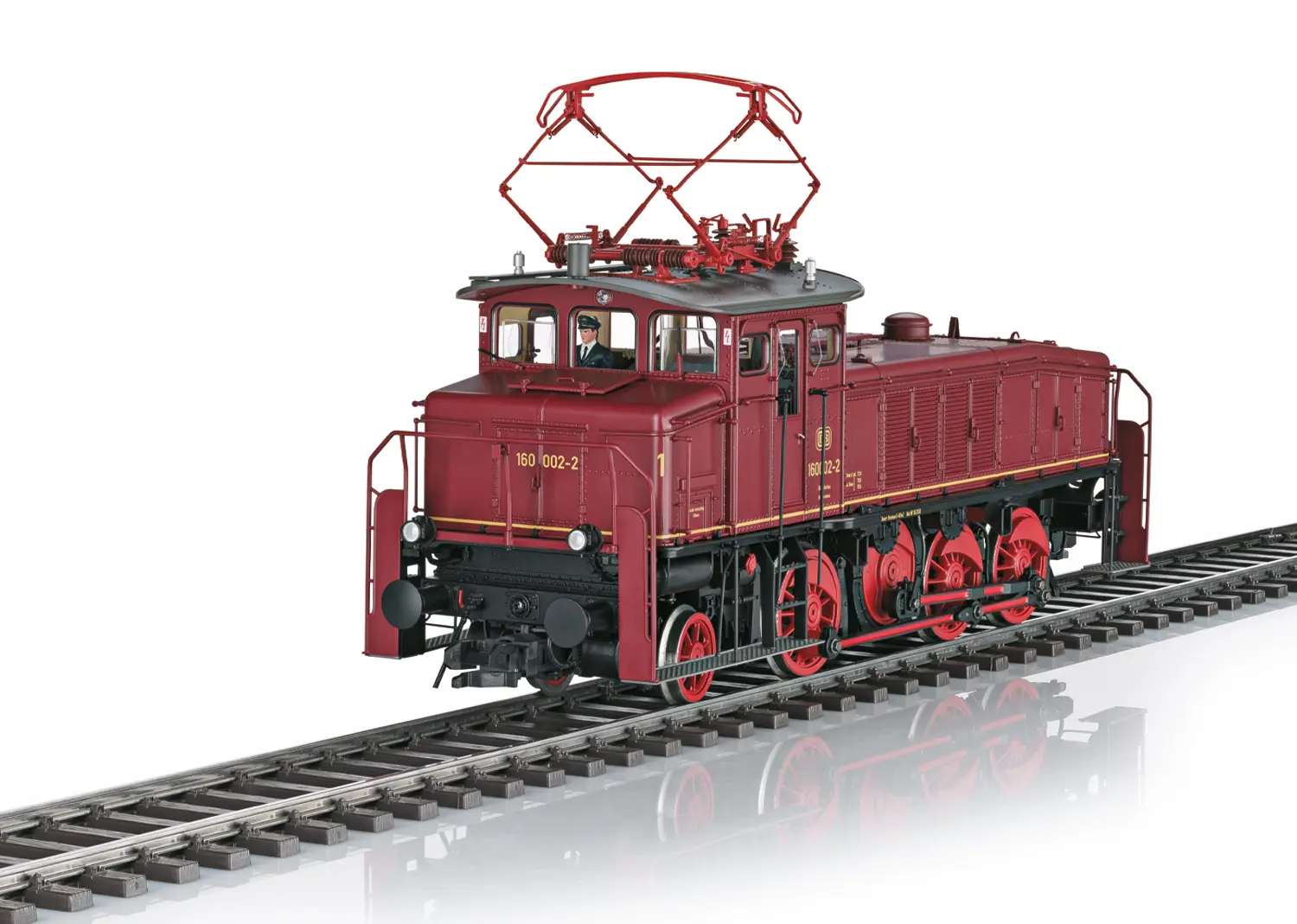

Model: The locomotive is reworked tooling. The frame and locomotive
body are constructed of metal. The locomotive has an mfx digital
decoder and 31 functions. It also has a buffer capacitor that can
be adjusted. All of the driving axles are powered. There are
extensive sound functions. The locomotive can be operated with AC
power, DC power, Märklin Digital, and DCC. The powerful motor is
centrally mounted and powers all axles. The prototypical type SBS
10 double-arm pantograph with a DBS 54 contact strip can be raised
and lowered in digital operation by means of a motor. There are
white triple headlights with LEDs that change over with red marker
lights and can be controlled digitally. The cab has warm white LED
lighting. The cab doors can be opened, there are extensive interior
details, and the cab has a figure of an engineer. The locomotive
has metal grab irons and many other separately applied details:
signs, windshield wipers, whistle, bell, etc. The buffer beams have
sprung buffers and separately applied brake lines. The locomotive
has factory-installed claw couplers that can be replaced by 2
prototype couplers included with the model. The locomotive has
built-in remote-controlled Telex couplers front and rear. Minimum
radius for operation 1,020 mm / 40-3/16". Length over the buffers
35 cm / 13-3/4". Weight approximately 3.6 kilograms / 8 lbs. Find
more Märklin explanation videos on our YouTube Channel Spare parts
for our articles can be found here in our spare parts search.
One-time series.
...
