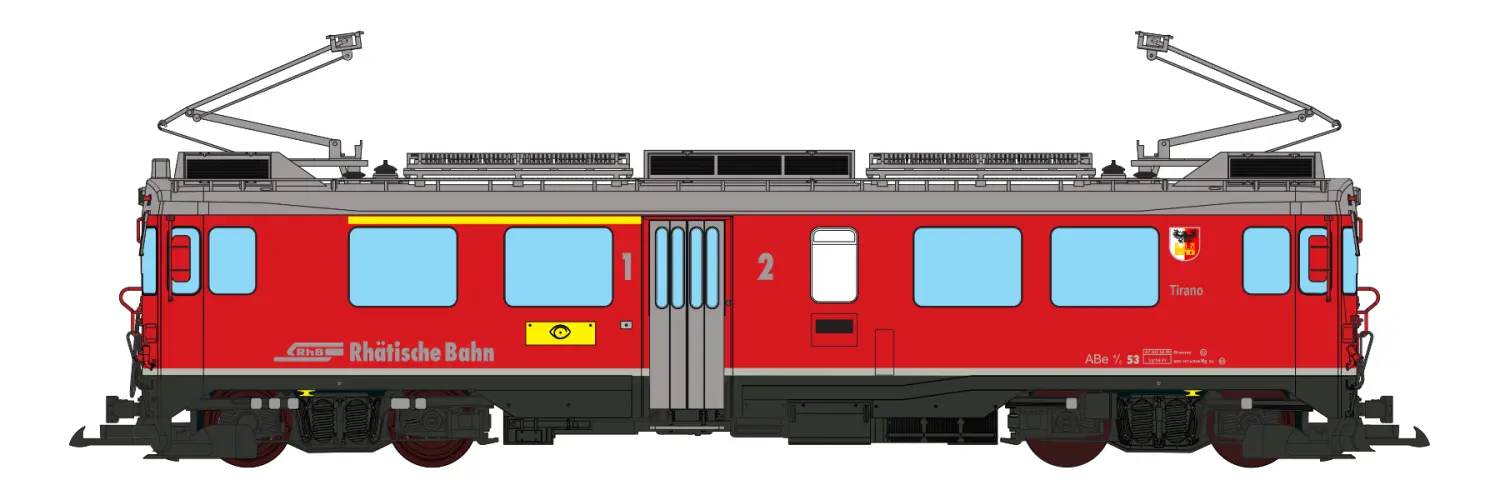

Electric multiple unit, Pullman IIm, RhB ABe 4/4 III, No. 53,
Tirano, red, Ep VI
• Structure and frame made of weather-resistant plastic
• Multicolored interior
• Multicolored driver's cab with driver figure
• Separately applied grab bars and steps
• 2 Bühler motors
• Ball-bearing axles
• Drive on four axles
• LokSound 5 XL decoder for DCC, Motorola, M4, and Selectrix
operation
• Independent registration at central units with RailComPlus or mfx
functionality
• PowerPack storage capacitor for uninterrupted power supply
• 50mm speaker with large sound capsule for the highest sound
enjoyment
• Digitally liftable and lowerable roof pantographs with ESU
servos
• Digitized original sounds
• Sensor-controlled sounds during curve travel
• Direction-dependent light change 3+1 with warm white LEDs,
train-side headlight signal can be switched off
• Direction-dependent light change 3+1 with warm white LEDs for
operation in double traction, front lights on each side can be
switched off separately
• Driver's cab and passenger compartment lighting can be switched
separately
• Brake sparks when braking
• Minimum radius = 600 mm
• Length over buffers = approx. 690 mm
The weather-resistant Pullman model features all prototype-specific
details and is manufactured as a handcrafted model in a plastic and
metal mixed construction. The end grab bars and hose couplings
consist of individually applied parts and are factory-mounted. The
multiple units are produced slightly shorter than the prototype to
enable operation on all commercially available track radii (from
600 mm). The structure receives a durable paint finish for an even
more prototype-like appearance. Paintwork and lettering correspond
to the respective construction states. The multi-part and
multicolored driver's cabs and passenger compartments are
atmospherically illuminated by warm white LEDs. Of course, you can
also switch all prototype-specific headlight signals in digital
operation.
The roof pantographs made of metal are smoothly raised and lowered
by high-quality ESU servos, accompanied by original sound. The
height to which the pantographs should extend can be set
digitally.
Each of the two bogies is powered by a powerful seven-pole Bühler
motor, which transmits its power wear-free to both axles of the
bogies via ball-bearing shafts. The axles carry wheels made of
stainless steel and are also guided in ball bearings. A three-point
suspension of the bogies ensures constant contact of all wheels
with the track, thus guaranteeing a consistently safe power
pickup.
Nevertheless, the ESU LokSound 5 XL digital decoder is
factory-equipped with a "PowerPack" energy storage device, which
ensures a consistently safe power supply even on the dirtiest
tracks in the garden. The digital equipment with several new
acoustic functions in the garden railway sector allows you to
experience your layout in a completely new way. The powerful
original sound is emitted to the outside world by a large 50mm
speaker with a sound capsule.
Novel sensors allow for speed-dependent squeaking sounds in curves.
At the ends, the multiple unit features LGB-compatible couplings.
...
