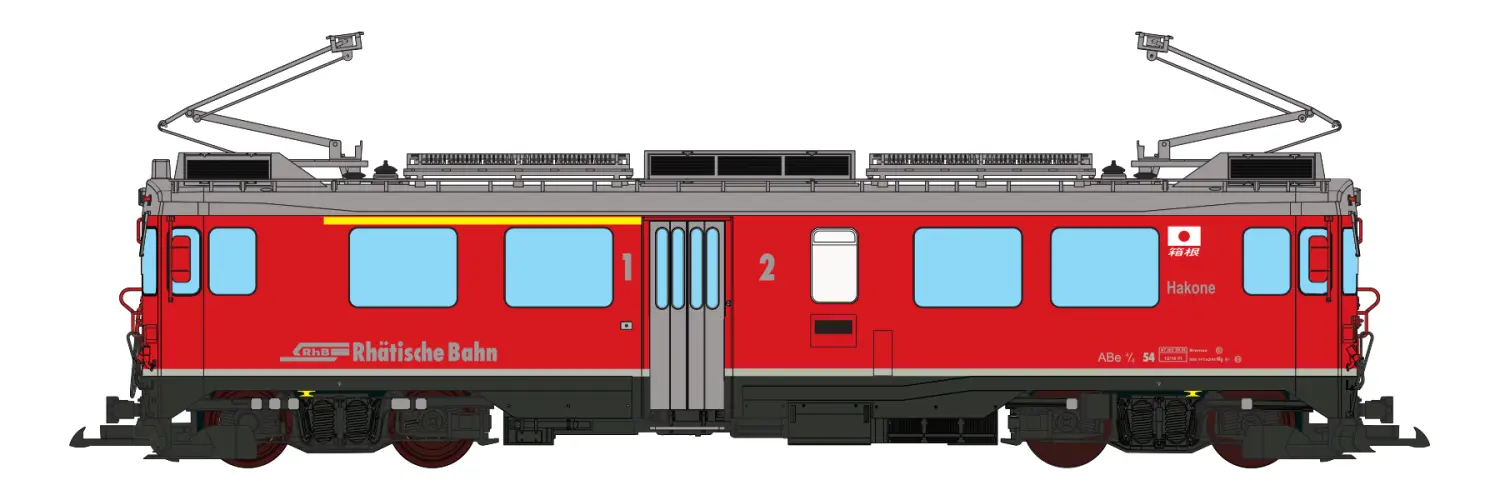

E-loco, Pullman IIm, RhB ABe 4/4 III No. 54 Hakone, red/dark blue,
Ep. VI, prototype condition around 2012, LokSound, pantograph
• Body and frame made of weather-resistant plastic
• Multicolored interior
• Multicolored driver's cab with driver figure
• Separately applied grab bars and steps
• 2 Bühler motors
• Ball-bearing axles
• Drive on four axles
• LokSound 5 XL decoder for DCC, Motorola, M4, and Selectrix
operation
• Independent registration at central units with RailComPlus or mfx
functionality
• PowerPack storage capacitor for uninterrupted power supply
• 50mm speaker with large sound capsule for the highest sound
enjoyment
• Digitally liftable and lowerable roof pantographs with ESU
servos
• Digitized original sounds
• Sensor-controlled sounds during curve travel
• Direction-dependent light change 3+1 with warm white LEDs, side
lights can be switched off
• Direction-dependent light change 3+1 with warm white LEDs, for
operation in double traction, front lights on each side can be
switched off separately
• Driver's cab and passenger compartment lighting can be switched
separately
• Brake sparks when braking
• Minimum radius = 600 mm
• Length over buffers = approx. 690 mm
The weather-resistant Pullman model features all prototype details
and is manufactured as a handcrafted model in a plastic and metal
mixed construction. The end grab bars and hose couplings consist of
individually applied parts and are factory-mounted. The railcars
are produced slightly shorter than the prototype to enable
operation on all commercially available track radii (from 600 mm).
The body receives a durable paint finish for an even more
prototype-like appearance. Paintwork and inscriptions correspond to
the respective construction states. The multi-part and
multi-colored driver's cabs and passenger compartments are
atmospherically illuminated by warm white LEDs. Of course, you can
also switch all prototype-like front signals in digital
operation.
The roof pantographs made of metal are smoothly raised and lowered
by high-quality ESU servos, acoustically accompanied by original
sound. The height to which the pantographs should extend can be set
digitally.
Each of the two bogies features a powerful seven-pole Bühler motor,
which transmits its power wear-free to both axles of the bogies via
ball-bearing shafts. The axles carry wheels made of stainless steel
and are also guided in ball bearings. A three-point suspension of
the bogies ensures permanent contact of all wheels with the track,
thus ensuring a consistently safe power pickup.
Nevertheless, the ESU LokSound 5 XL digital decoder is
factory-equipped with a "PowerPack" energy storage unit, which
guarantees a consistently safe power supply even on the dirtiest
tracks in the garden. The digital equipment with several new
acoustic functions in the garden railway sector allows you to
experience your layout in a completely new way. The powerful
original sound is emitted to the outside world by a large 50mm
speaker with a sound capsule.
Novel sensors allow the typical squeaking sound to be heard in
curves, depending on speed. At the ends, the railcar features
LGB-compatible couplings.
...
