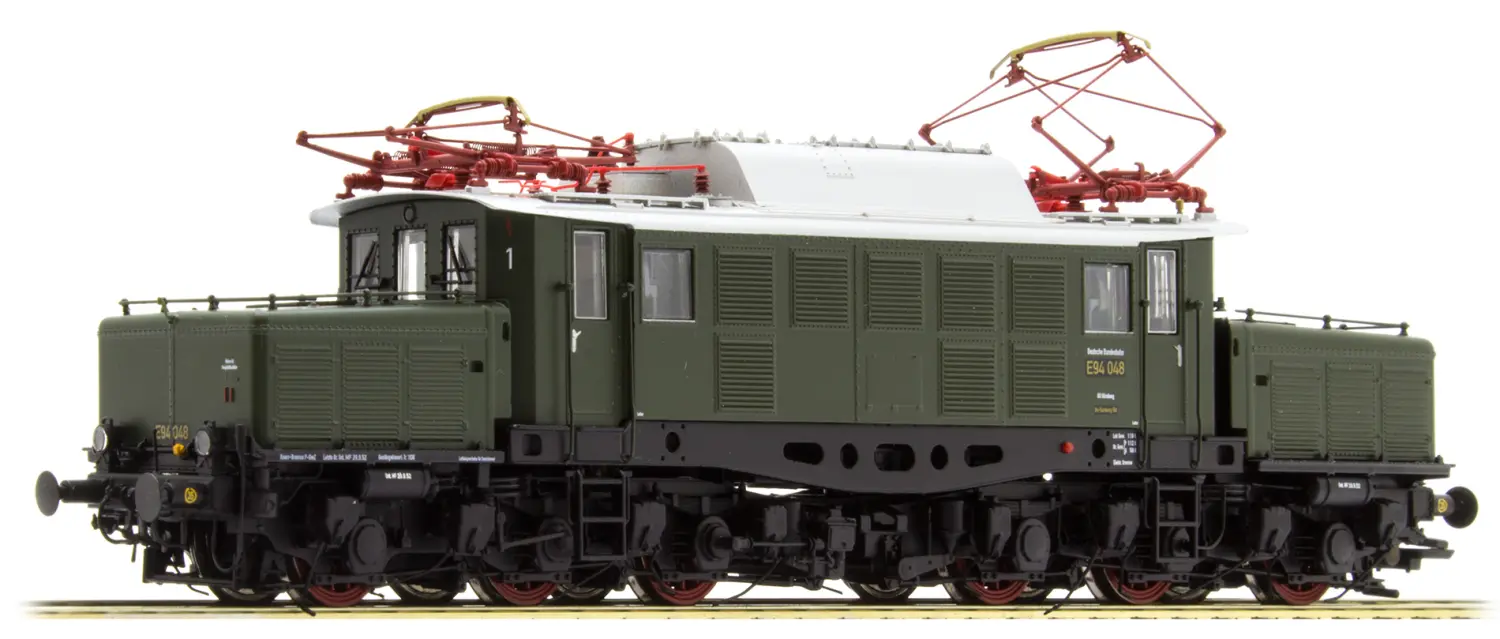

Electric locomotive class E94 of the DB, era III in bottle green
livery.
Operating number: E94 048
Often referred to as German crocodiles due to their articulated
three-part design, these six-axle locomotives are now being
commemorated by ESU in H0 scale.
The ESU model features a finely detailed metal body and metal-built
front structures. Numerous separately applied parts made of metal
and plastic convey the powerful impression of the prototype in the
model.
The epoch-appropriate differences between the locomotives are
naturally reflected in the metal chassis. Notable are the different
numbers of sandboxes, the reproduction of wooden and metal steps on
the roof, and of course the design of the lamps. It goes without
saying that the lamps are freestanding.
The delicate pantographs can be remotely controlled to raise and
lower individually from the central unit. Separate controls are
available for the shunting lights (one lamp on each side) and the
cab lighting.
The locomotive is also equipped with sensors for situational sounds
in curves and switch tracks, a LokSound V4.0 M4 decoder with two
speakers, and an energy storage unit that ensures safe operation
even on dirty tracks or long switch tracks.
Thanks to RailCom Plus® functionality, the locomotive automatically
registers with compatible central units (e.g., ESU ECoS). The
proven universal electronics with plug-in slider and universal
wheelsets found in other ESU locomotives are also present in the
E94. The LokSound decoder naturally reproduces the original sounds
of the E94. To provide enough space for the speaker and its sound
capsule, each bogie contains a compact bell-armature motor with a
flywheel, driving two axles each. Four traction tires ensure that
the locomotive transfers its power to the tracks. For perfect
current collection, the middle axles are designed to be sprung.
...
