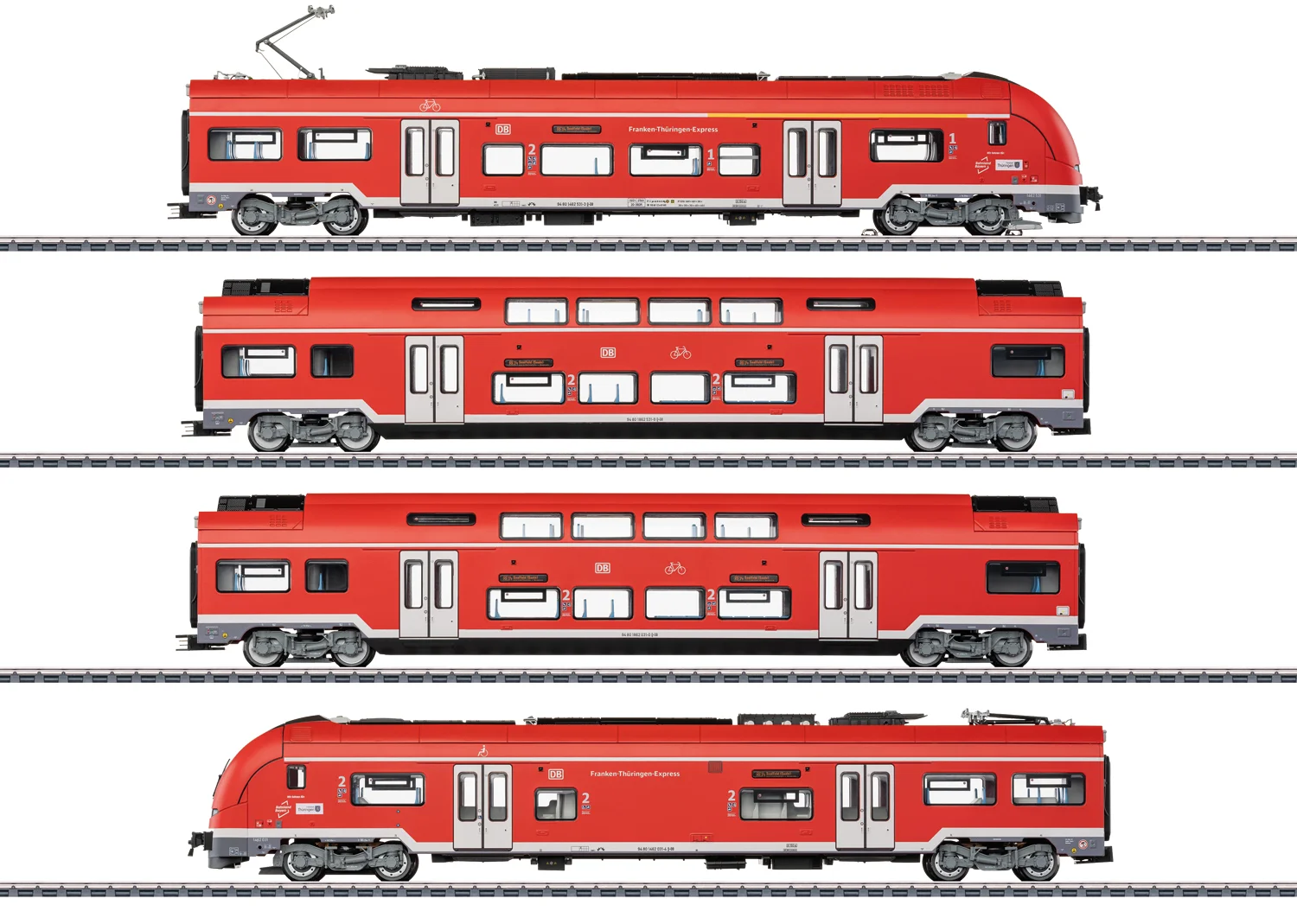

Model: The train has an mfx+ digital decoder and extensive sound
and light functions. It also has controlled, high-efficiency
propulsion with a flywheel, built centrally into End Car A. All
four axles are powered in both trucks using cardan shafts. Traction
tires. The current supply changes over with the direction of travel
and is picked up at the end car at the front of the train. There
are special close couplers with a guide mechanism. Triple
headlights and dual red marker lights change over with the
direction of travel, will work in conventional operation, and can
be controlled digitally. There is a double A light function.
Long-distance headlights prototypically have two levels of
brightness. They, the cab and control desk lighting as well as
lighting for the train destination signs at the ends and on the
sides can be controlled digitally. There is factory-installed LED
interior lighting. A buffer capacitor is built into each car to
bridge over temporary spots without current. The interior lighting
receives current using the continuous electrical connection for the
entire train. Maintenance-free warm white and red LEDs are used for
all of the train's lighting. The interior details are
multi-colored. The pantographs can be raised and lowered digitally.
There are many separately applied details. The minimum radius for
operation is 360 mm / 14-3/16". Length of the train approximately
112.6 cm / 44-5/16". This electric powered train can be found in a
DC version in the Trix H0 assortment under item number 25462. Find
