Salon Alee 10-56

UIC / EVN numbering:

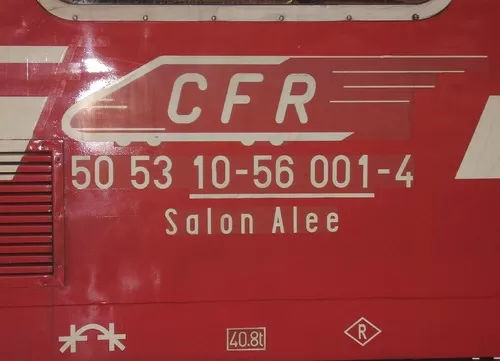

50 53 10-56

Vehicle type:

Regular passenger coach

Registration country:

Romania

Railway companies:

SNTFC - Societatea Naţională de Transport Feroviar de Călători (CFR Călători)

Hide technical details

In service:

from 1998

Built by:

Atelierele CFR Grivita

Length over buffers (mm):

24'500 mm

Width (mm):

2'864 mm

Height (mm | over lowered pantograph):

4'050 mm

Wheelbase (distance between bogies centers) (mm):

17'200 mm

Minimum radius of curvature on open stretches (m):

150 m

Minimum radius of curvature on switching sections (m):

80 mm

Bogies:

Minden-Deutz

Bogie wheelbase (mm):

2'500 mm

Wheel (steel tire wheel / monoblock wheel):

steel tire wheel

Maximum speed (km/h):

140 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR pneumatic tread (clasp) brakes

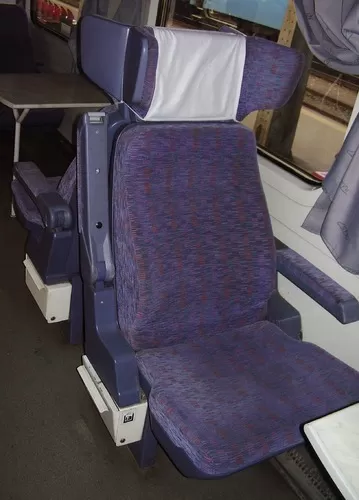

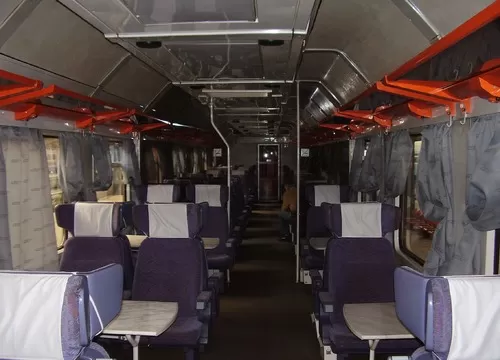

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

78x 1st class seats

Toilets (direct discharge toilets / closed circuit toilets):

2x toilets

Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):

1500 V AC / 50 Hz

Electric Train Heating (ETH) (yes / no - electric radiators / modulated air):

yes

Air conditioning (yes / no):

yes

Seat electrical sockets (xxx V AC / DC xx Hz seat electrical sockets / USB charger sockets):

230 V AC / 50 Hz seat electrical sockets

Display registration numbers

Vehicle's history

Add content

Report an error?

1998

The only unit from this series is converted from a B 20-57 passenger coach by Atelierele CFR Grivita in Bucharest (Romania) in 1998.

Sources: http://transport-in-comun.ro/trenuri/vag-cal/vag_10-56.htm
