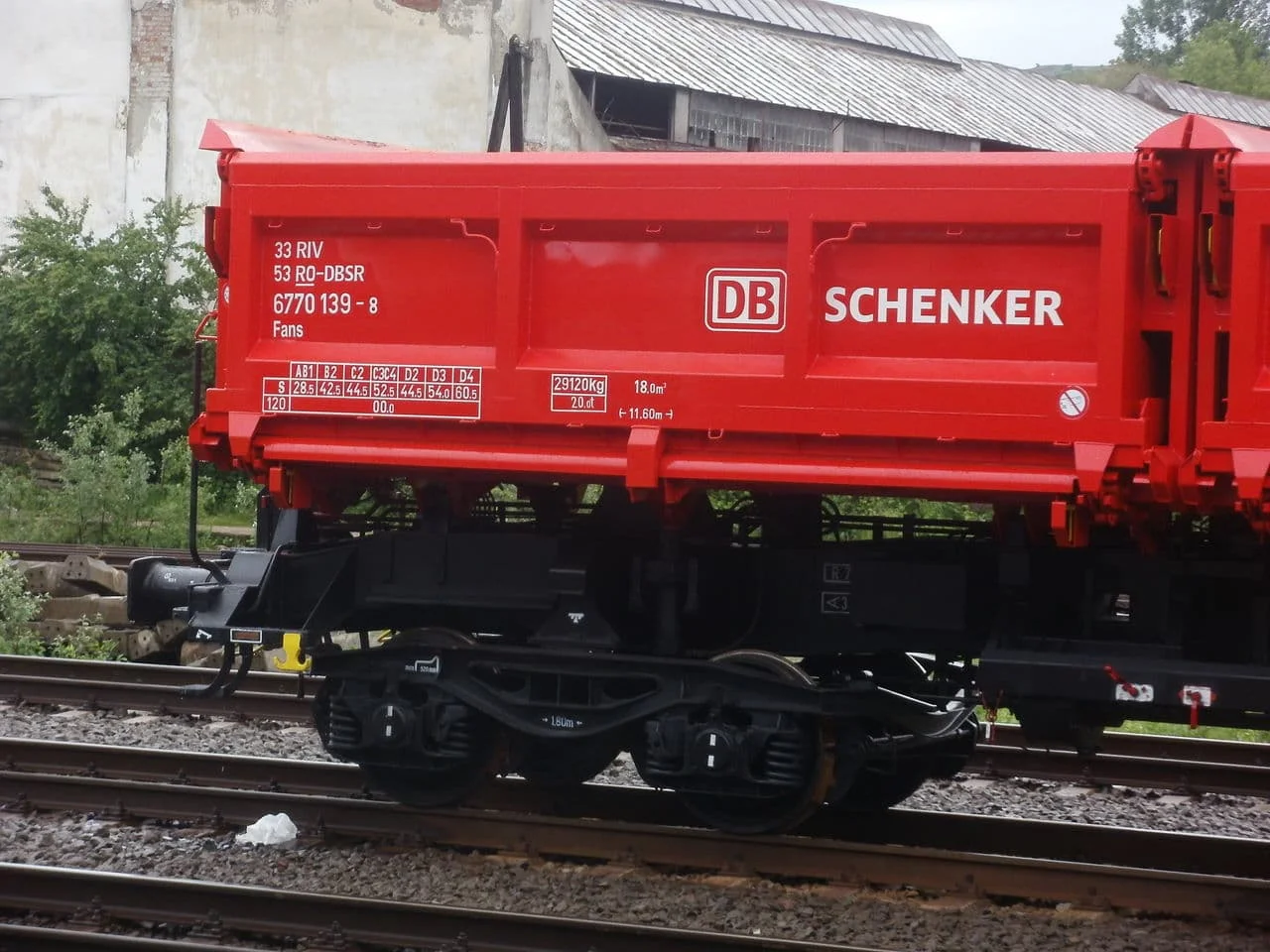

Source: Mihai Petre

Source: trenuletz.forumgratuit.ro

Source: grivita.ro

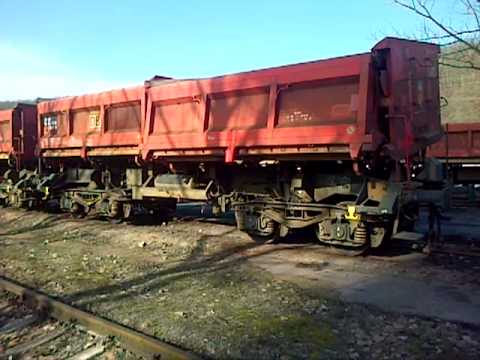

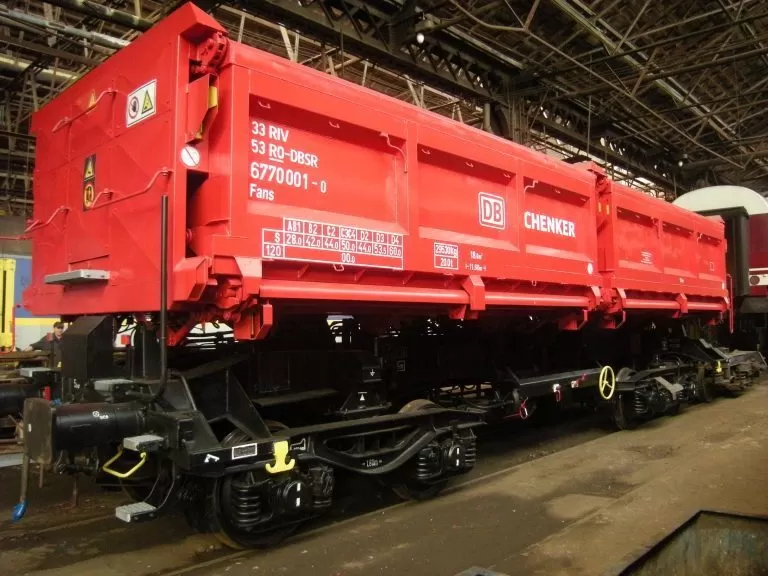

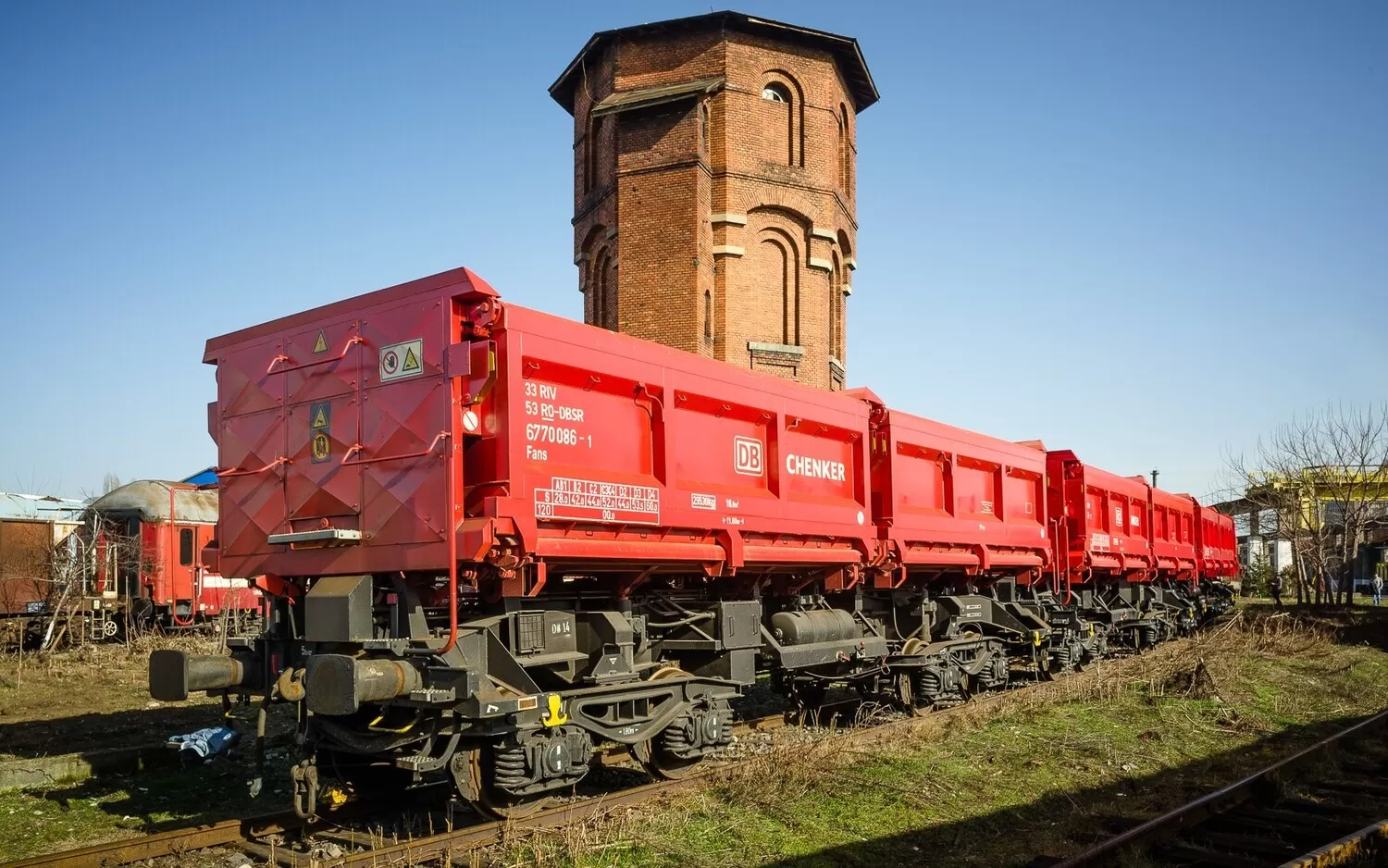

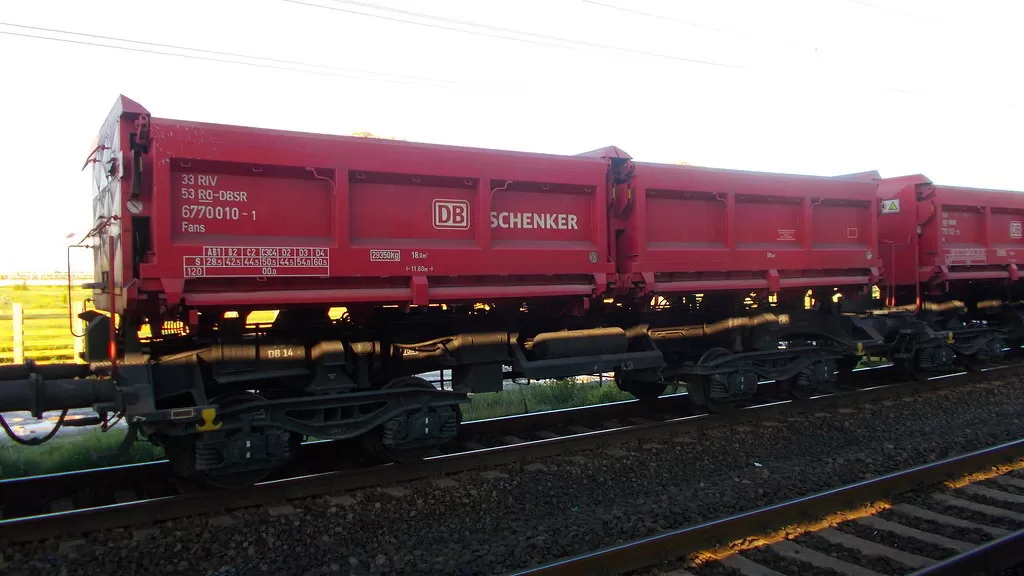

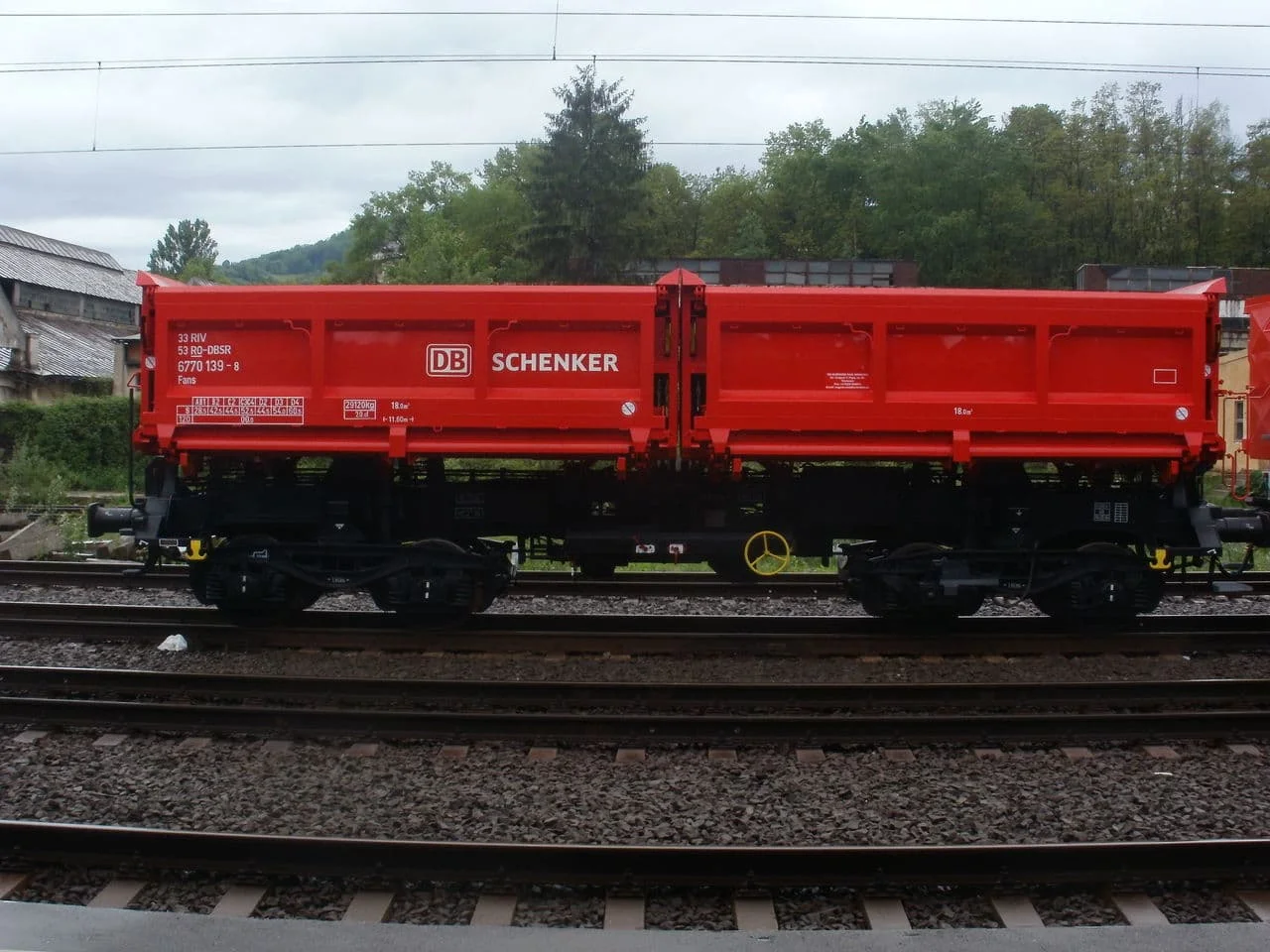

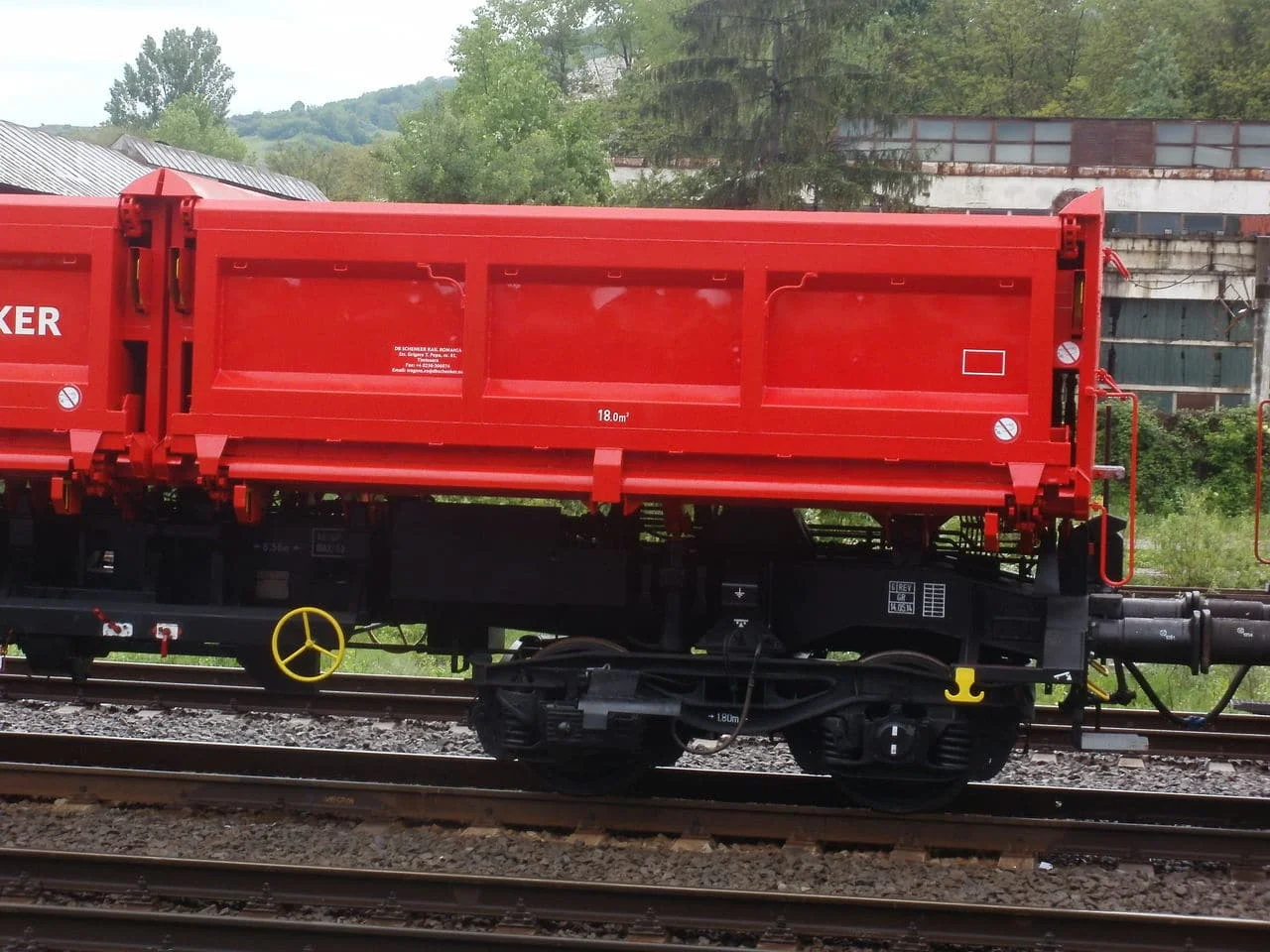

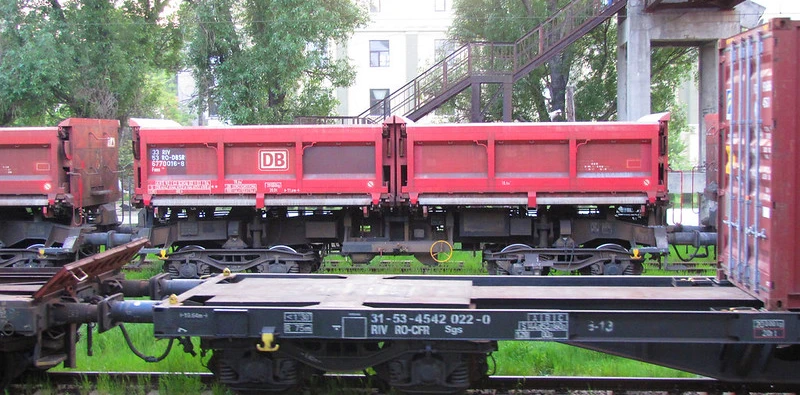

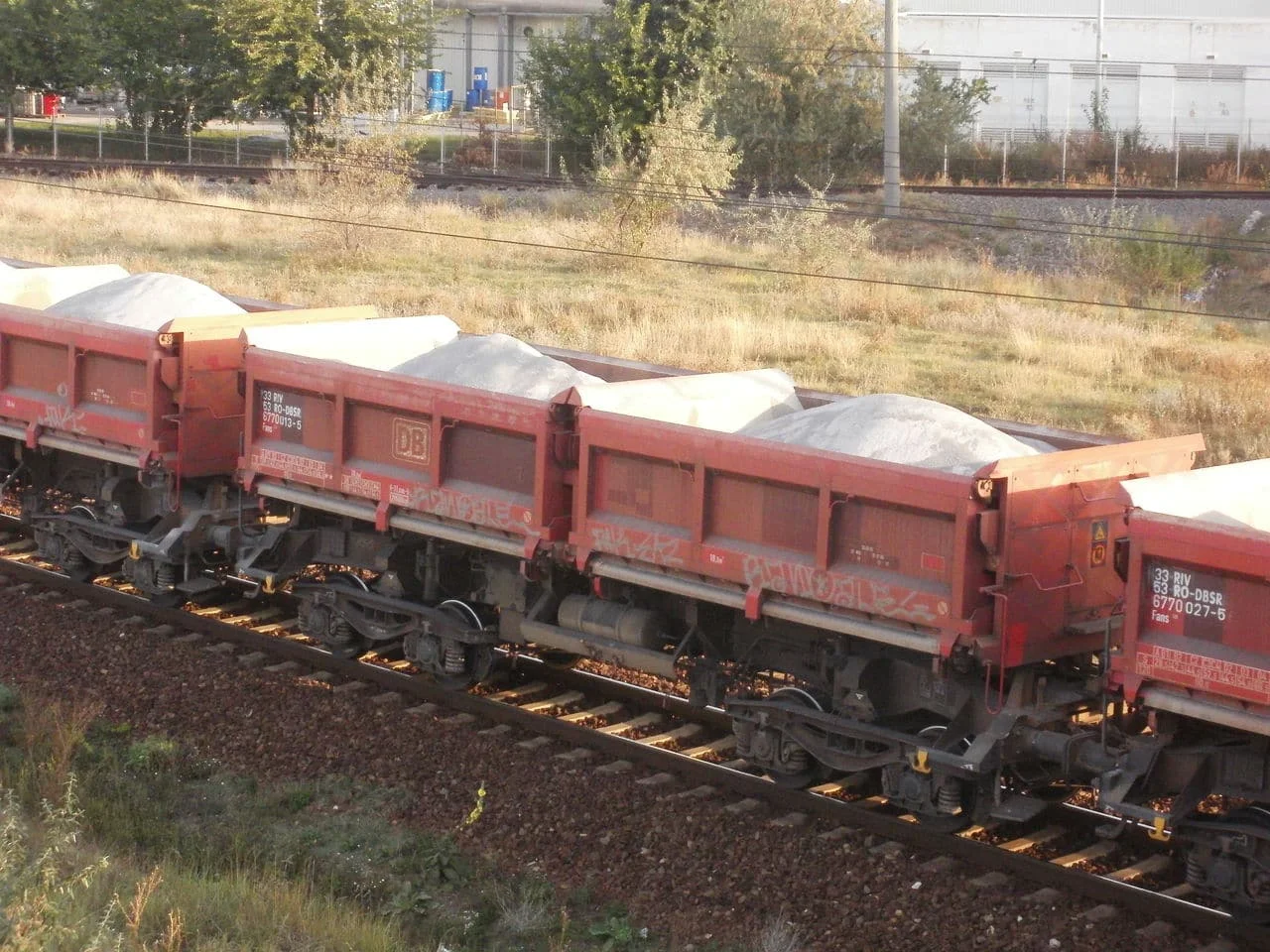

Fans

UIC / EVN numbering: 33 53 6770

Vehicle type: open wagon

Registration country: Romania

Railway companies: DBSR - SC Deutsche Bahn Cargo Romania SRL

Hide technical details

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

11'600 mm

Height (mm | over lowered pantograph):

3'512 mm

Tare weight (t):

29,5 t

Maximum load weight (t):

60,5 t

Bogies:

Y25 Lsd 1-629

Maximum speed (km/h):

100 km/h*
*loaded
120 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GP-A

Maximum load volume (m³):

2x 18 m³

Other equipments (video surveillance / internal passenger information system):

The electric batteries for the hydraulic tipping equipment are charged by an axle-driven generator during the run.
