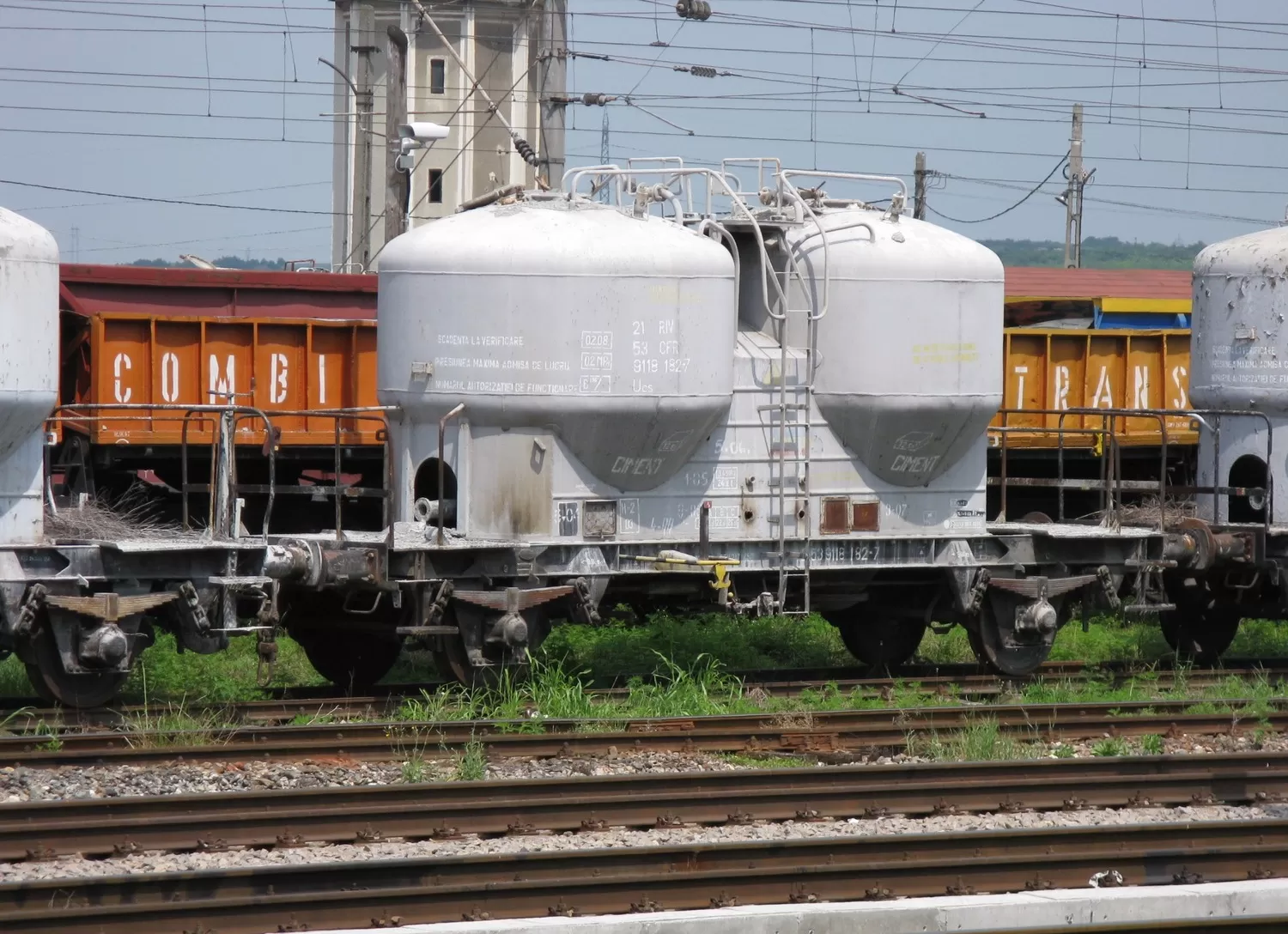

Source: Dr2005 - transport-in-comun.ro

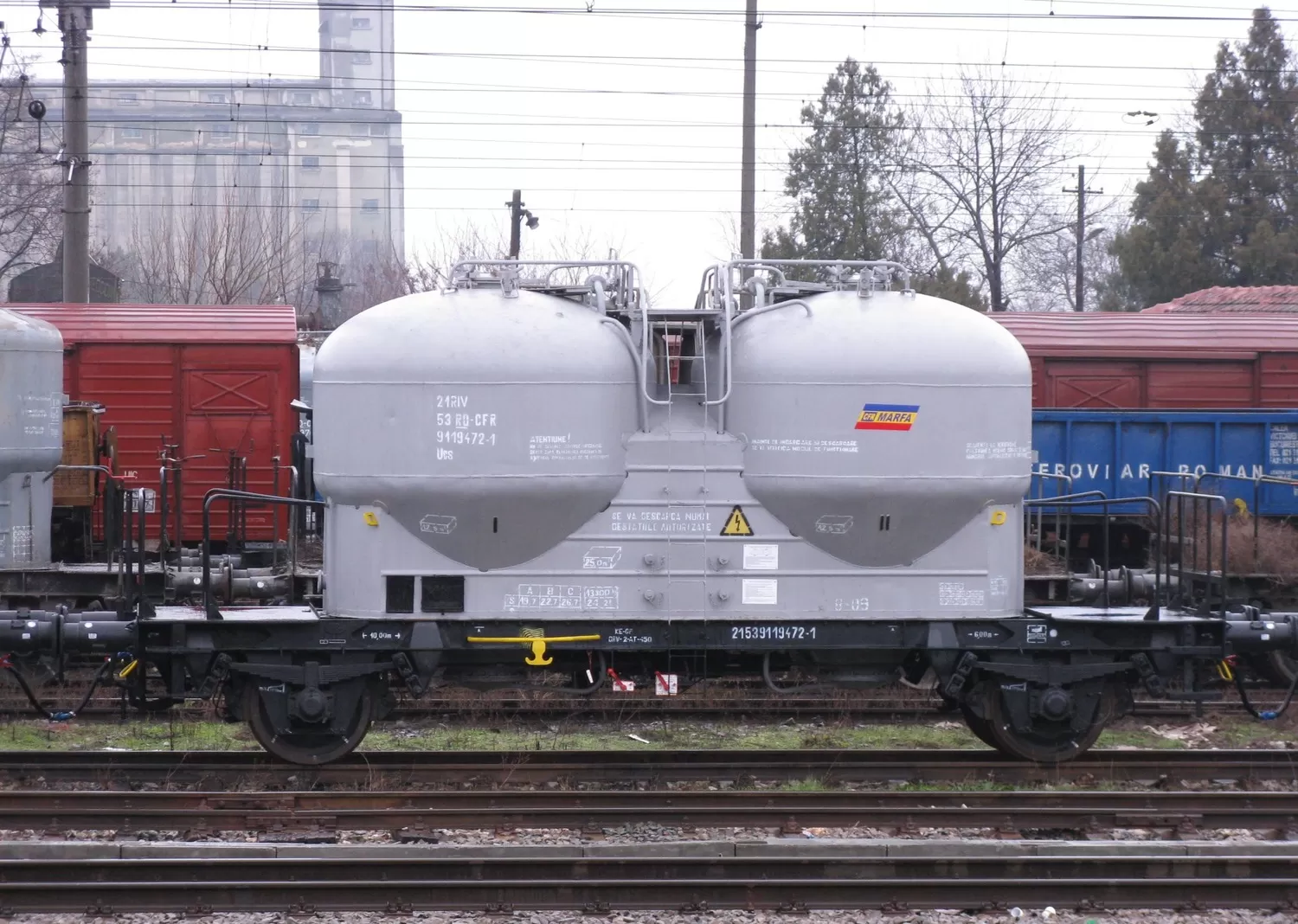

Source: Dr2005 - transport-in-comun.ro
Length over buffers (mm):
10'000 mm
Width (mm):
2'810 mm
Height (mm | over lowered pantograph):
4'205 mm
Wheelbase (mm | rigid / total):
6'000 mm
Minimum radius of curvature on open stretches (m):
150 m
Minimum radius of curvature on switching sections (m):
75 m
Tare weight (t):
13 t
Maximum load weight (t):
27 t
Wheel diameter (x'xxx,xx | mm | new / worn):
1'000 mm
Maximum speed (km/h):
120 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
KE-GP
Maximum load volume (m³):
25 m³
1987
The units from this series are built between 1987 and 1991.
Sources: http://www.cfrmarfa.com/index2.php?option=com_content&view=article&id=140:ucs&catid=47
Do you have additional informations regarding this vehicle?
Help us writing the history of Ucs (5) 9118 - 9119! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:
Latest update on the 20th of June 2021 at 18:46
Contributor(s): Tudor C.
