Es / Esx

Also known as: Elo / Es-x / I^SF(V)(W)

UIC / EVN numbering: 21 53 5111 / 01 53 5520 / 01 53 5521 / 01 53 5522 / 01 53 5523 / 01 53 5530 / 21 53 5530 / 42 53 5530 / 01 53 5531 / 21 53 5531 / 01 53 5532 / 21 53 5534

Vehicle type: freight wagon

Registration country: Romania

Railway companies: CFR - Caile Ferate Române CFR Marfa / CFR Marfă - Societatea Națională de Transport Feroviar de Marfă (CFR Marfă)

Hide technical details

In service:

from 1964

Built by:

MEVA - Wagon and locomotive repair company Drobeta Turnu Severin

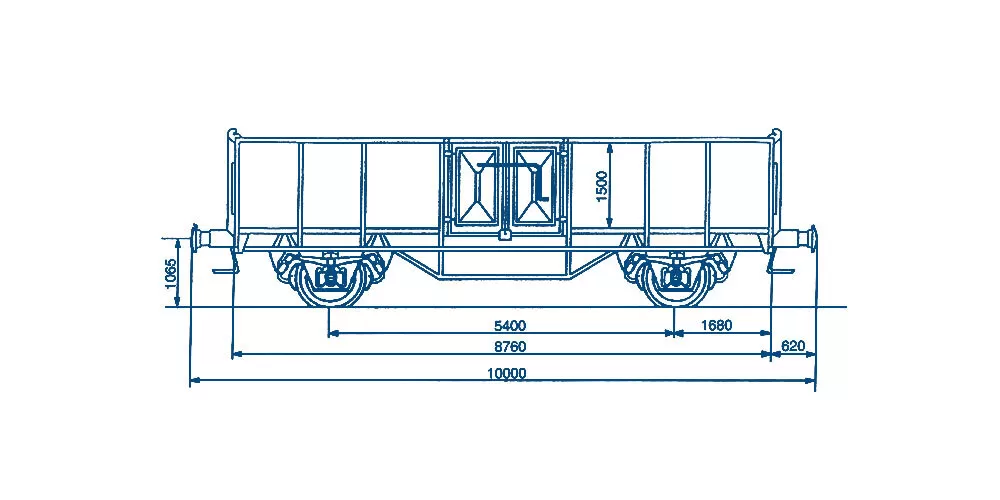

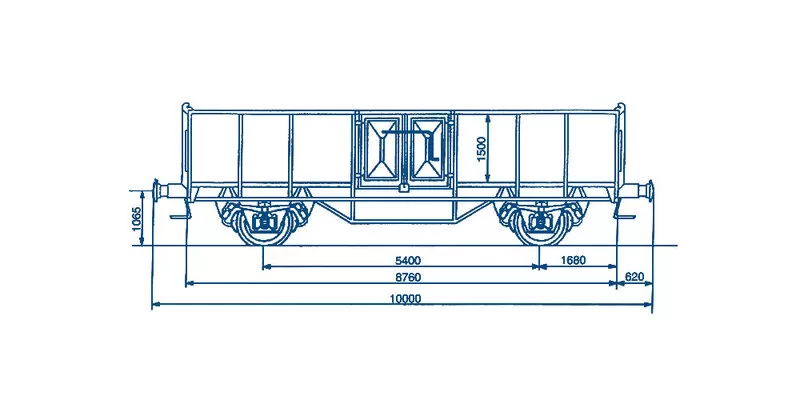

Length over buffers (mm):

10'000 mm

Width (mm):

2'760 mm

Wheelbase (mm | rigid / total):

5'400 mm

Tare weight (t):

11 t

Wheel diameter (x'xxx,xx | mm | new / worn):

1'000 mm

Maximum speed (km/h):

100 km/h

Usable volume (m³):

36 m³

Display registration numbers

Vehicle's history

Add content

Report an error?

1964

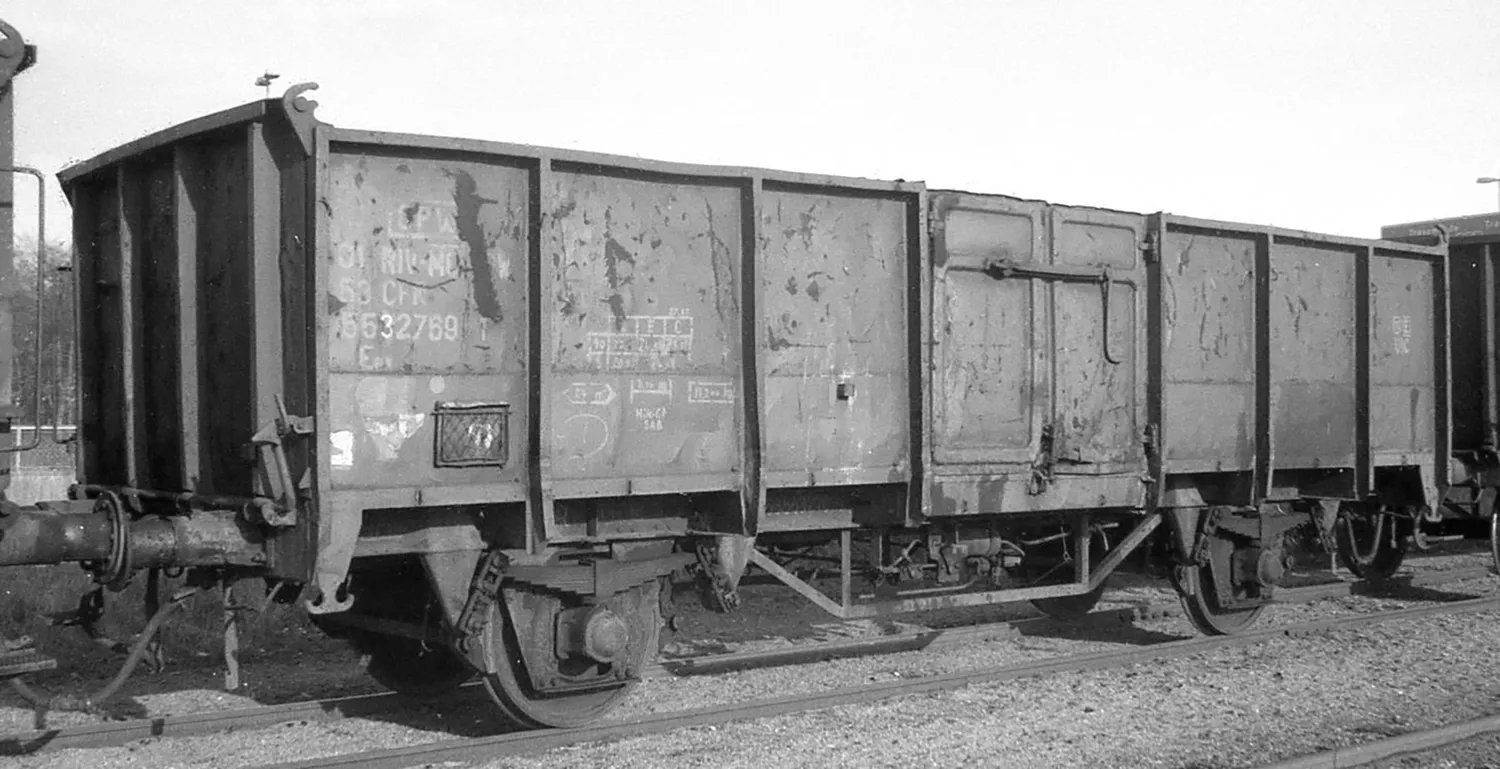

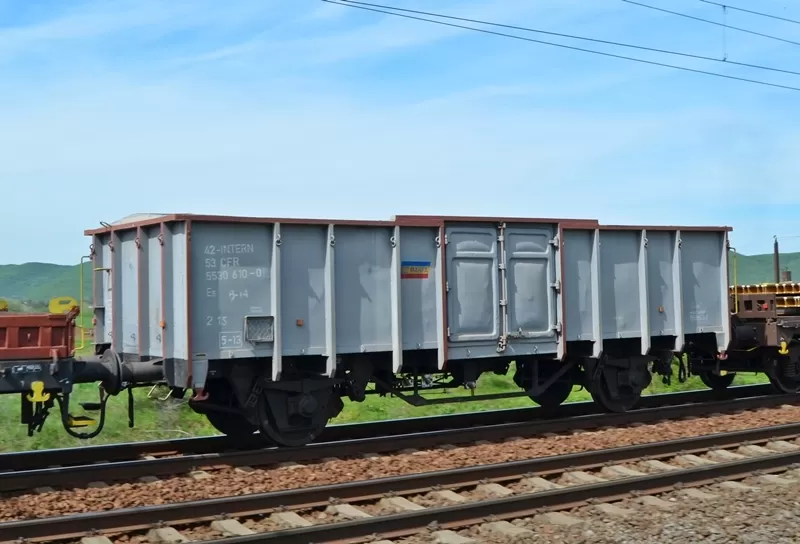

Built between 1964 and 1965, this type is an open freight car, with two axles, intended for the transport of goods that do not require weather protection, such as - rolled products, machinery, scrap iron, logs or lumber, stone blocks, bulk products with large granulation, etc.

The car can be unloaded through the side doors with an opening of 1.8m located on each side of the car or by front tipping, through the mobile front walls.

Sources: https://modelist.ro/vagonul-esx/
