Class 498.0 "Albatros"
Vehicle type:
Registration country:
Railway companies:
In service:
from 1946
Era:
III
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
1′D2′
Length over buffers (mm):
24'950 mm
Wheelbase (mm | rigid / total):
5'790 mm*
*rigid
12'550 mm*
*total
21'120 mm*
*with tender
*rigid
12'550 mm*
*total
21'120 mm*
*with tender
Tare weight (t):
96,3 t
Service weight (t):
106,1 t
175,0 t*
*with tender
175,0 t*
*with tender
Cylinders:
3x
Cylinders diameter (mm):
500 mm
Pistons stroke (mm):
680 mm
Number of heating pipes:
134
Heating pipe length (mm):
6'000 mm
Surface of superheater (m²):
73,8 m²
Steam pressure (Atm. / bar):
16 bar
Coal capacity (kg / m³):
14,9 m³
Water tank capacity (kg / l / m³):
26 m³
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'830 mm
Leading wheel diameter (x'xxx,xx | mm | new / worn):
880 mm
Trailing wheel diameter (x'xxx,xx | mm | new / worn):
1'308 mm
Maximum speed (km/h):
120 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
Handbrake
Compressed air brake
Westinghouse/Bozic G/P
Compressed air brake
Westinghouse/Bozic G/P
1946
40x units are built between 1946 and 1947 for express services
between the main cities.
1952
The further development of this series gave birth to Class 498.1 steam locomotives, the
highlight of steam locomotive construction in Czechoslovakia and
also throughout Europe.
1972
Only 4x units are still in use at the Plzeň depot.
1976

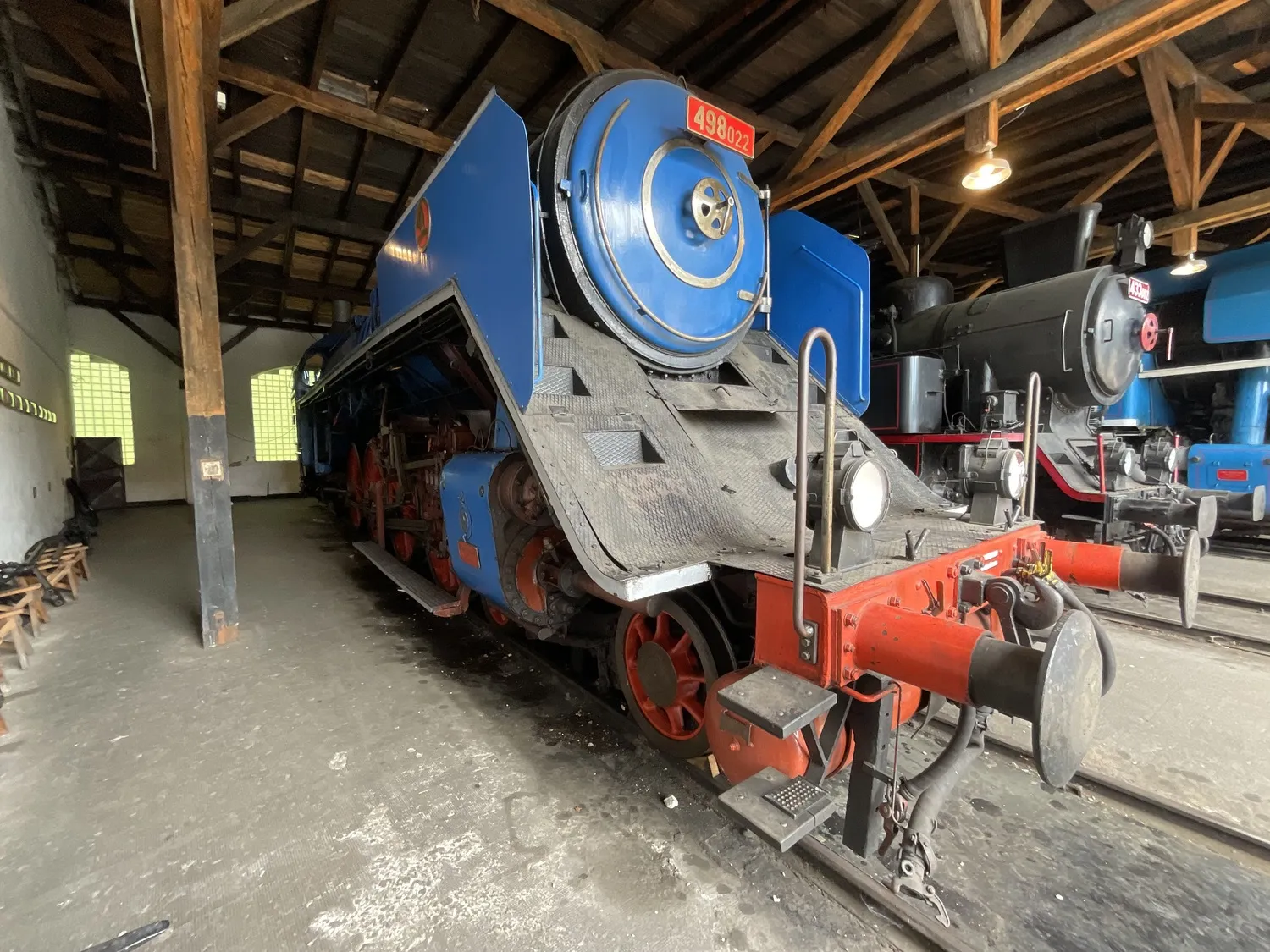

The last unit, registration 498.022, is removed from regular
service and is preserved as a museum locomotive.
