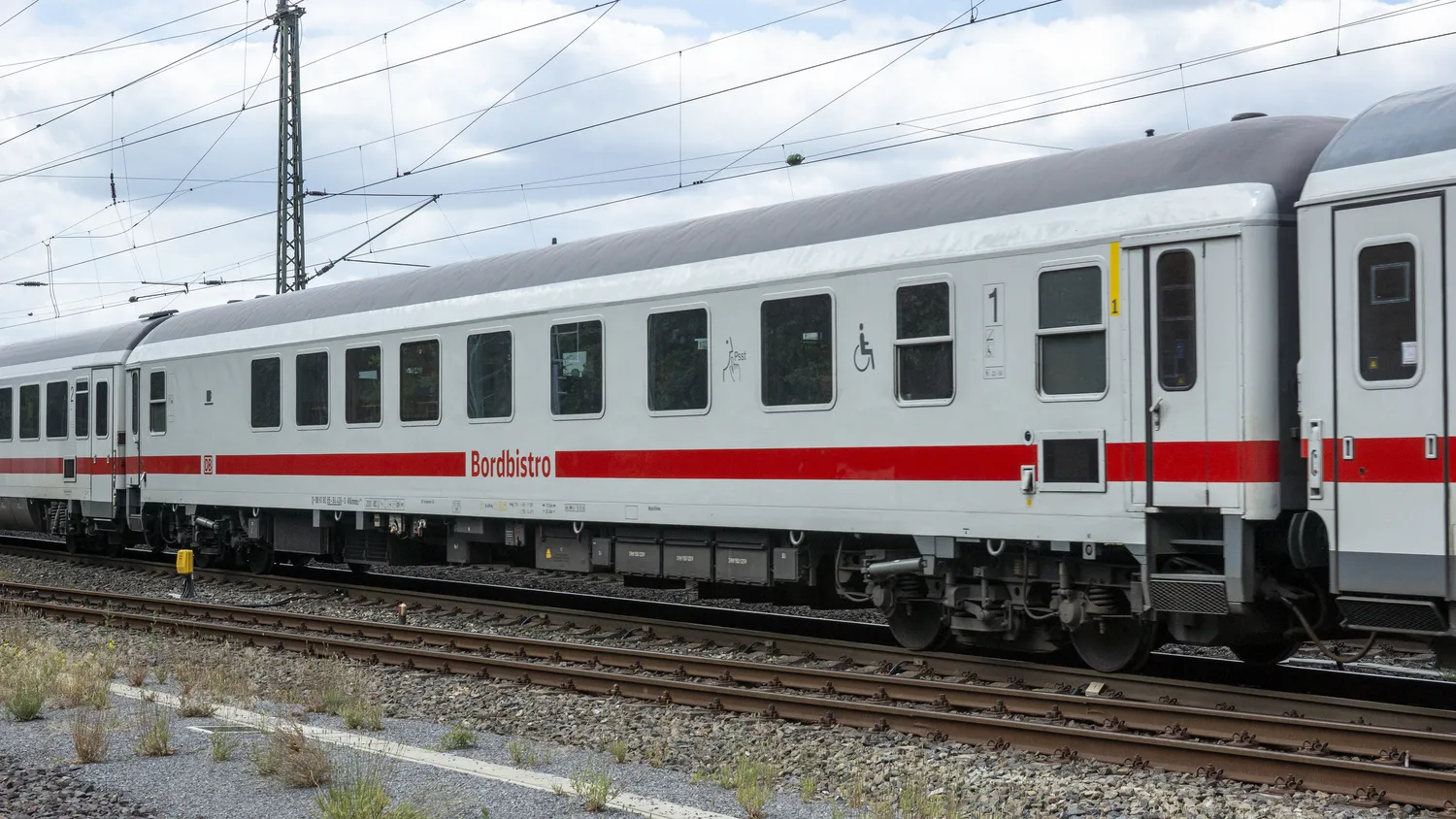

Source: Albert Koch - flickr.com
ARkimmbz288.4
UIC / EVN numbering:
61 80 85-94Vehicle type:
Registration country:
Railway companies:
Era:
VI
Gauge:
Standard gauge (1'435 mm)
Length over buffers (mm):
26'400 mm
Width (mm):
2'825 mm
Height (mm | over lowered pantograph):
4'050 mm
Wheelbase (distance between bogies centers) (mm):
19'000 mm
Tare weight (t):
51 t
Bogies:
Minden-Deutz 367
Maximum speed (km/h):
200 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
KE-GPR-Mg (D) [ep] [NBÜ]
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
18x 1st class seats*
*1x 1st class compartment, 1x 1st class open area, 1x service compartment, 1x dining room
*1x 1st class compartment, 1x 1st class open area, 1x service compartment, 1x dining room
Do you have additional informations regarding this vehicle?
Help us writing the history of ARkimmbz288.4! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:
Discussion forum
ARkimmbz288.4 miniature models:
DB - Intercity (IC) passenger coaches set
Manufacturer: Roco
Article number: 6200020
Released: April 2024
