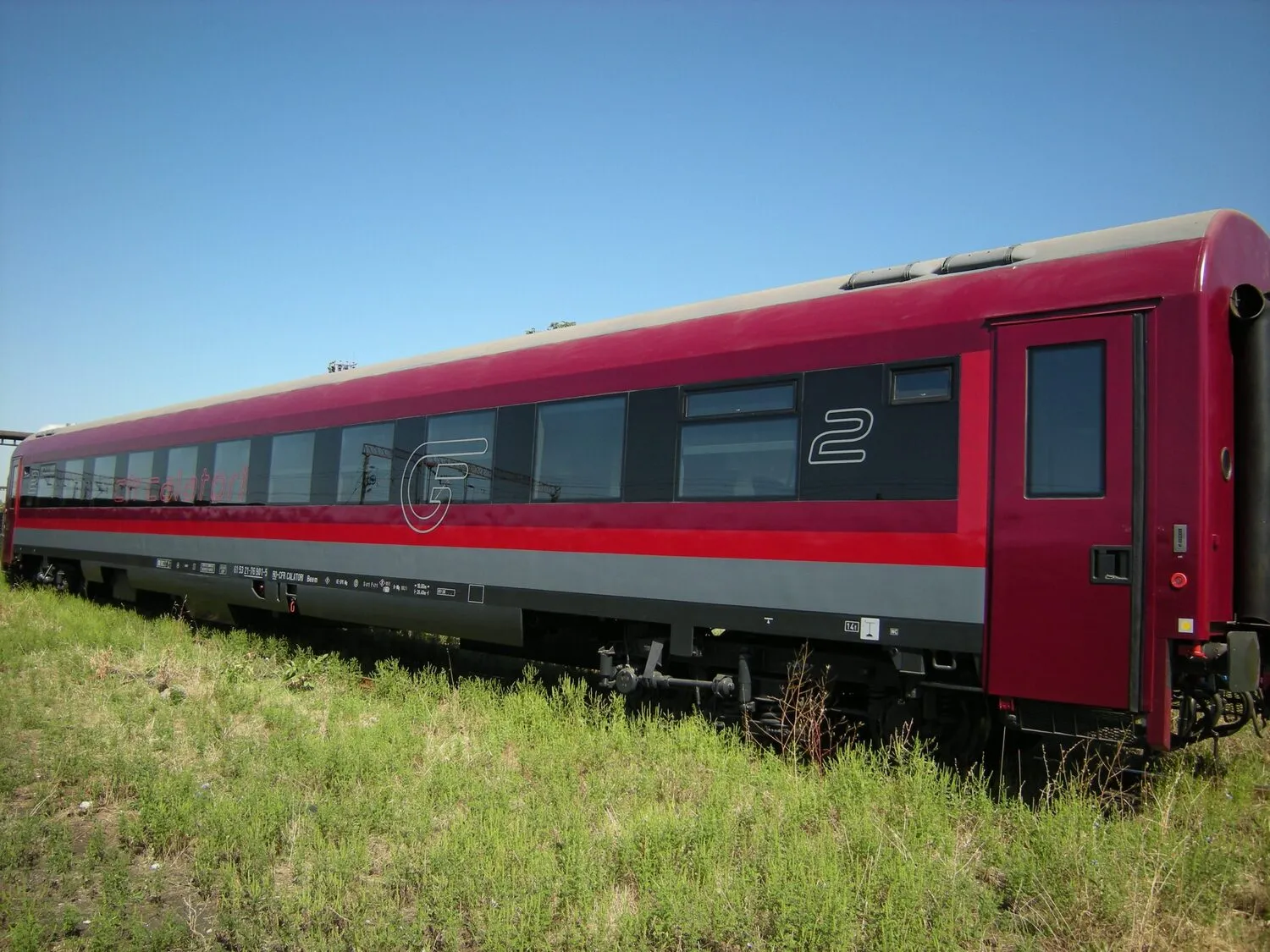

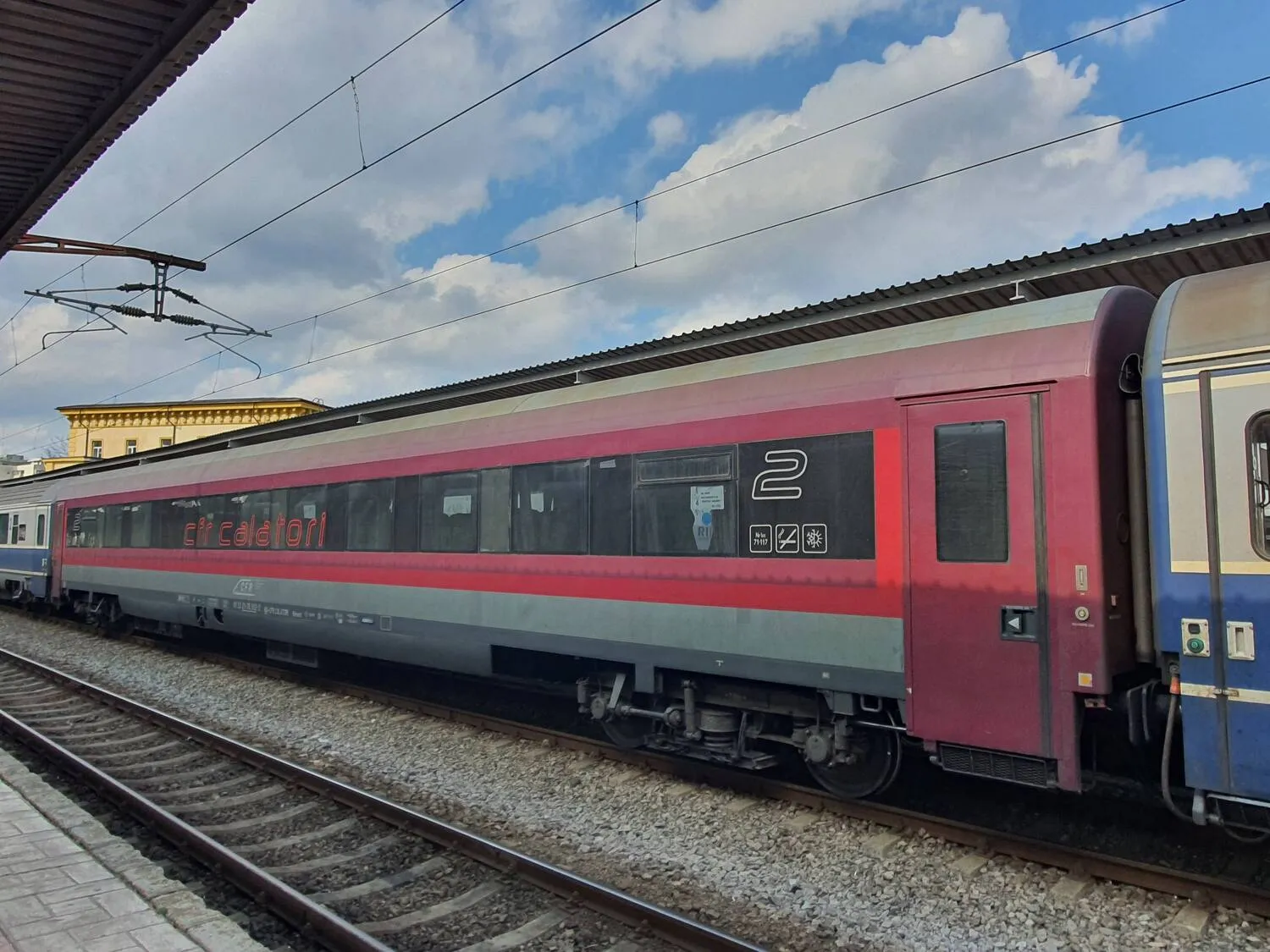

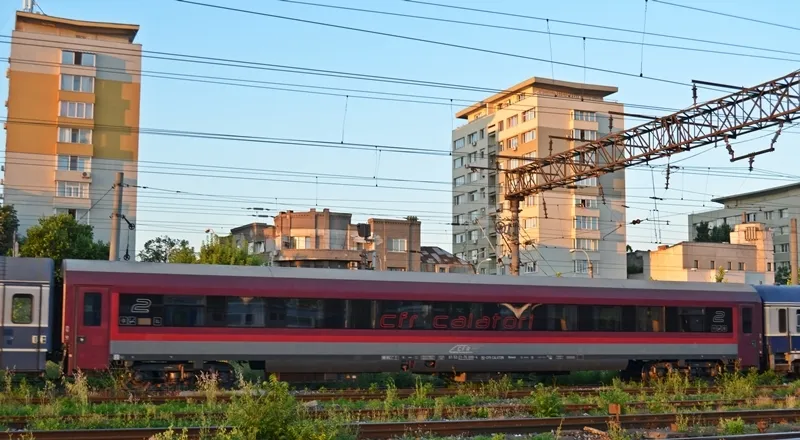

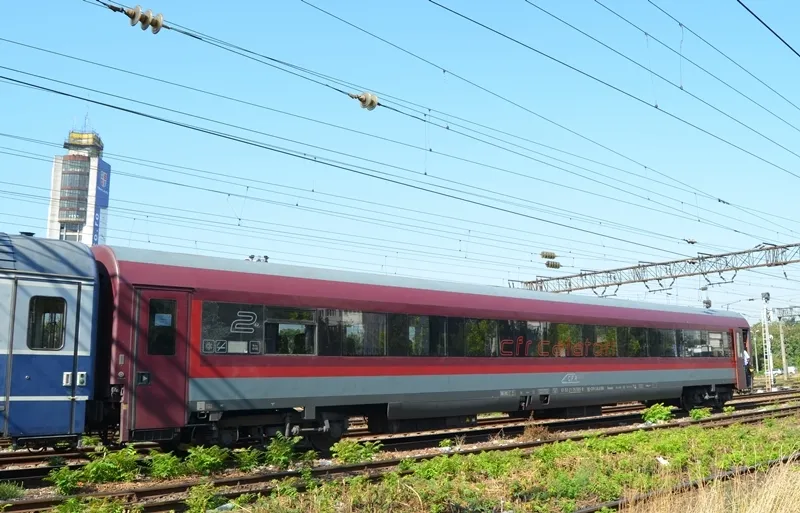

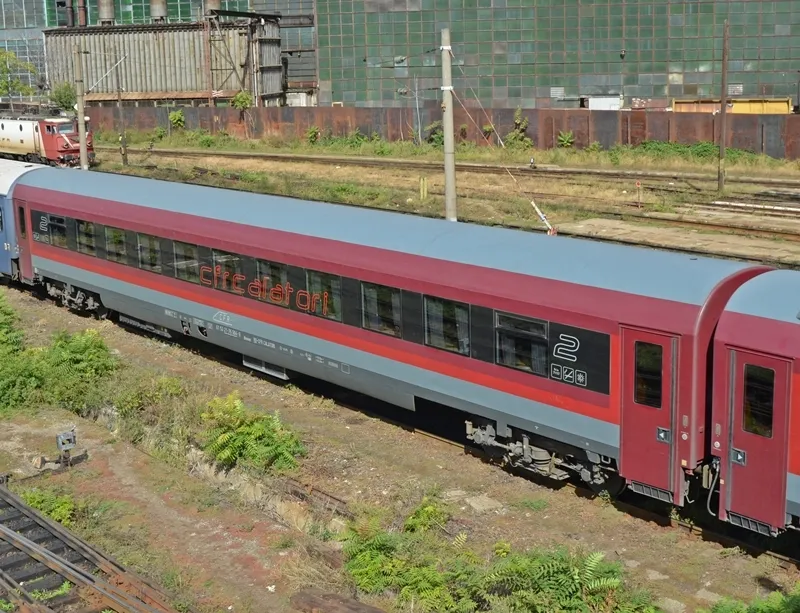

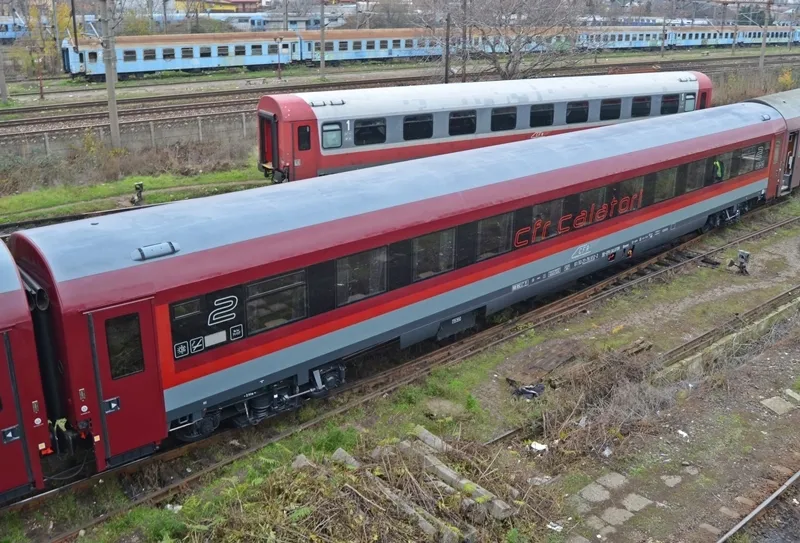

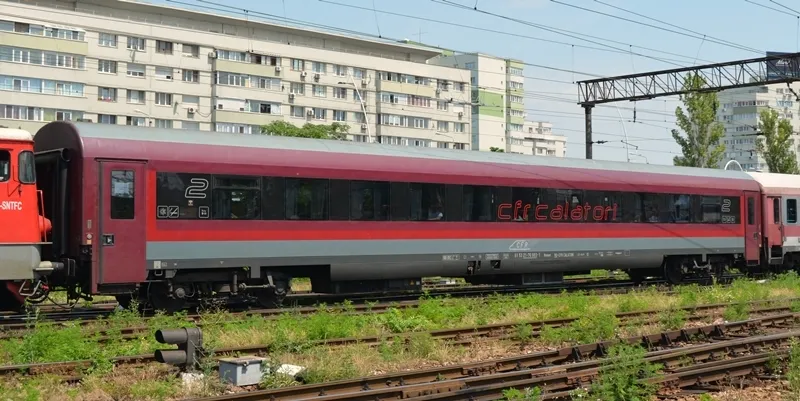

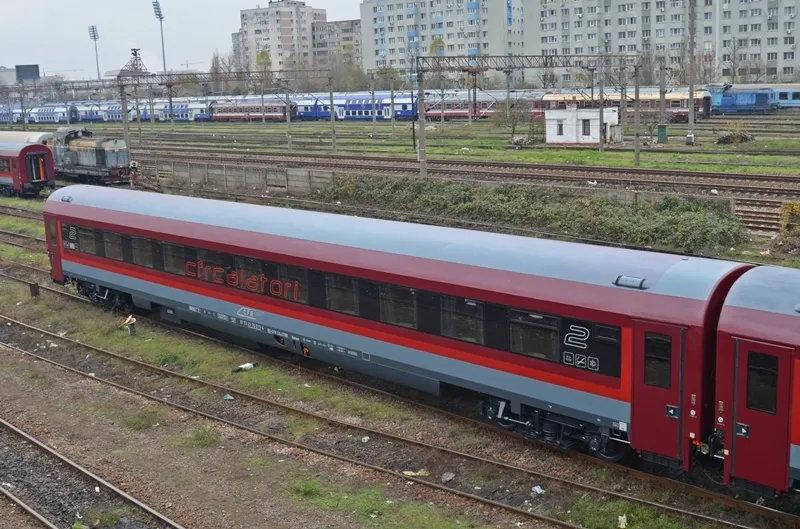

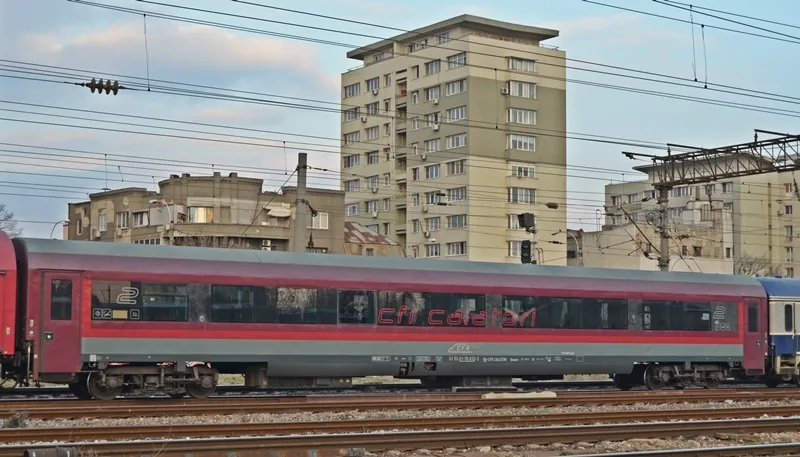

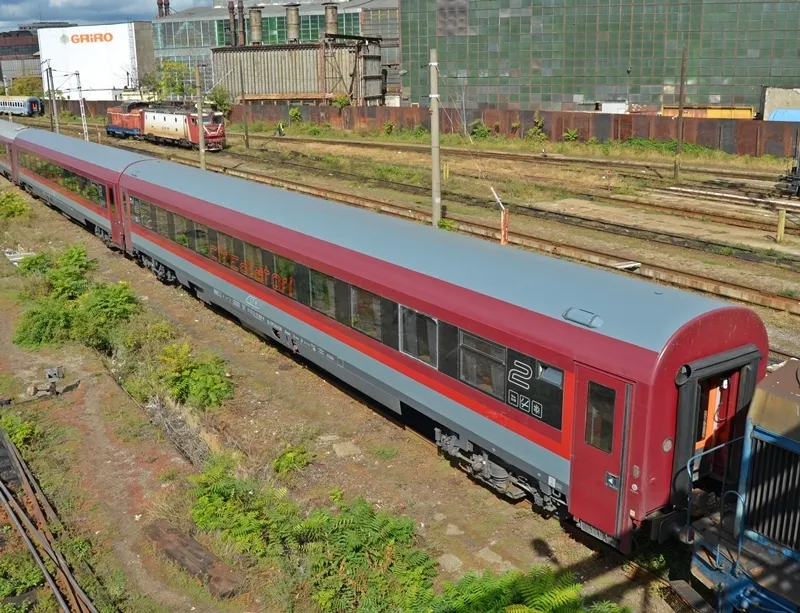

Bmeet / Beem 21-76 900 - 914

Source: forum.metrouusor.com

Also known as:

Bmeet 21-96

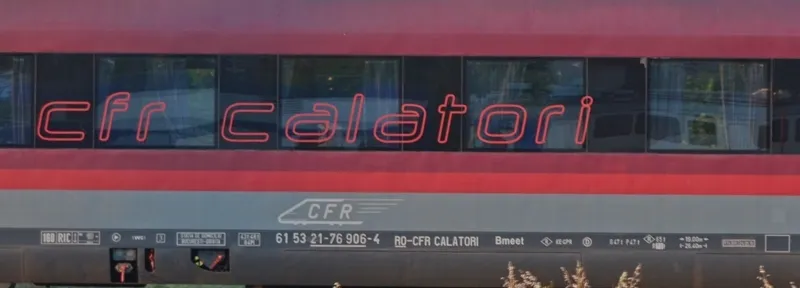

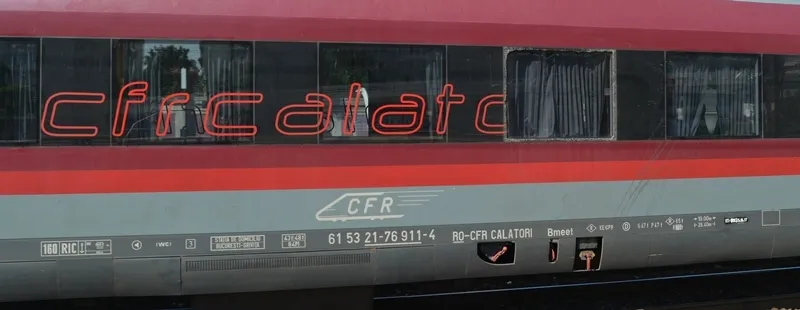

UIC / EVN numbering:

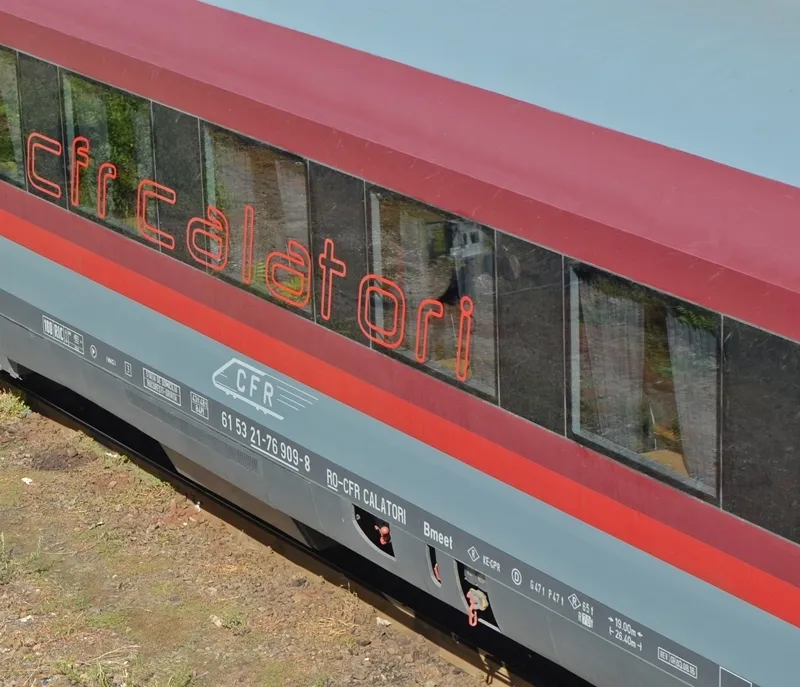

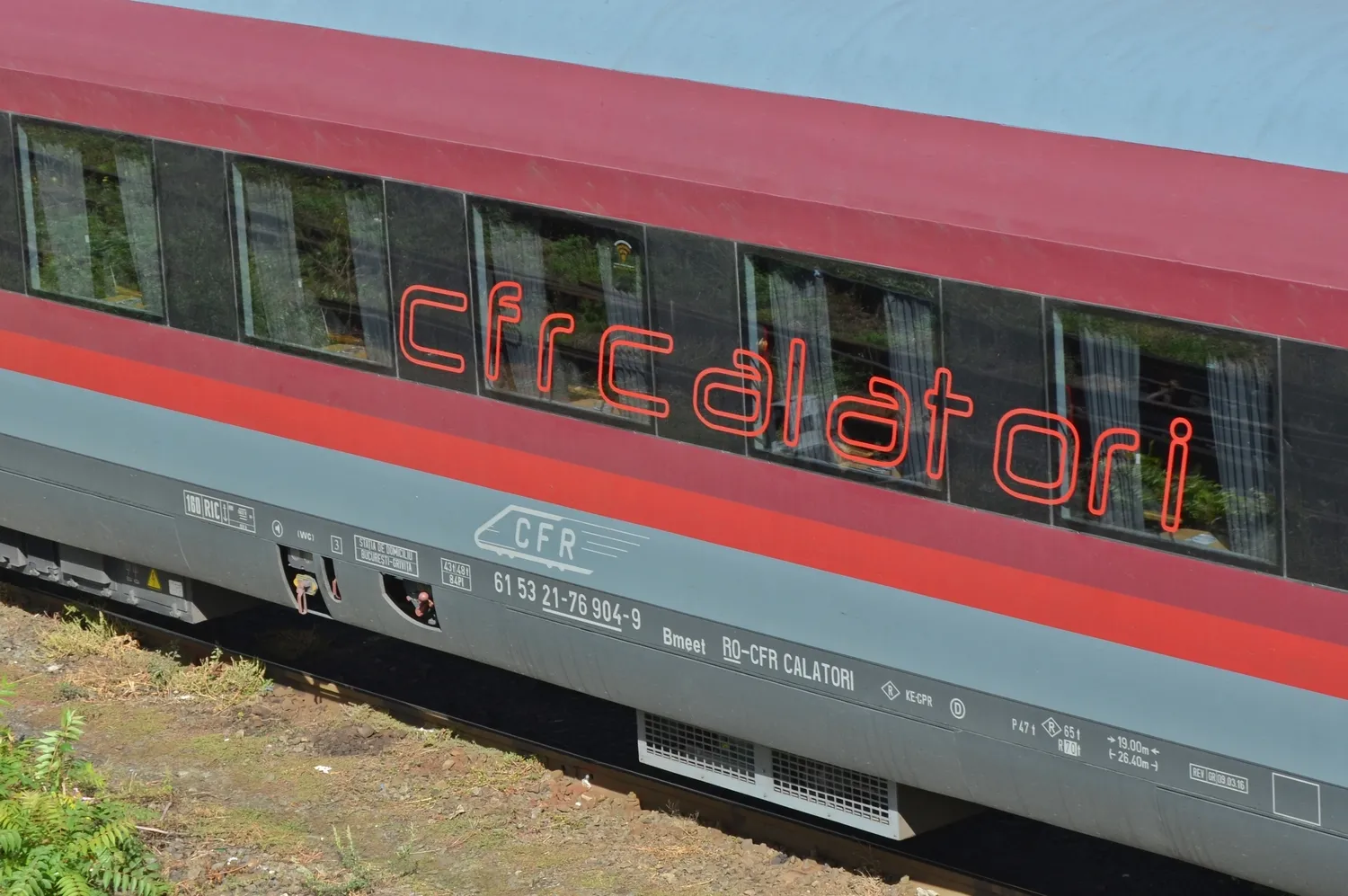

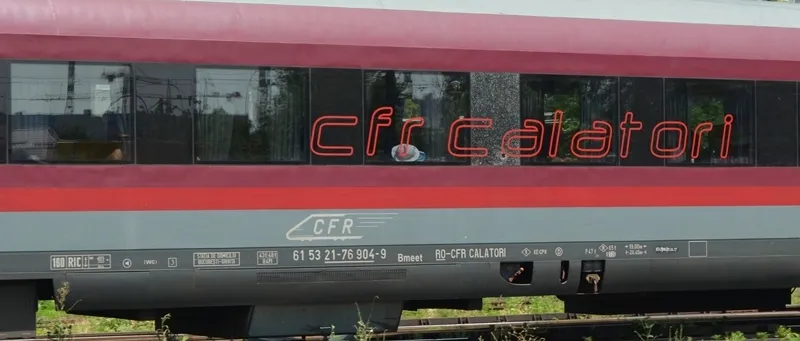

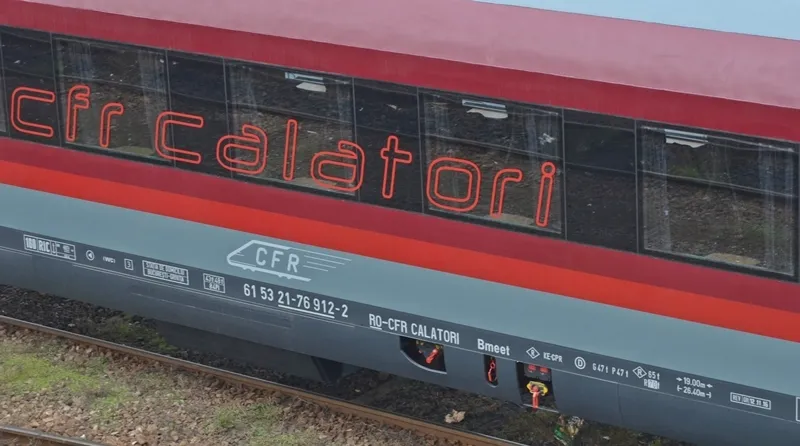

61 53 21-7661 53 21-96

Vehicle type:

Regular passenger coach

Registration country:

Romania

Railway companies:

SNTFC - Societatea Naţională de Transport Feroviar de Călători (CFR Călători)

Hide technical details

In service:

from 2011

Era:

Built by:

Atelierele CFR Grivita

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

26'400 mm

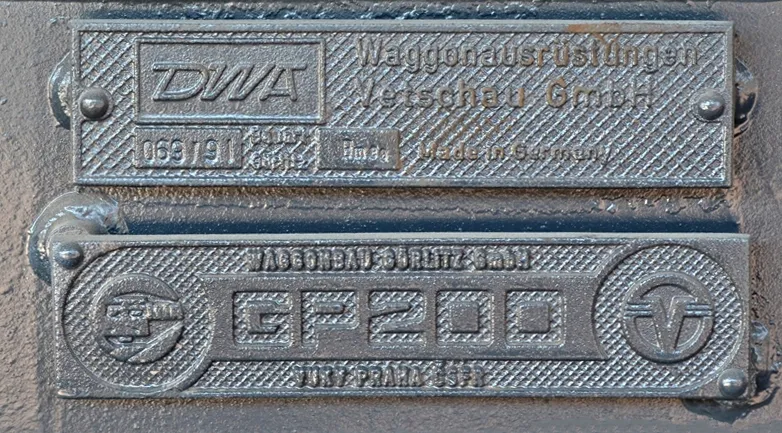

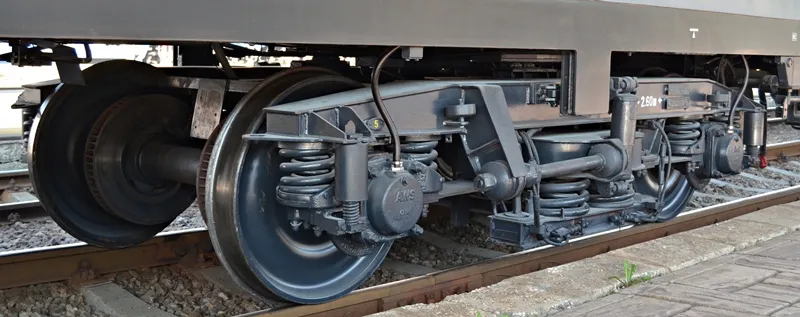

Bogies:

GP200S

Maximum speed (km/h):

160 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR(D)
KE-PR-Mg(D)

Access doors (electro-pneumatic - sliding doors / folding doors):

Louvoyant-sliding with electro-pneumatic closing, opening and blocking for speed more than 5 Km/h*
*according to UIC560

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

84x 2nd class seats

Toilets (direct discharge toilets / closed circuit toilets):

2 water tanks;
2 retention tanks;
2 WC cabins provided with vacuuming units.

Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):

Single-voltage static converter SSVC 13 type;
Input Voltage: 1500 V/50 Hz;
Output Voltage: 3×400 V/50 Hz, 230 V/50 Hz and 24 Vcc.

Air conditioning (yes / no):

ventilation, heating, cooling - complex, totally automatic, with ecological Freon type R134a or R407c*
*according to UIC 553

Other equipments (video surveillance / internal passenger information system):

Passenger information: displays located outside and inside the wagons to indicate the route via GPS system;
Video surveillance CCVT type;
Centralized diagnosis system for the main installations of the coach.

Display registration numbers

Vehicle's history

Add content

Report an error?

2011

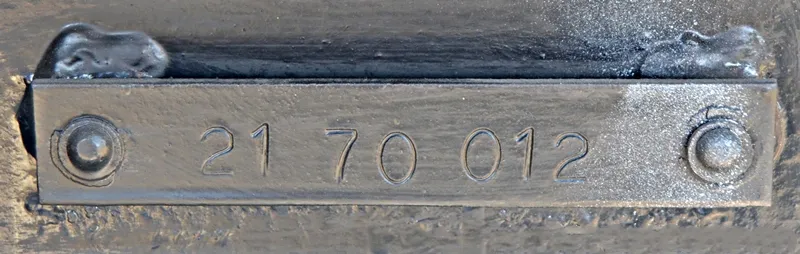

The first unit from this series is modernized in 2011 by Atelierele CFR Grivita from a Bmee 21-80 passenger coach. Previously, Atelierele CFR Grivita had modernized DWA 21-80 coaches, which were classified under Series 21-70, with a total of 11x vehicles converted. The initial plan for this modernized unit was to classify it as 21-70 012 . However, significant differences were noted between the two modernization projects, leading to its classification in a new series: 21-96 001 during its first public presentation in 2011.

The modernized passenger coach featured initially a maximum operating speed of 200 km/h at the time of its introduction. A few years later, this speed is reduced to 160 km/h. Thus, it is re-classified as 21-76 001.

As of June 2014, this unit was still pending purchase by CFR Calatori.

Sources: https://forum.metrouusor.com/ViewTopic?TopicId=3279&PageNum=1

2017

By the end of 2017, a total of 15x units from this series are acquired by CFR Calatori.

From 2018, further modernization of Bmee 21-80 passenger coaches will be registered in the Bmeet 21-76.95 series.

Sources: https://forum.metrouusor.com/ViewTopic?TopicId=3279&PageNum=1

2022

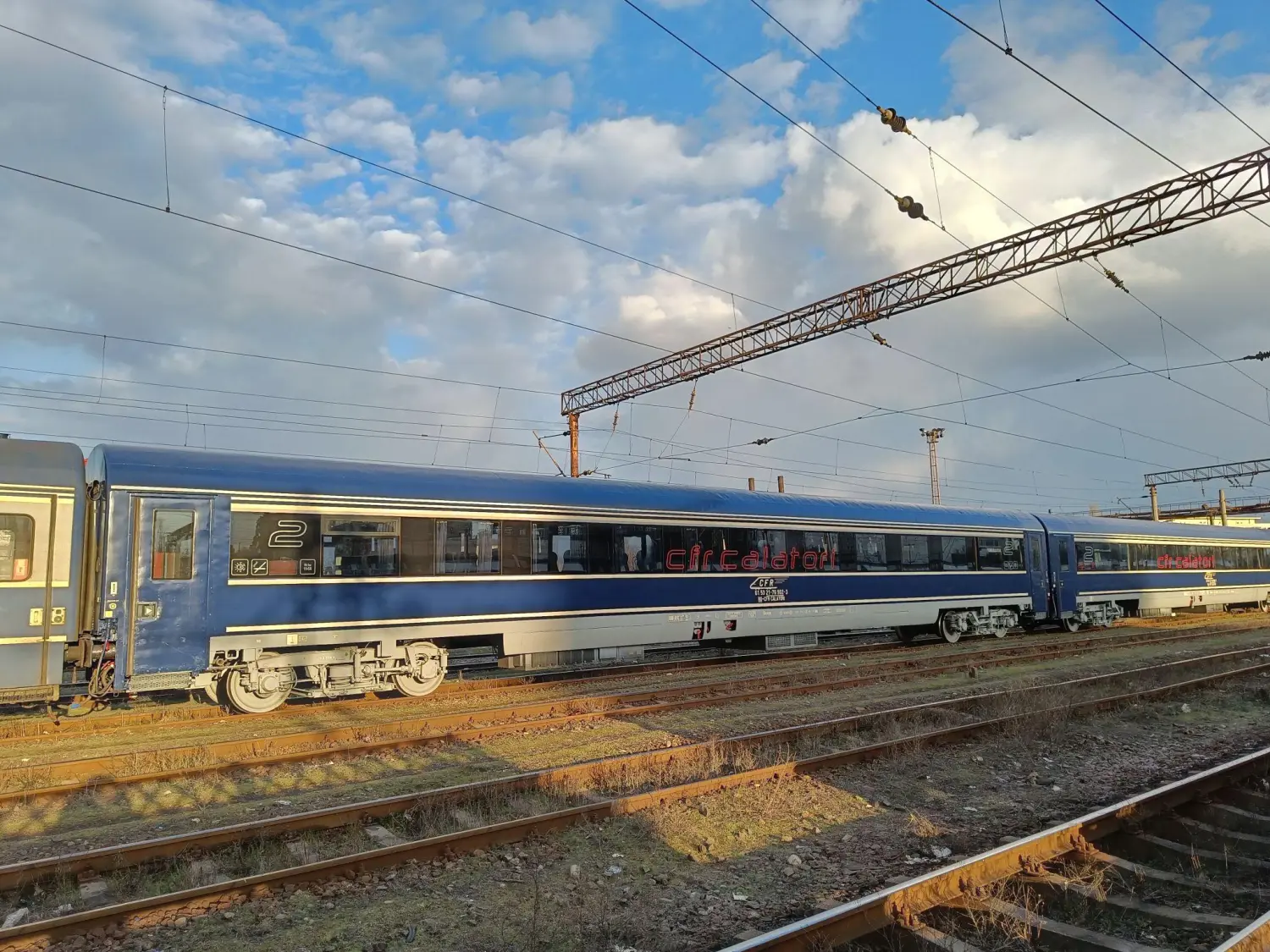

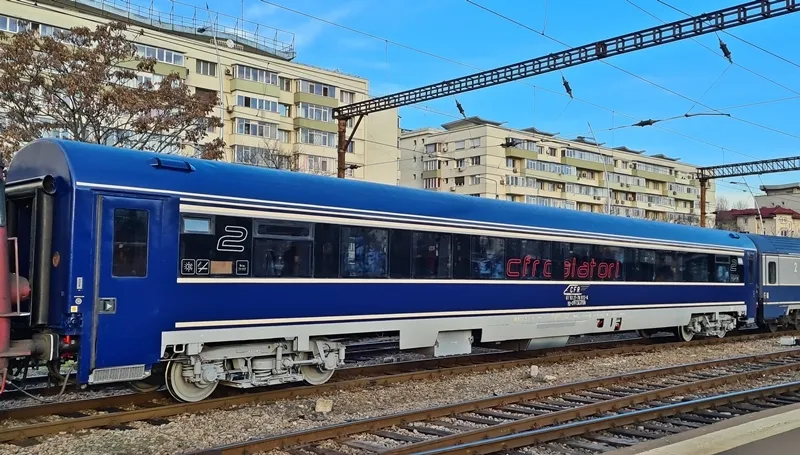

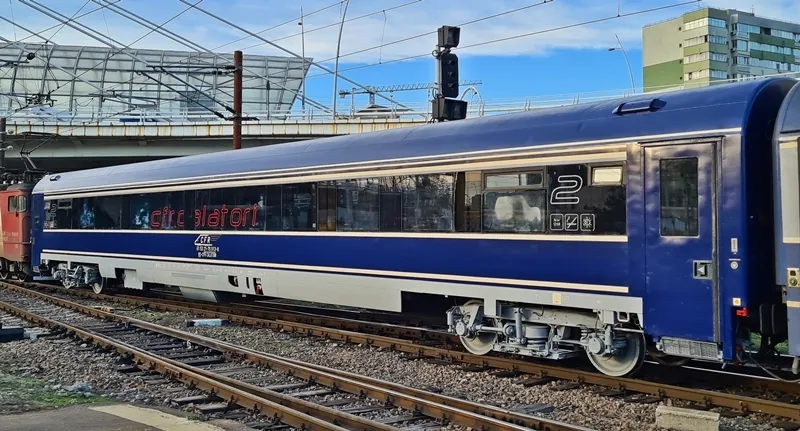

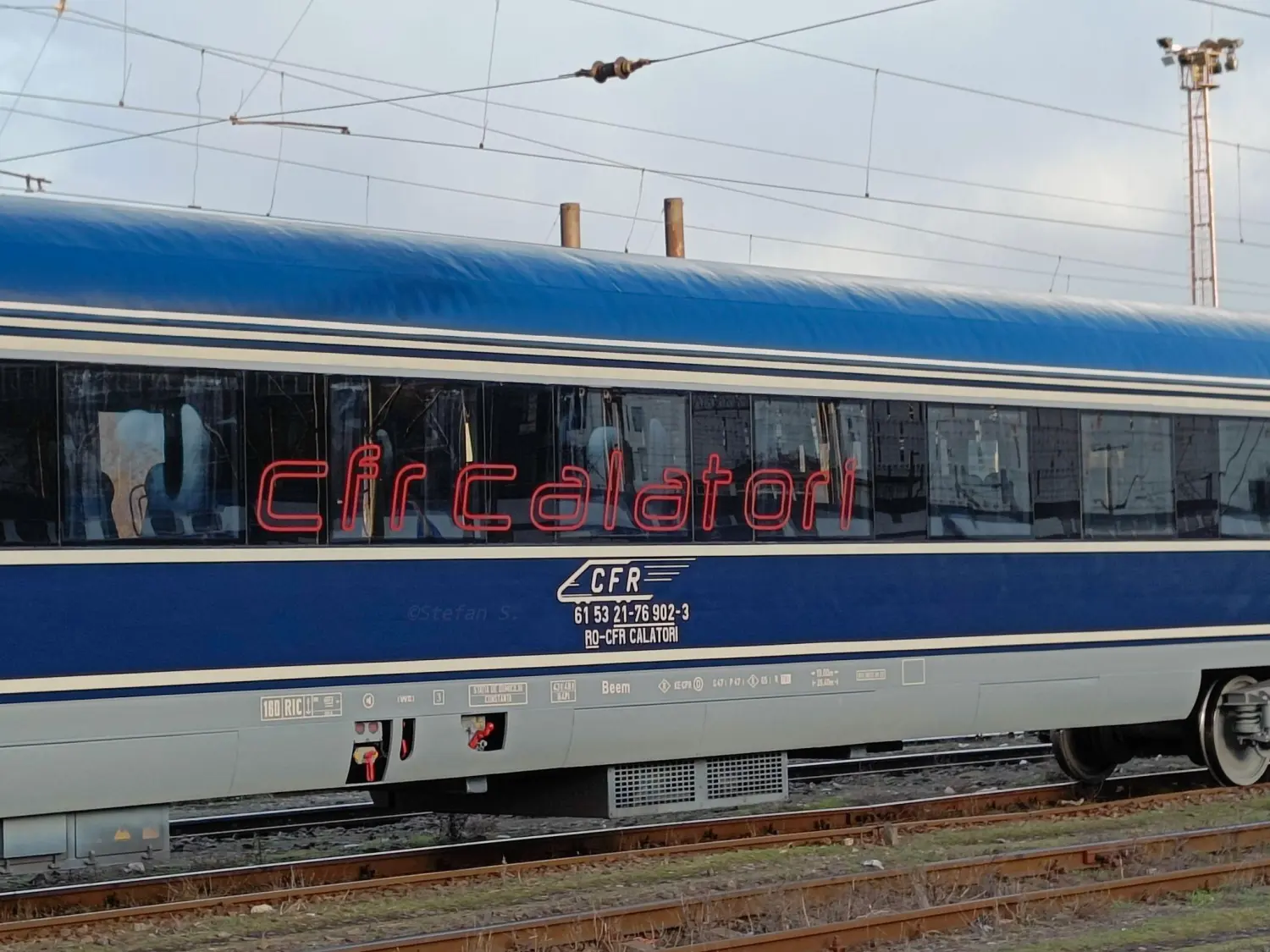

From 2022, these units are also painted in the EXPRESS blue livery.

Sources: https://forum.metrouusor.com/ViewTopic?TopicId=3279&PageNum=7
