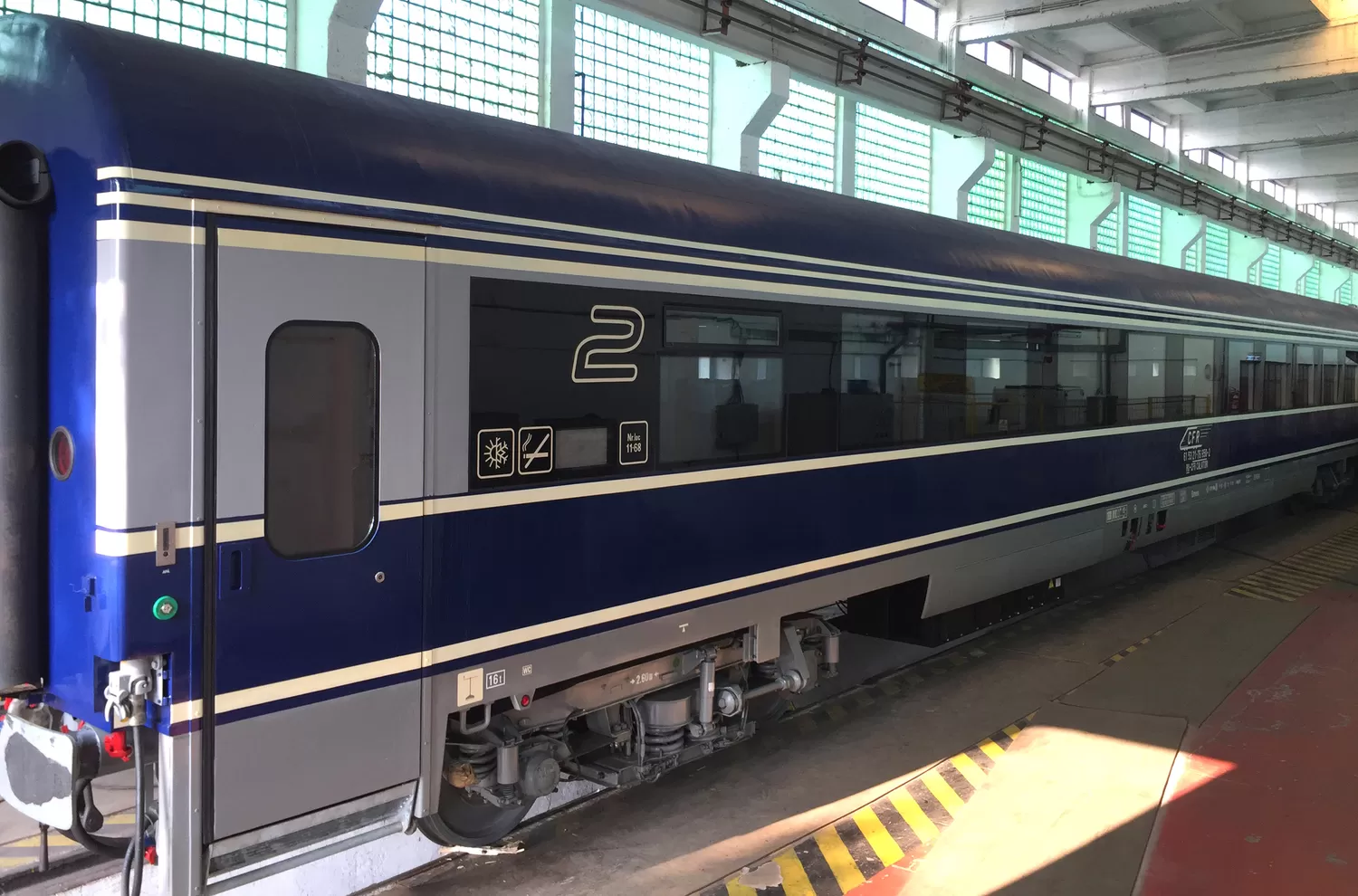

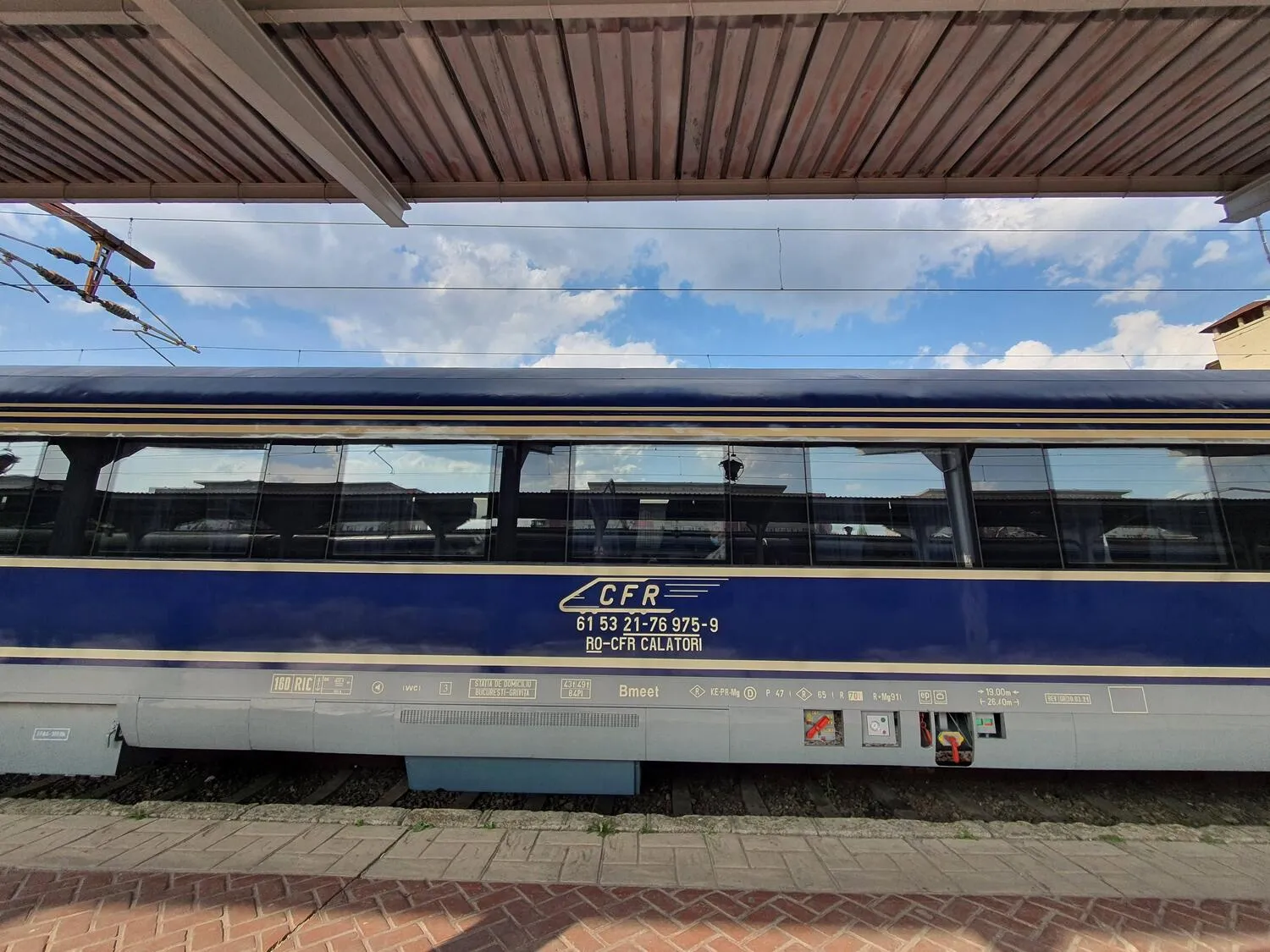

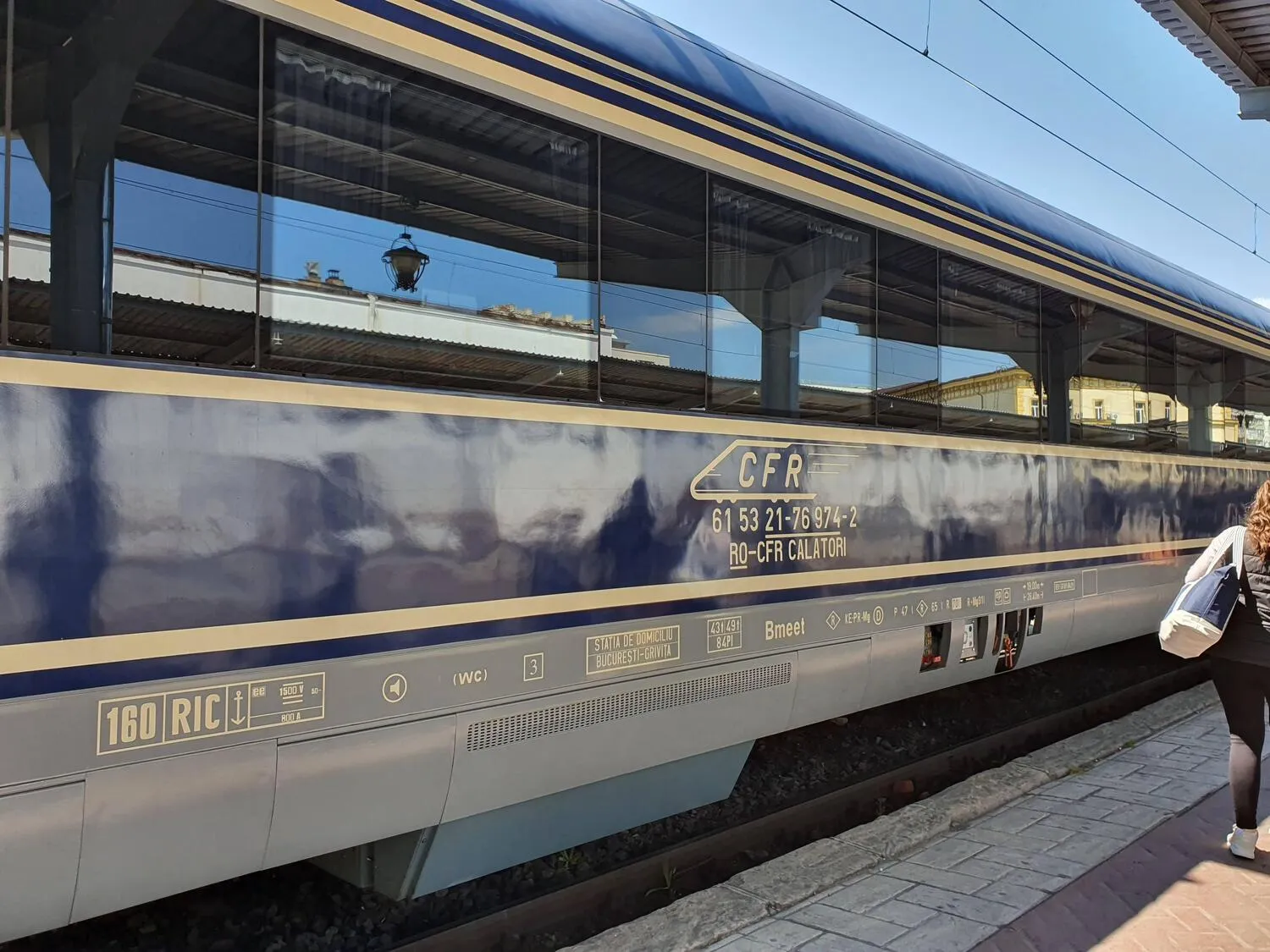

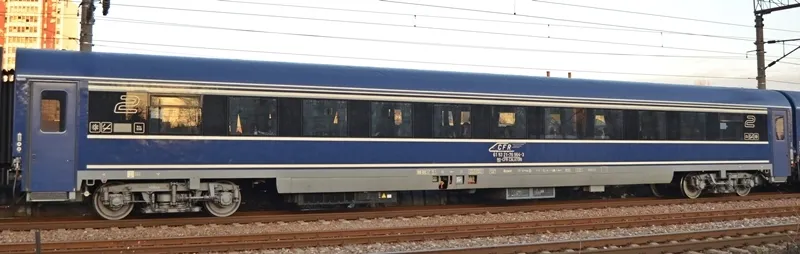

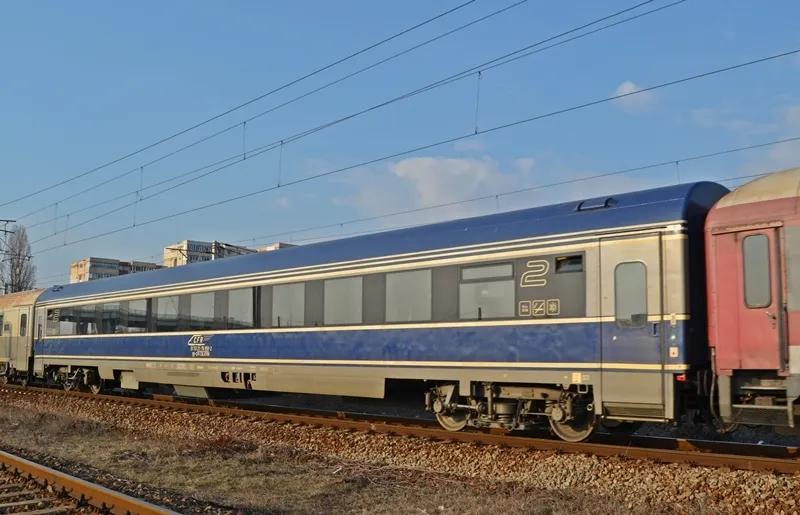

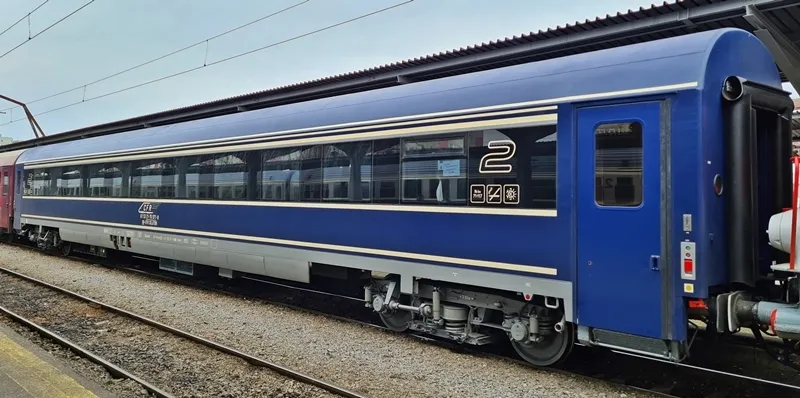

Bmeet 21-76 950 - 980

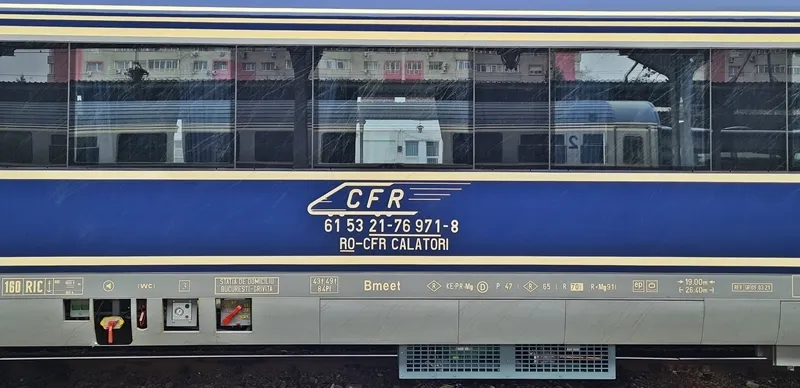

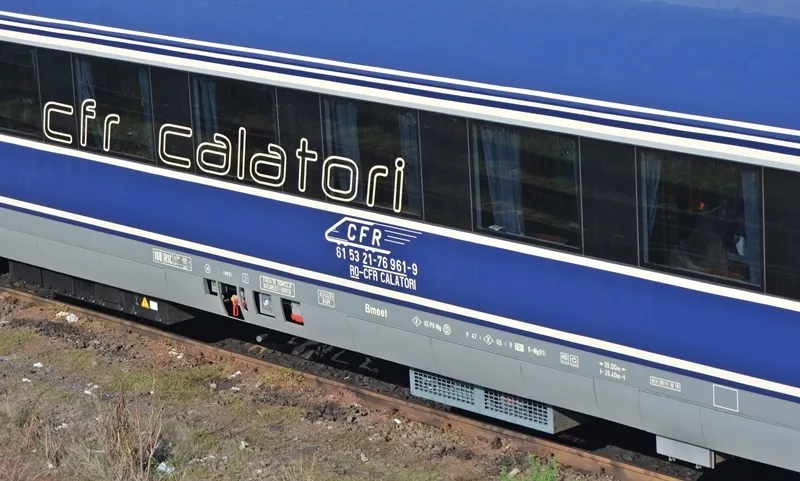

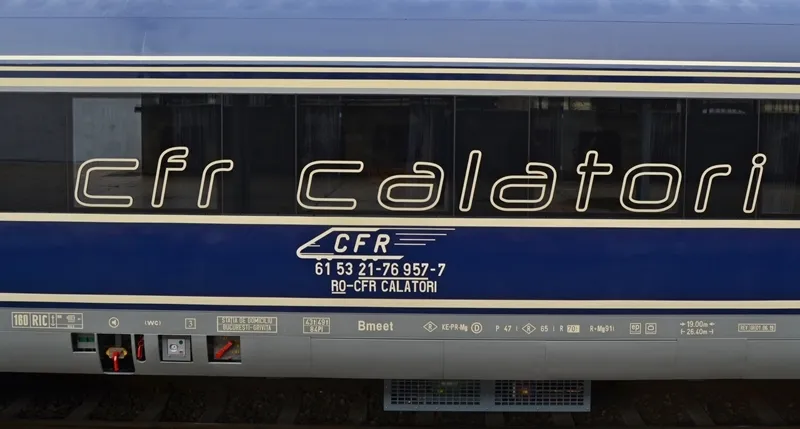

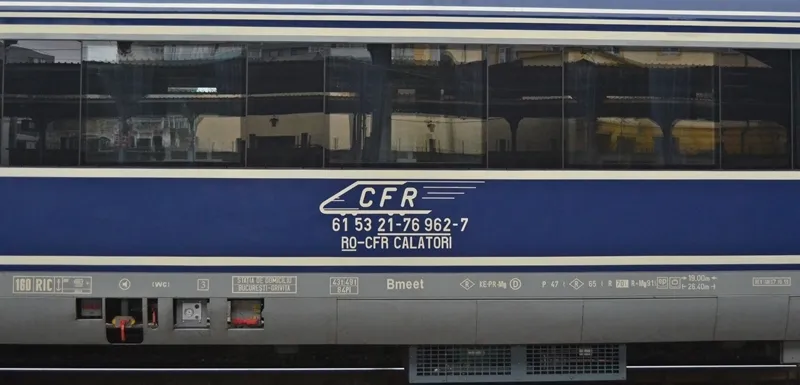

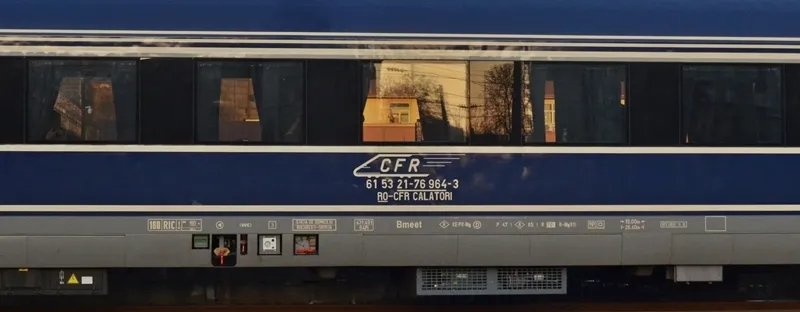

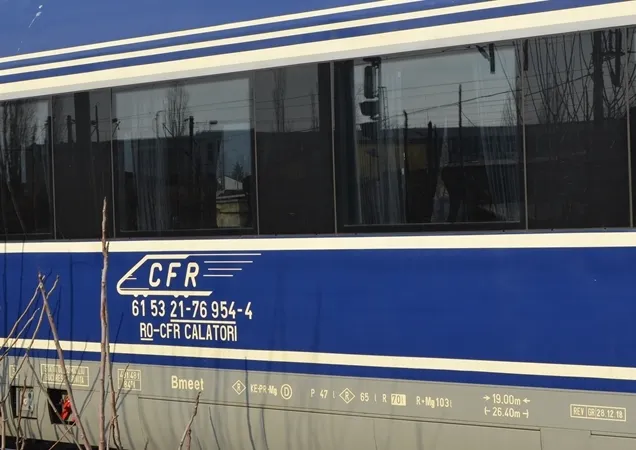

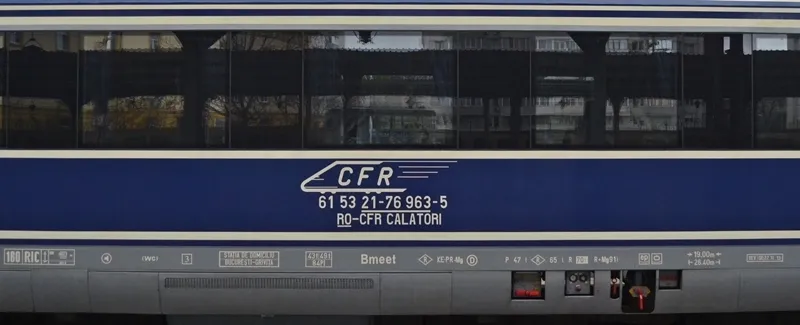

UIC / EVN numbering:

61 53 21-76

Vehicle type:

Regular passenger coach

Registration country:

Romania

Railway companies:

SNTFC - Societatea Naţională de Transport Feroviar de Călători (CFR Călători)

Hide technical details

In service:

from 2018

Era:

Built by:

Atelierele CFR Grivita

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

26'400 mm

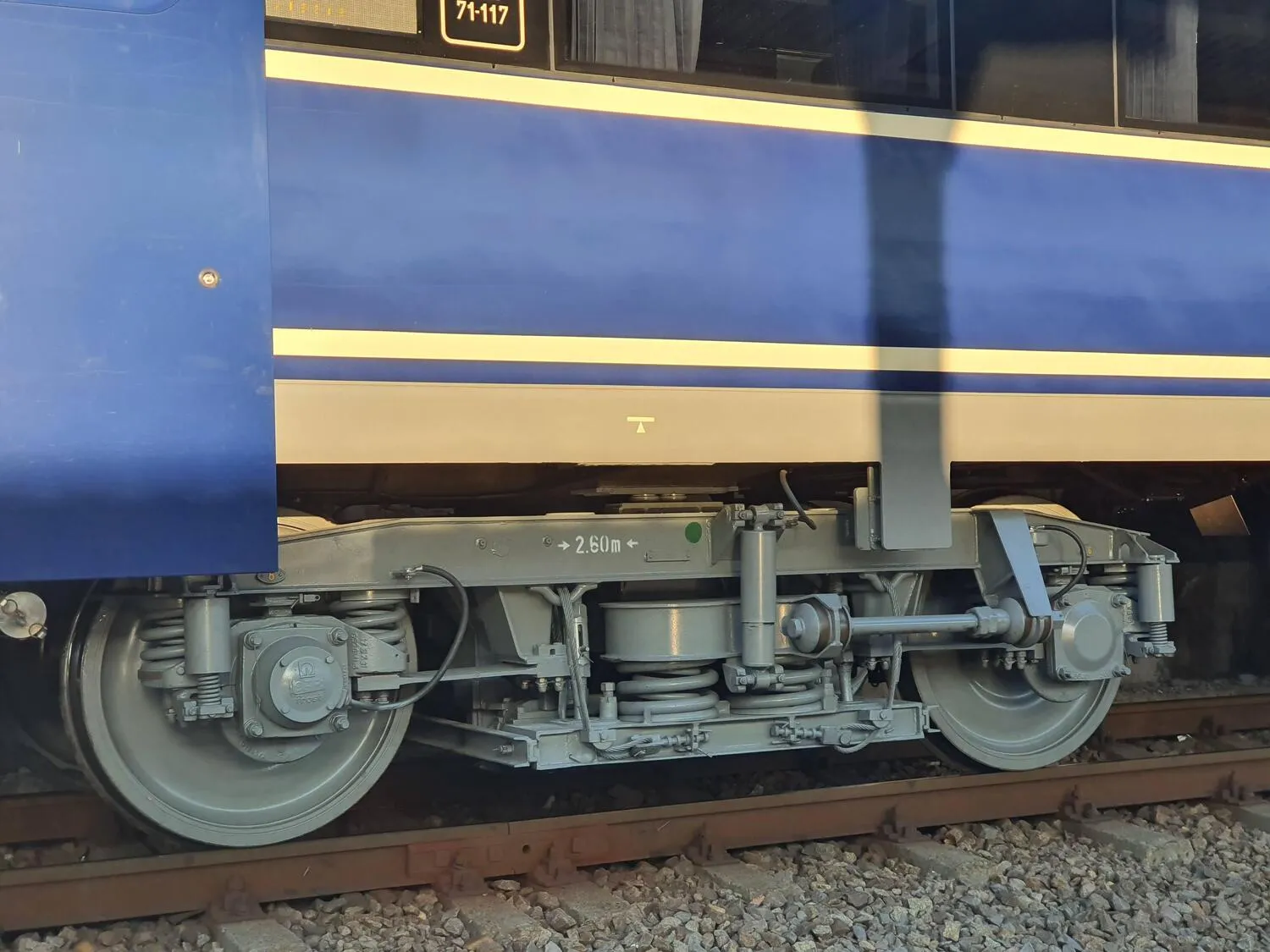

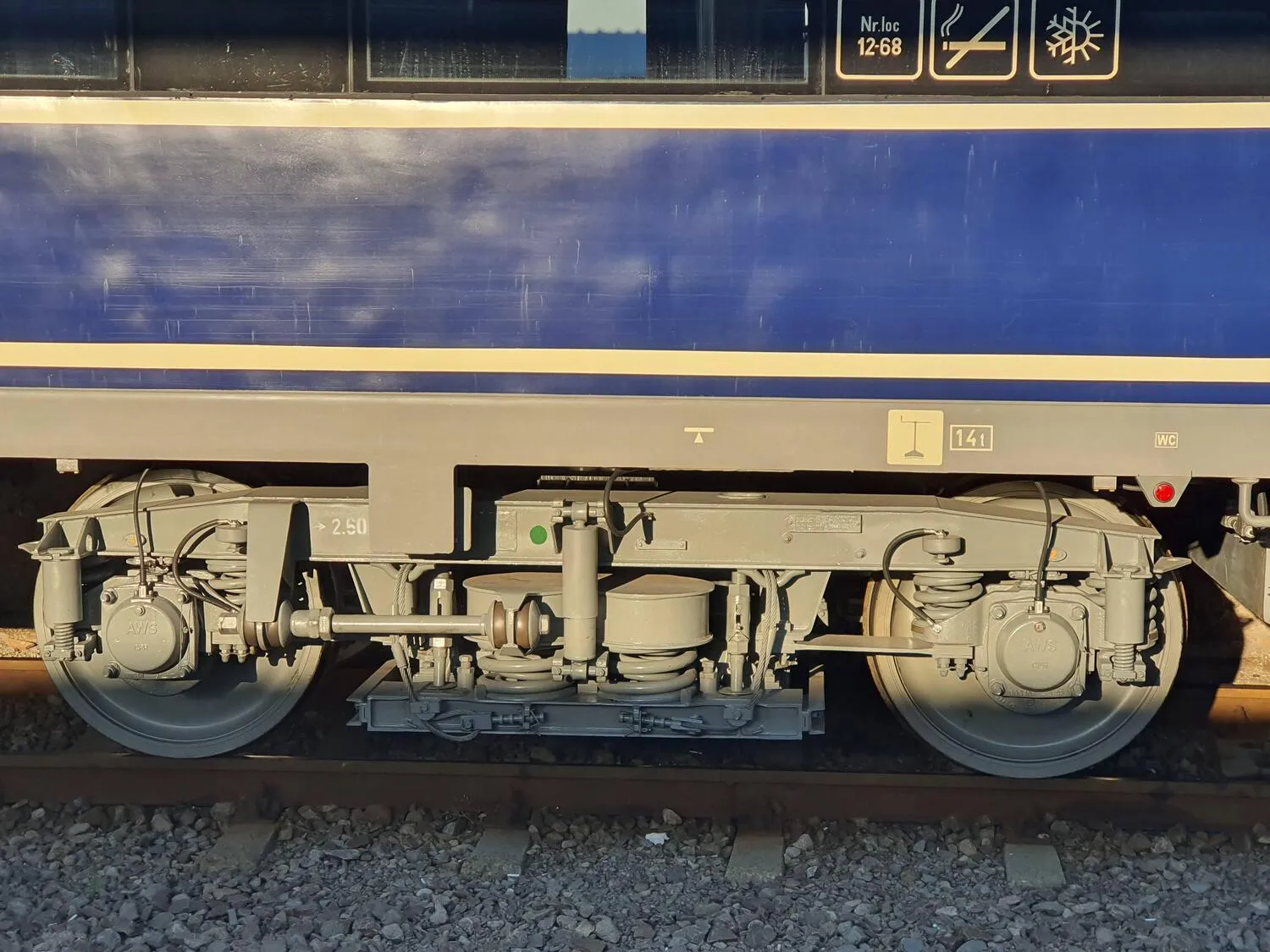

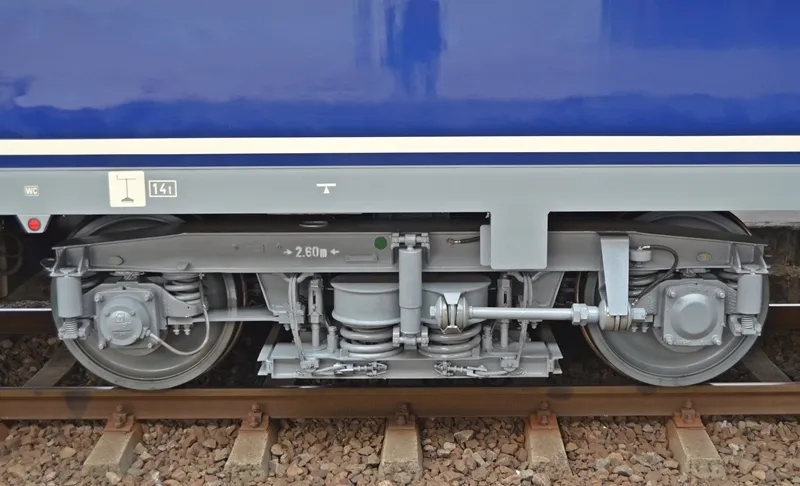

Bogies:

GP200S

Maximum speed (km/h):

160 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR(D)
KE-PR-Mg(D)

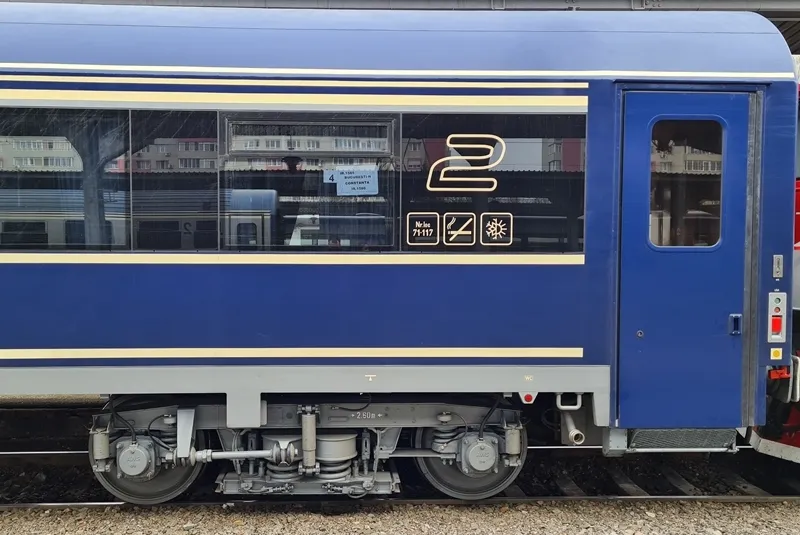

Access doors (electro-pneumatic - sliding doors / folding doors):

Louvoyant-sliding with electro-pneumatic closing, opening and blocking for speed more than 5 Km/h*
*according to UIC560

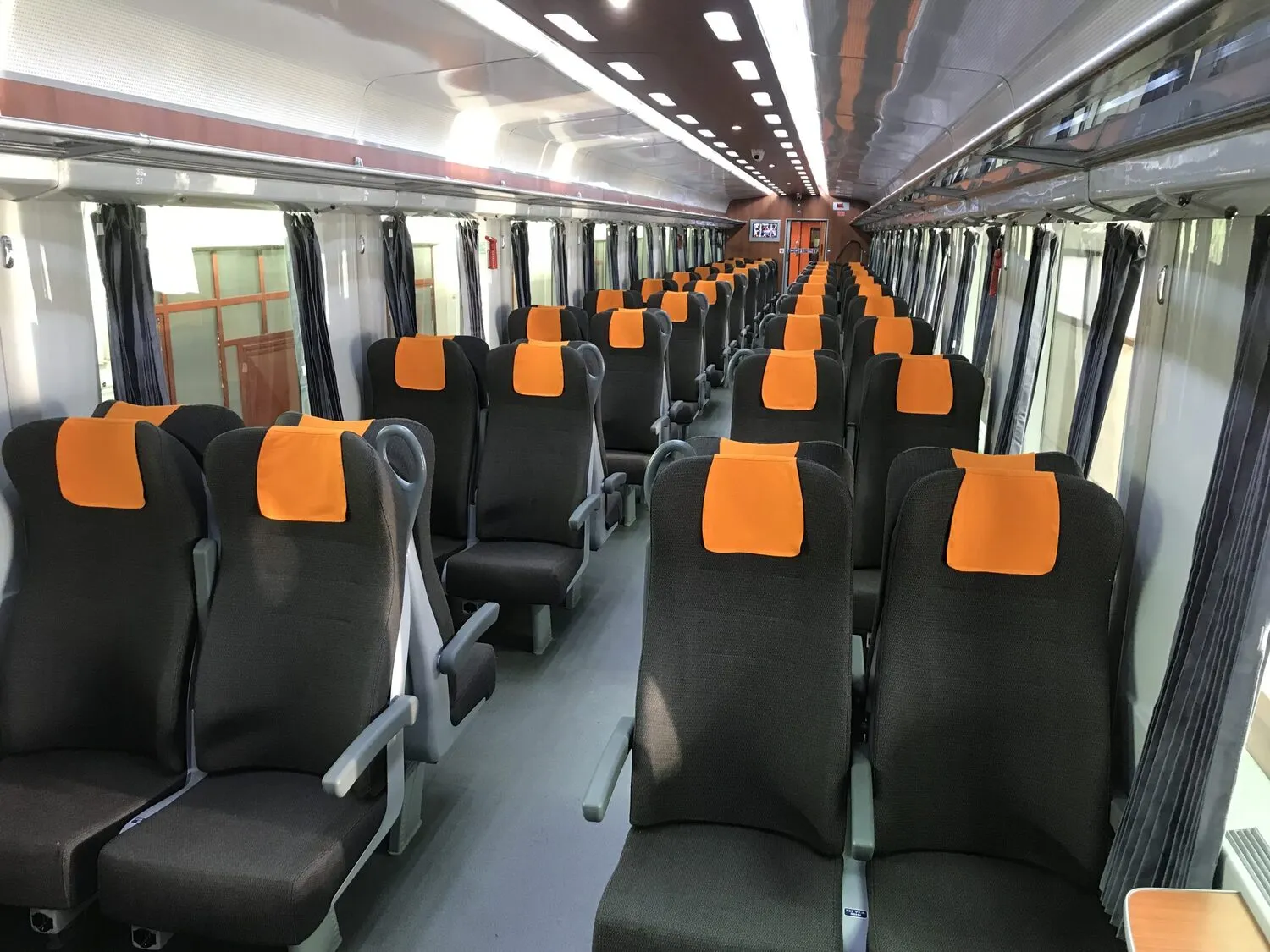

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

84x 2nd class seats

Toilets (direct discharge toilets / closed circuit toilets):

2 water tanks;
2 retention tanks;
2 WC cabins provided with vacuuming units.

Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):

Single-voltage static converter SSVC 13 type;
Input Voltage: 1500 V/50 Hz;
Output Voltage: 3×400 V/50 Hz, 230 V/50 Hz and 24 Vcc.

Air conditioning (yes / no):

ventilation, heating, cooling - complex, totally automatic, with ecological Freon type R134a or R407c*
*according to UIC 553

Other equipments (video surveillance / internal passenger information system):

Passenger information: displays located outside and inside the wagons to indicate the route via GPS system;
Video surveillance CCVT type;
Centralized diagnosis system for the main installations of the coach.

Display registration numbers

Vehicle's history

Add content

Report an error?

2018

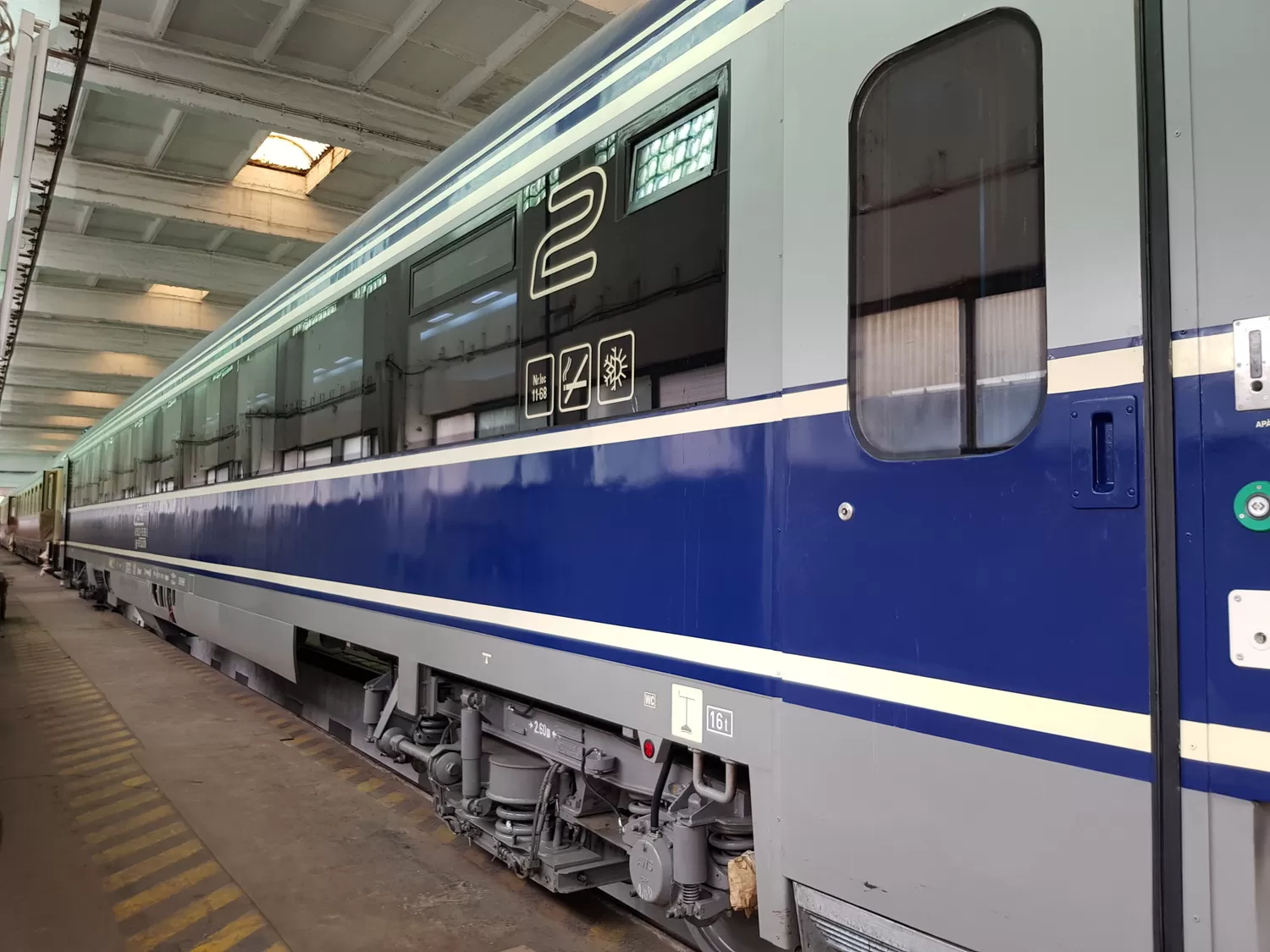

From 2018, the modernized units from Bmee 21-80 passenger coaches by Atelierele CFR Grivita will be registered in the Bmeet 21-76.95 series.

Sources: https://forum.metrouusor.com/ViewTopic?TopicId=3279&PageNum=2

Do you have additional informations regarding this vehicle?

Help us writing the history of Bmeet 21-76 950 - 980! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:

Add new timeline entry

Add photos

Add videos

Latest update on the 26th of December 2024 at 20:33

Contributor(s): Tudor C.
