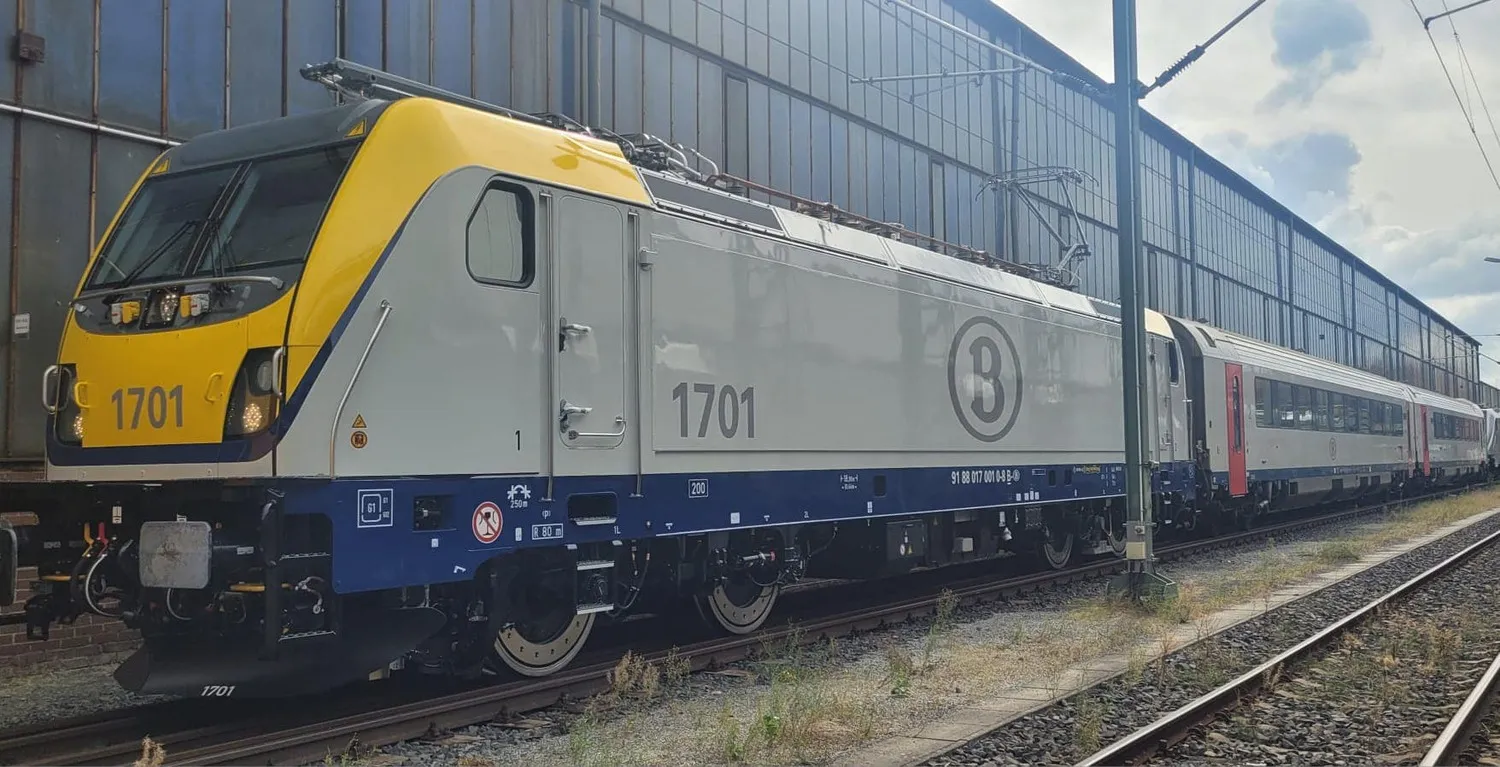

Class 17

Also known as:

HLE 17Series 17Traxx P200 MS3

UIC / EVN numbering:

91 88 017 0

Vehicle type:

Electric locomotive

Registration country:

Belgium

Railway companies:

SNCB NMBS (B) - Société nationale des chemins de fer belges / Nationale Maatschappij der Belgische Spoorwegen

Hide technical details

Era:

Built by:

Alstom

Gauge:

Standard gauge (1'435 mm)

Wheel arrangement:

Bo'Bo'

Electric systems:

1,5 kV DC
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
3 kV DC

Current collectors:

Pantograph - Asymmetrical *
*4 pantographs

Length over buffers (mm):

18'900 mm

Width (mm):

2'980 mm

Minimum radius of curvature (m):

80 m

Service weight (t):

86,5 t

Power output (x'xxx kW / x'xxx hp):

6'400 kW

Tractive effort (kN / lbf | starting / continuous):

275 kN

Maximum speed (km/h):

200 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

SW-GPR-E mZ

Safety system(s):

ETCS, TBL1+, LZB, PZB, ATB

Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):

~ 1000V 16Hz 2/3
= 1500V
~ 1500V 50Hz
= 3000V

Display registration numbers

Vehicle's history

Add content

Report an error?

2022

February 1

24 units are ordered in 2022 with an option for 26 more.

Sources: https://fr.wikipedia.org/wiki/Série_17_SNCB
