DBpza780.3 | TrainsDepot.org

Source: flickr.com

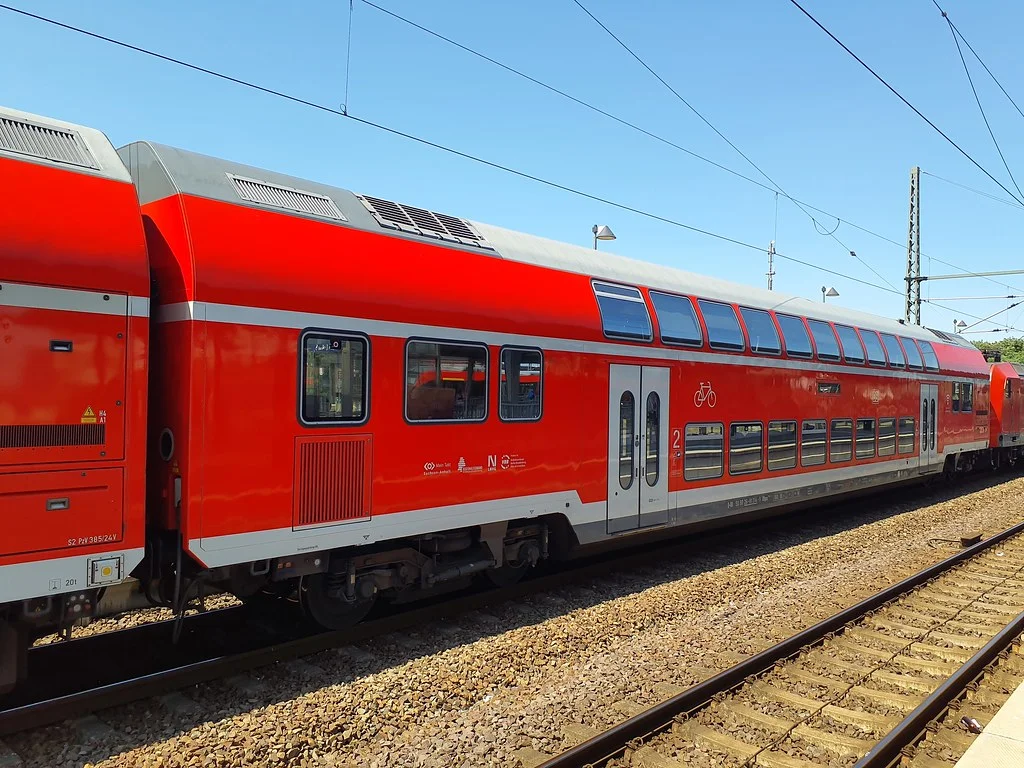

DBpza^780.3

UIC / EVN numbering: 50 80 26-81

Vehicle type: double-deck coach

Registration country: Germany

Railway companies: DB - Deutsche Bahn

Hide technical details

Era:

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

26'800 mm

Width (mm):

2'784 mm

Height (mm | over lowered pantograph):

4'631 mm

Tare weight (t):

50 t

Bogies:

Görlitz VIII

Maximum speed (km/h):

160 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-PR-A-Mg (D) [ep|NBÜ]
+Mg 125 t, 93 t, R 87 t, P 67 t

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

106*
*2nd class seats

Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):

yes
