Hide technical details

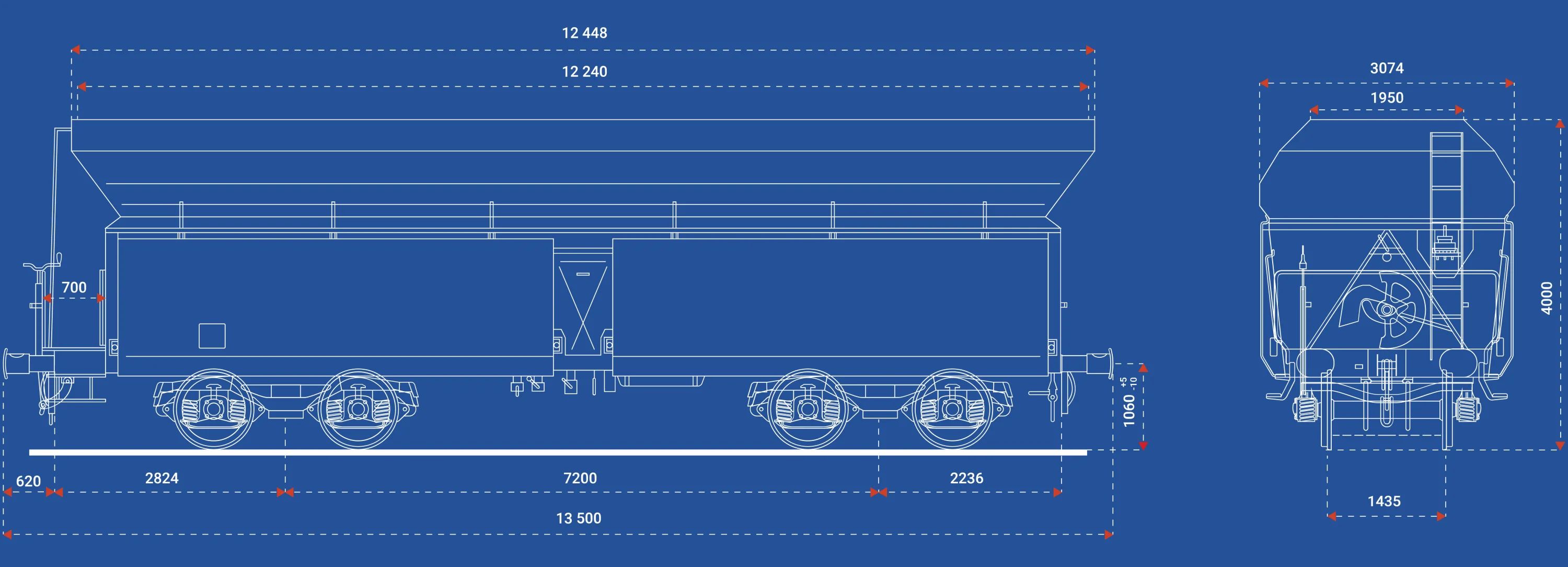

Length over buffers (mm):
13'500 mm
Minimum radius of curvature (m):
120 m
Tare weight (t):
26,8 t
Axle load (t):
20 t
Maximum speed (km/h):
100 km/h

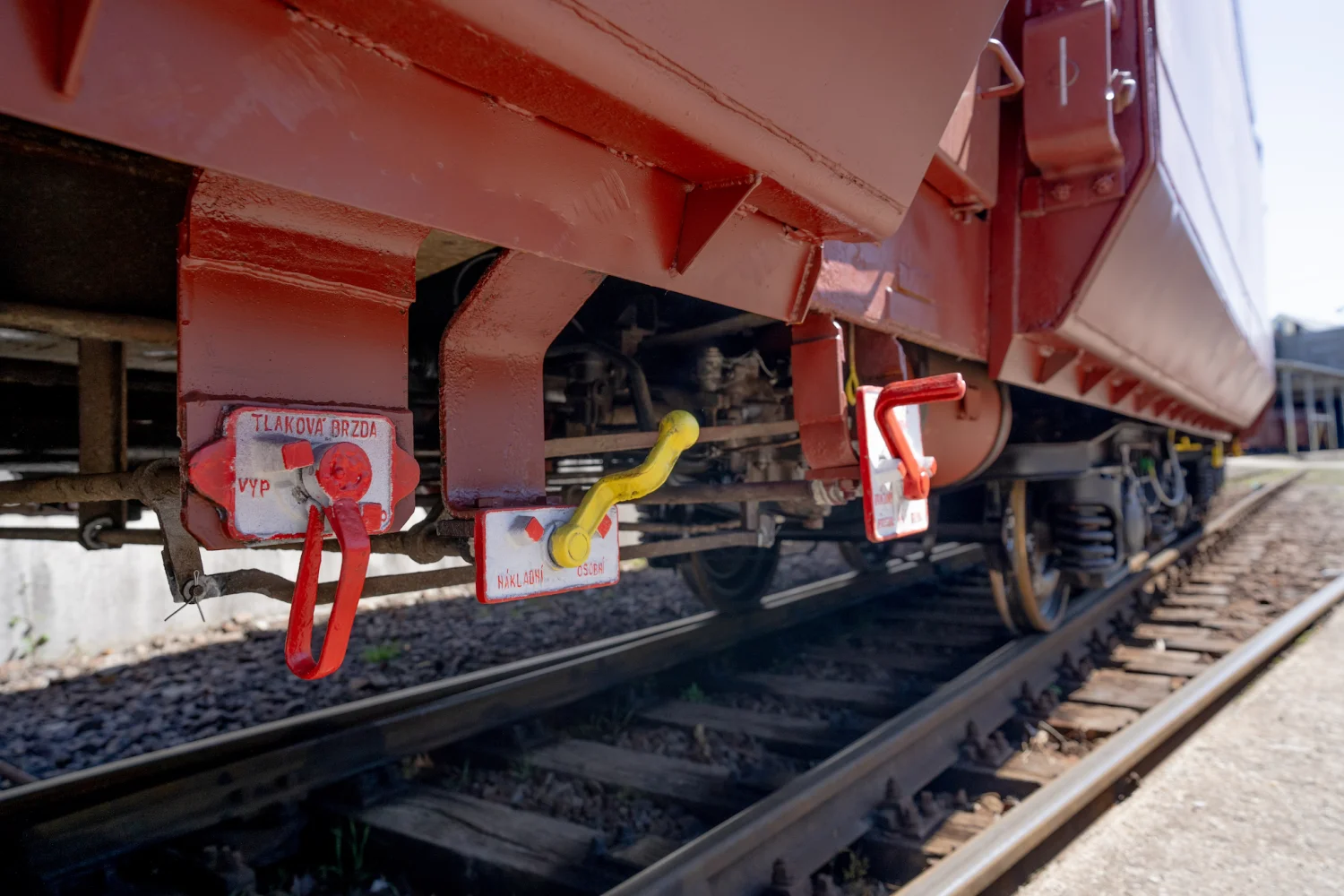

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
DAKO
Maximum load length (mm):
12'440 mm
Maximum load width (mm):
1'950 mm
Maximum load volume (m³):
75 m³
