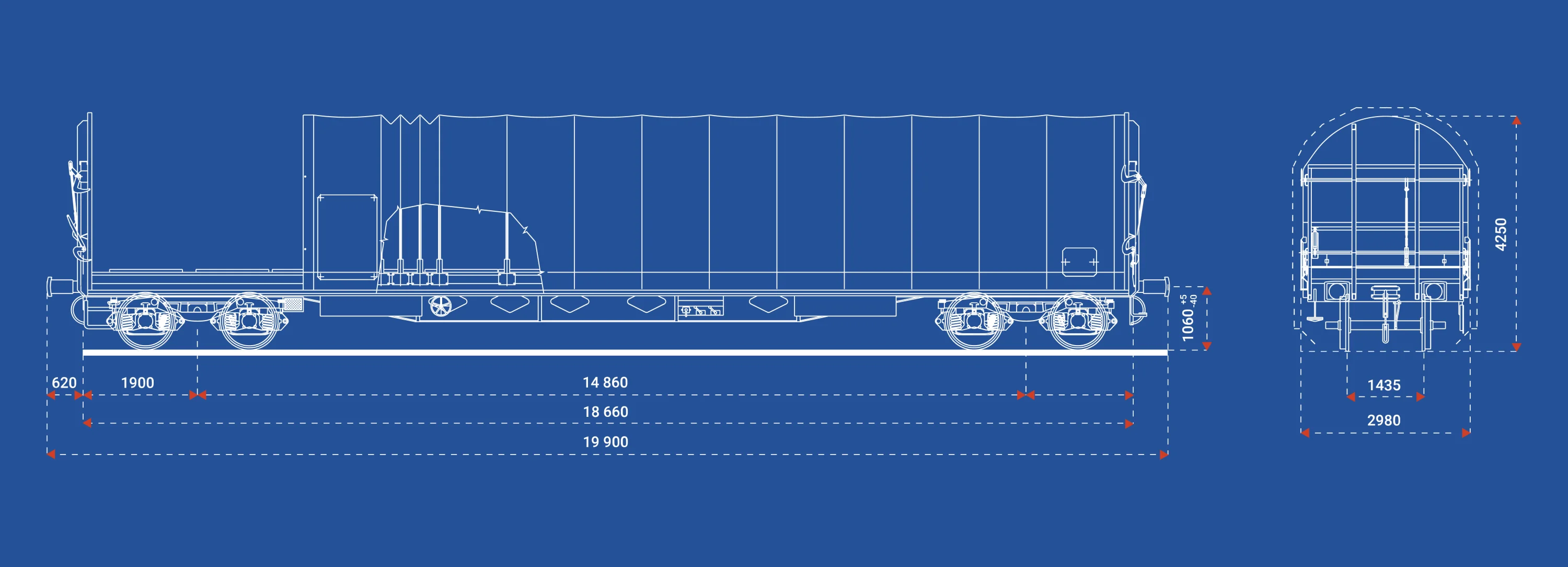

Length over buffers (mm):
19'900 mm
Width (mm):
2'660 mm
Minimum radius of curvature (m):
60 m
Tare weight (t):
25,2 t
Axle load (t):
20 t
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
DAKO
Maximum load length (mm):
18'500 mm
Maximum load volume (m³):
49,3 m³
