Hide technical details
In service:
1976 - 1995
Era:
IV - V
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
Co'Co'
Length over buffers (mm):
20'200 mm
Width (mm):
3'100 mm
Height (mm | over lowered pantograph):
4'438 mm
Tare weight (t):
117 t
Service weight (t):
123 t*
*fuel tank 65% full
Axle load (t):
20,5 t*
*fuel tank 65% full
Engine:
ALCo 251R / V16*
*built in Romania, at UCM Resita, under licence from the American Locomotive Company (USA)
Power output (x'xxx kW / x'xxx hp):
2'911 kW
3'955 hp
Tractive effort (kN / lbf | starting / continuous):
345,0 kN*
*starting
212,2 kN*
*continuous
Wheel diameter (x'xxx,xx | mm | new / worn):
1'100 mm*
*new
Maximum speed (km/h):
145 km/h
Electric Train Heating (ETH) (yes / no - electric radiators / modulated air):
yes

1976

These diesel locomotives are powered by an ALCo 251R / V16 diesel engine, built at UCM Resita (Romania) under licence from the American Locomotive Company (USA), developing almost 4000 hp.

Some parts of the design (in particular the truss body structure and bogies) are alleged to be derived from the Brush locomotives built for British Rail (BR) as their Class 56, the original batch of which are built by Electroputere Craiova during the same period.

A total of 7x locomotives from this series are delivered by Electroputere Craiova, as follows:

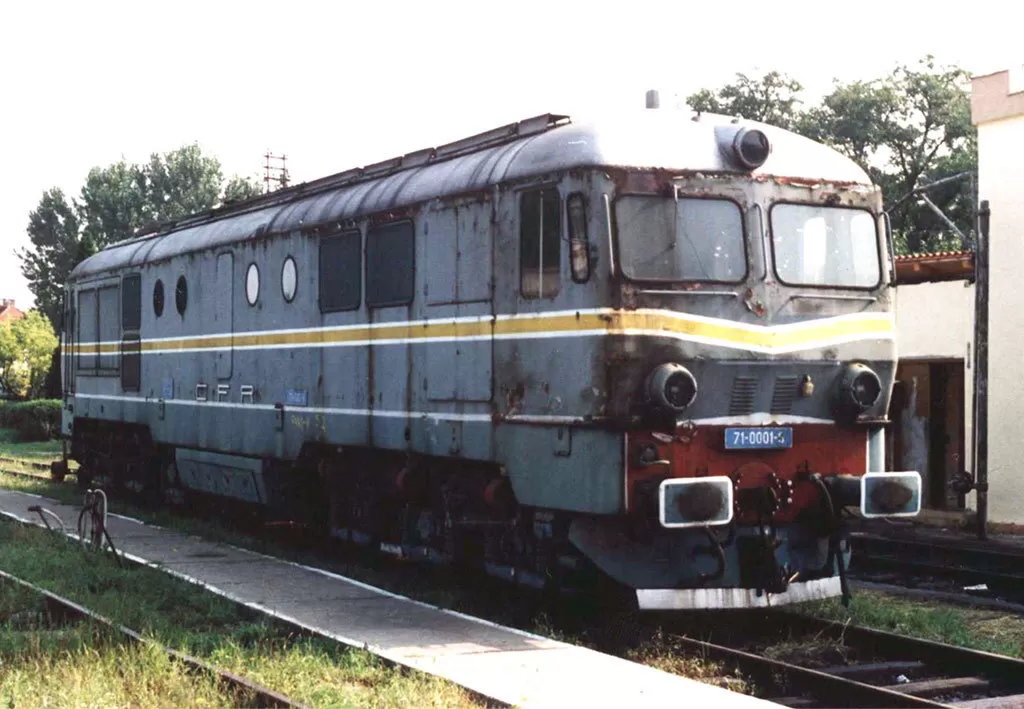

- 1976: 1x unit registered as 71-0001-9;
- 1978: 4x units registered as 71-0004-3, 71-0005-0, 71-0006-8 and 71-0018-3 (unit 71-0017-5 is finally delivered as 70-0017-7);
- 1979: 1x unit registered as 71-0024-1;
- 1980: 1x units registered as 71-0031-6.

28x additional units configured for freight operations are delivered and registered as Class 70.

NB: In 1982, 10x additional units are exported to Greece, for the Hellenic Railways Organisation (OSE), where they are registered as Class A-551.


Sources: https://trenuletz.forumz.ro/t244p120-locomotive-clasa-66-67-70-71-si-64, http://www.railfaneurope.net/list/romania/romania_cfr_del.html, http://www.locopage.net/cfr-alcos.htm, http://www.transira.ro/bb3/viewtopic.php?t=2507

1995

All units are withdrawn from regular service by the end of 1995.

Sources: http://www.railfaneurope.net/list/romania/romania_cfr_del.html
