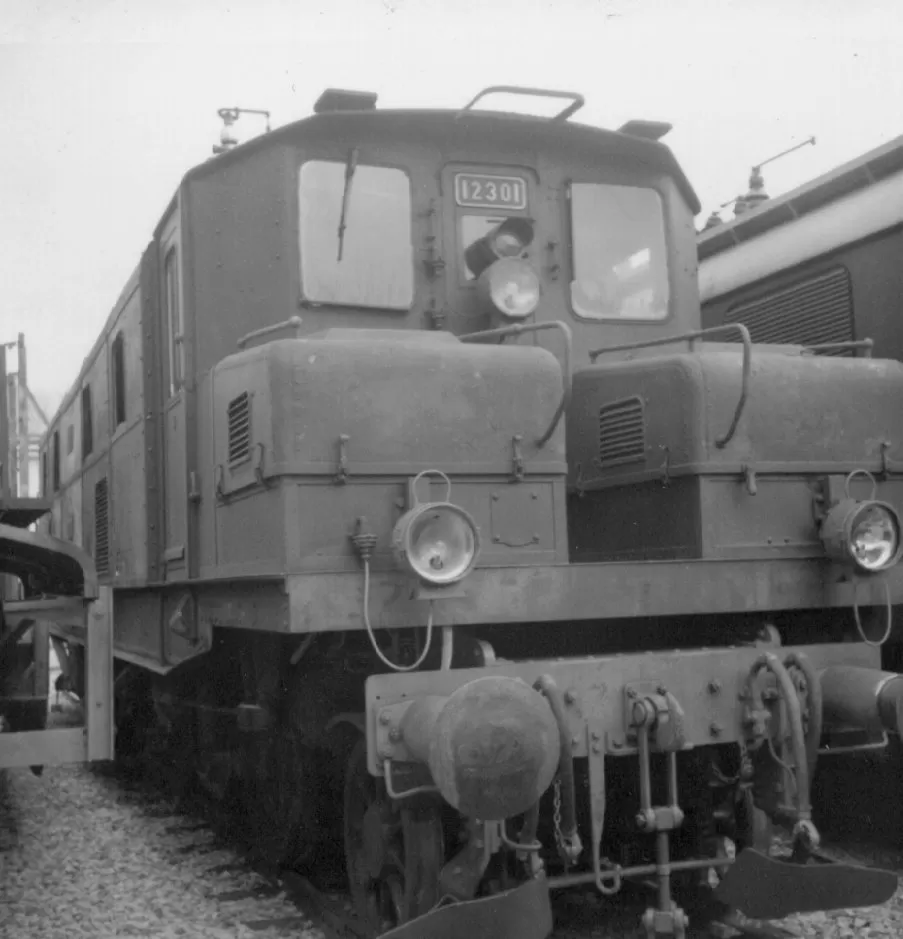

Be 4/6 12301
Also known as:
Fb 2x2/3 11301
Vehicle type:
Registration country:
1917
June
In November 1913, the Swiss Federal Railways (SBB CFF FFS) decided to
electrify the Gotthard route from Erstfeld to Biasca. With the
outbreak of the First World War, the Swiss Federal Railways (SBB CFF FFS) were
forced to ever greater schedule restrictions due to the coal
shortages (by the autumn of 1918, all trains were stopped on
Sundays, with the exception of the milk trains). The SBB were
forced to electrify more and more routes and the electrification of
the Gotthard route was completed in 1920. SBB urgently needed
passenger and freight train locomotives for operation.

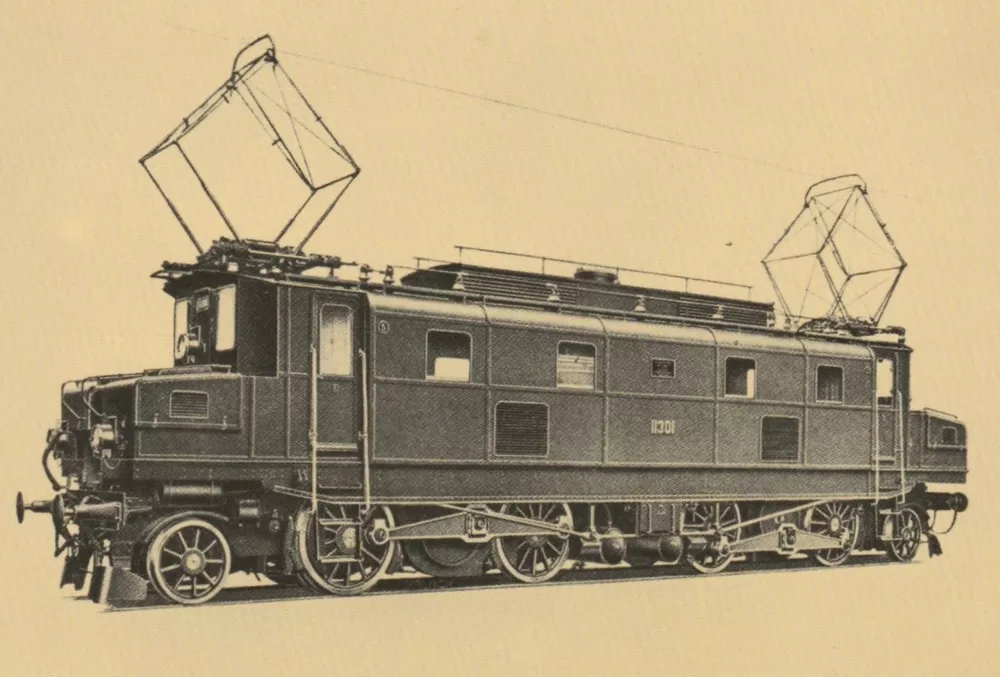

Initially marked as Fb 2x2/3 11301, the locomotive is part of a series of 4 locomotives ordered by the Swiss Federal Railways (SBB CFF FFS) in June 1917 for testing purposes to prepare series orders. The other 3 engines are Fc 2x3/4 12201 (later Ce 6/8I 14201), Fb 2x2/3 11302 (later Be 4/6 12302) and Fb 3/5 11201 (later Be 3/5 12201).
The technical specifications asked by the Swiss Federal Railways (SBB CFF FFS) for the new electric locomotives were:
- maximum running weight: 7 t/m;
- maximum axle load: 18 t (at a later, after adaptation of the infrastructure: 20 t);
- capable of pulling a wagon load of 430 t on a 26 ‰ gradient at a speed of 35 km/h;
- safe starting with this load on a 26 ‰ gradient and capable of reaching 35 km/h within 4 minutes;
- capable of two round trips Arth-Goldau - Chiasso (780 km) within 28 hours;
- electric recuperation braking system for decelerating the locomotive on a 26 ‰ gradient during 15 minutes without damage.
Apart from complying with the specifications, the Swiss Federal Railways (SBB CFF FFS) gave the design engineers great freedom to work out the designs.
Initially marked as Fb 2x2/3 11301, the locomotive is part of a series of 4 locomotives ordered by the Swiss Federal Railways (SBB CFF FFS) in June 1917 for testing purposes to prepare series orders. The other 3 engines are Fc 2x3/4 12201 (later Ce 6/8I 14201), Fb 2x2/3 11302 (later Be 4/6 12302) and Fb 3/5 11201 (later Be 3/5 12201).
The technical specifications asked by the Swiss Federal Railways (SBB CFF FFS) for the new electric locomotives were:
- maximum running weight: 7 t/m;
- maximum axle load: 18 t (at a later, after adaptation of the infrastructure: 20 t);
- capable of pulling a wagon load of 430 t on a 26 ‰ gradient at a speed of 35 km/h;
- safe starting with this load on a 26 ‰ gradient and capable of reaching 35 km/h within 4 minutes;
- capable of two round trips Arth-Goldau - Chiasso (780 km) within 28 hours;
- electric recuperation braking system for decelerating the locomotive on a 26 ‰ gradient during 15 minutes without damage.
Apart from complying with the specifications, the Swiss Federal Railways (SBB CFF FFS) gave the design engineers great freedom to work out the designs.
1920
May
The locomotive receives its new designation Be 4/6 12301.
Do you have additional informations regarding this vehicle?
Help us writing the history of Be 4/6 12301! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:
Latest update on the 10th of January 2020 at 21:24
Contributor(s): Tudor C.
