Eacs

UIC / EVN numbering: 82 53 5462 / 82 53 5464 / 31 53 5467 / 82 53 5467 / 82 53 5468 / 82 53 5469 / 82 53 5470 / 31 53 5471 / 82 53 5471 / 31 53 5472 / 31 53 5473 / 82 53 5473 / 31 53 5474 / 82 53 5474 / 31 53 5475 / 82 53 5475 / 82 53 5476 / 31 53 5478 / 31 53 5479 / 31 53 5480 / 31 53 5481 / 81 53 5481 / 31 53 5482 / 31 53 5483 / 31 53 5484 / 31 53 5487 / 84 53 5487 / 31 53 5493

Vehicle type: freight wagon

Registration country: Romania

Railway companies: CFR - Caile Ferate Române CFR Marfa / CFR Marfă - Societatea Națională de Transport Feroviar de Marfă (CFR Marfă)

Hide technical details

In service:

from 1963

Era:

III - VI

Built by:

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

14'040 mm

Tare weight (t):

22 t

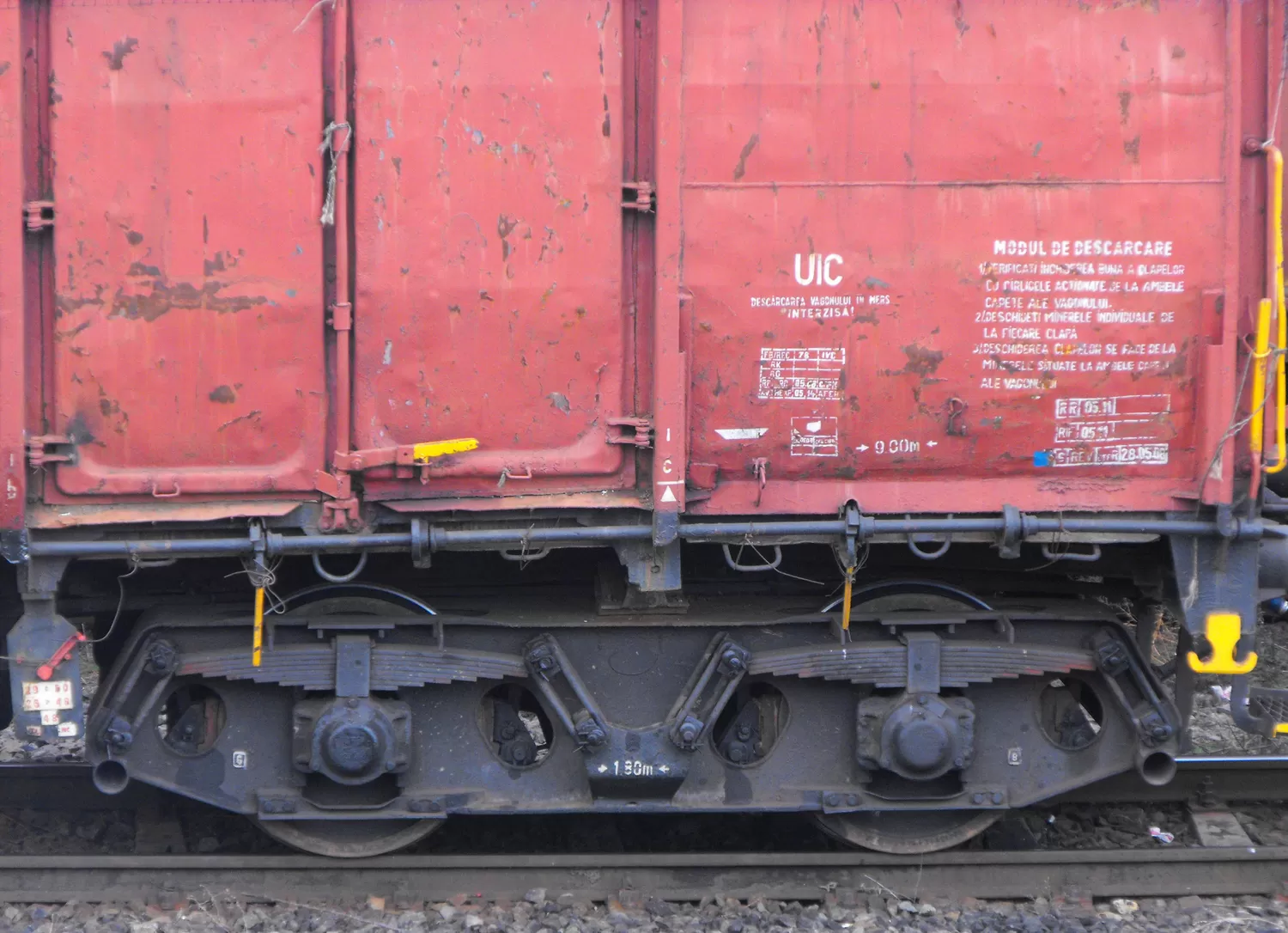

Bogies:

ORE
H. Y25

Wheel diameter (x'xxx,xx | mm | new / worn):

1'000 mm
920 mm

Maximum speed (km/h):

100 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

Hik
KE

Floor surface (m²):

36 m²

Maximum load volume (m³):

72 m³

Display registration numbers

Vehicle's history

Add content

Report an error?

1963

Numeric series: 5429-5493
Manufacturers: UV Arad, Meva T. Severin, Romvag Caracal, Gh. Dimitrov Sofia
Construction year: 1963-1987
Length over buffers: 14,040 mm
Useful box length: 12,710 mm
Wall height: 1,940 mm, 1,950 mm
Useful volume: 72 m³
Floor area: 36 m²
Useful box width: 2,780 mm
Brake type: Hik, KE
Tare weight: 22 t
Bogie type: ORE, H. Y25
Rolling diameter: 1,000 mm, 920 mm
Maximum speed: 100 km/h

Sources: https://forum.metrouusor.com/ViewTopic?postId=20244&handler=ByPostId
