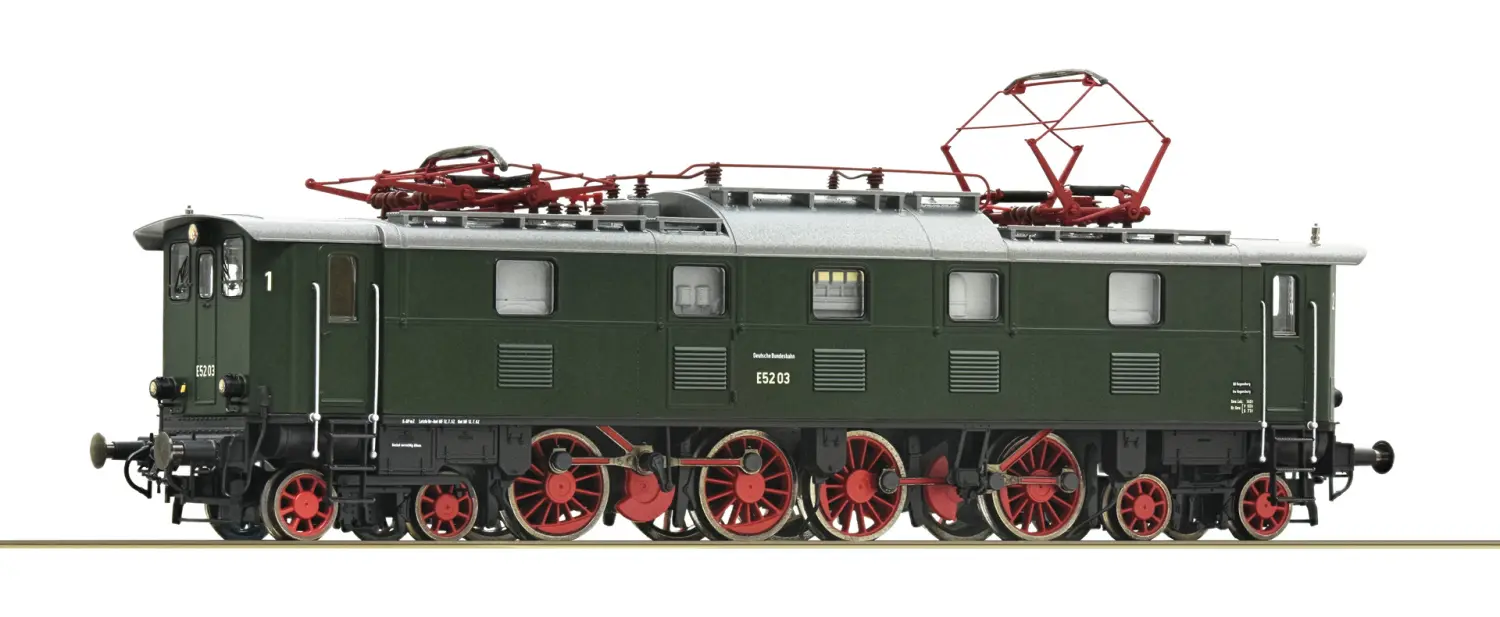

Electric locomotive E 52 03 of the German Federal Railway.
■ Epoch III model in bottle green livery
■ Delicately designed model with many extra applied plug-in
parts
■ Reproduction of the lubrication pump drive
■ Prototypical drive concept
■ Functional replica of the jackshaft
■ Finest metal spoked wheels
■ Braking shoes follow the wheel arches exactly
■ Snap-in ladders that can be adjusted to any required length. They
ensure safe operation on many different model railway layouts and
radii.
■ Headlights/tail lights switchable with a DIP switch
The DRG procured a heavy electric locomotive to haul long passenger
trains on the electrified Bavarian main lines. It chose a 2'BB2'
locomotive from numerous designs to get the same motors as the also
planned class E 91 goods locomotive. With the new design, the DRG
abandoned the previous construction of the electric locomotives
with a large, slowly running motor and decided to use four smaller
output motors. Each group had two motors. A layshaft driven
jackshaft via inclined connecting rods was coupled to two driven
axles by coupling rods. The locomotive with a weight of 140 t was
one of Germany's heaviest electric locomotives ever built. It had a
power output of 2,200 kW and a top speed of 90 km/h.
The manufacturers delivered the locomotives in 1924 /1925 to the
DRG's Bavarian Group Administration, which served them as class EP
5 with the numbers 21 501-535. In 1927 they were given the
designation E 52 01-35. The 29 locomotives that remained with the
Deutsche Bundesbahn after World War II were designated class 152
from 1968. In February 1973, the DB scrapped the last locomotive of
this class: the 152 014.
...
