A^AFLD 19-40

Also known as: Series 10.500

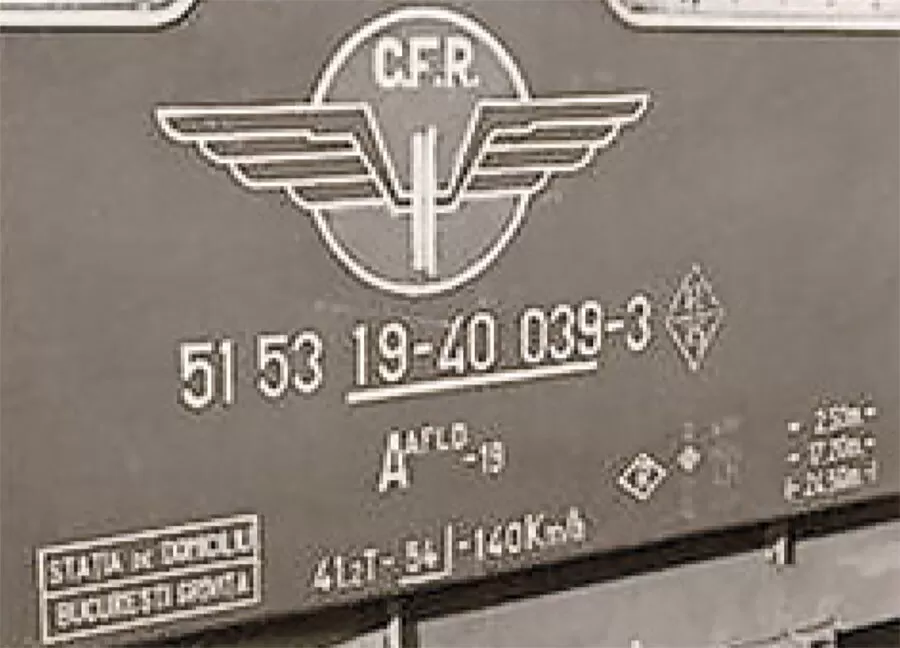

UIC / EVN numbering: 51 53 19-40

Vehicle type: regular coach

Registration country: Romania

Railway companies: CFR - Caile Ferate Române

Hide technical details

In service:

from 1961

Built by:

ASTRA Arad

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

24'500 mm

Height (mm | over lowered pantograph):

4'050 mm

Minimum radius of curvature on open stretches (m):

150 m

Tare weight (t):

43 t

Bogies:

Minden-Deutz

Maximum speed (km/h):

160 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR type air brake

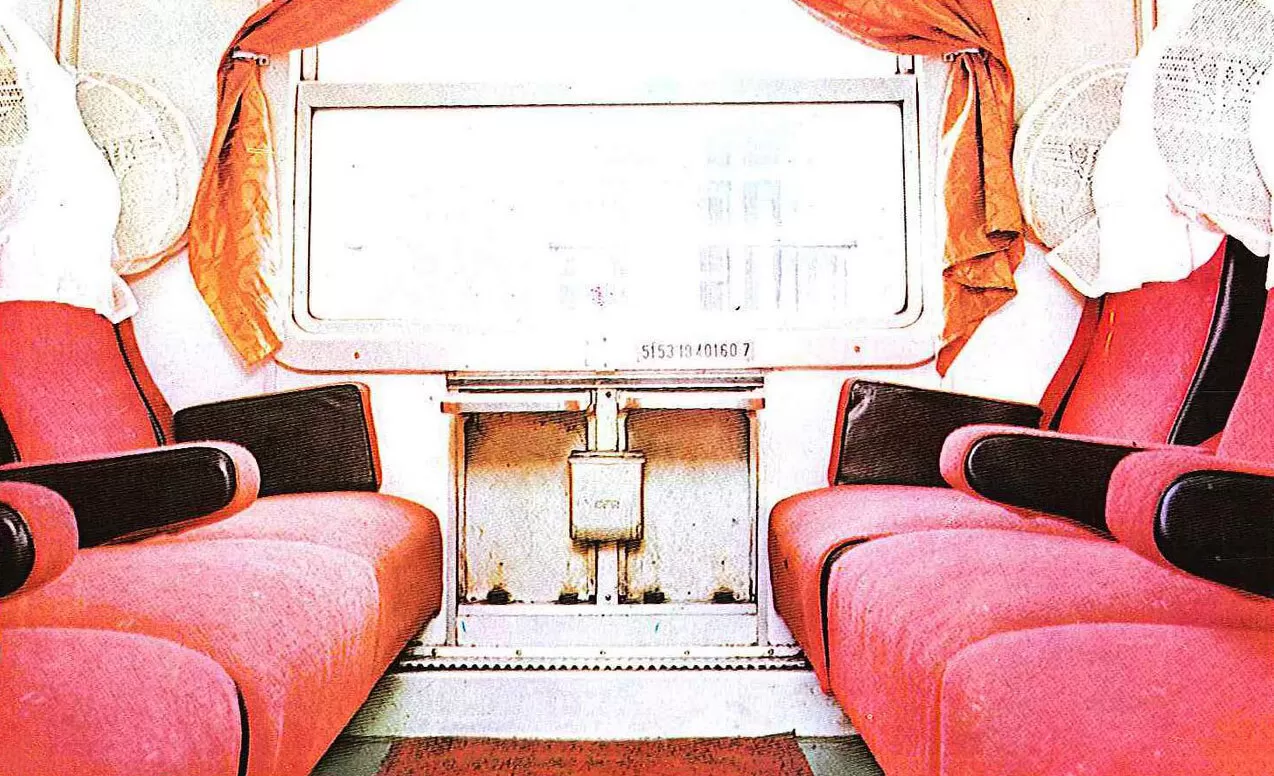

Compartments (compartments / attendant compartment):

9x 1st class compartments

Number of seats / compartment (1st class seats / 2nd class seats / 3rd class seats / folding seats):

6x 1st class seats

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

54x 1st class seats

Train heating (electric / steam / hot-water):

electric and high pressure steam heating

Display registration numbers

Display associated files

Vehicle's history

Add content

Report an error?

1961

The first unit from this series is imported from France and it is registered A^AFLD 10.500.

Between 1961 and 1963, 2x prototypes are built by Uzina de Vagoane Arad (UVA) and are registered A^AFLD 10.501 and 10.502.

Sources: https://forum.lokomotiv.ro/threads/originea-vagoanelor-19-57-si-20-57-19-47-si-20-47.2856/page-2

1969

The production series starts in 1969 at Uzina de Vagoane Arad (UVA).

Sources: https://forum.lokomotiv.ro/threads/originea-vagoanelor-19-57-si-20-57-19-47-si-20-47.2856/page-2

Do you have additional informations regarding this vehicle?

Help us writing the history of A^AFLD 19-40! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:

Add new timeline entry

Add photos

Add videos

Latest update on the 21st of June 2020 at 11:10

Contributor(s): Tudor C.
