Source: facebook.com
A.C.M.
Also known as:
De Dion Bouton
Vehicle type:
Registration country:
Railway companies:
In service:
from 1907
Era:
I
Built by:
Gauge:
Standard gauge (1'435 mm)
Length over buffers (mm):
11'300 mm
Wheelbase (mm | rigid / total):
6'800 mm
Tare weight (t):
19,350 t
Maximum speed (km/h):
45 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
air brakes
electric brakes
hand brake
electric brakes
hand brake
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
29x seats (9x 2nd class seats & 20x 3rd class seats)
Other equipments (video surveillance / internal passenger information system):
electric interior lighting
1907

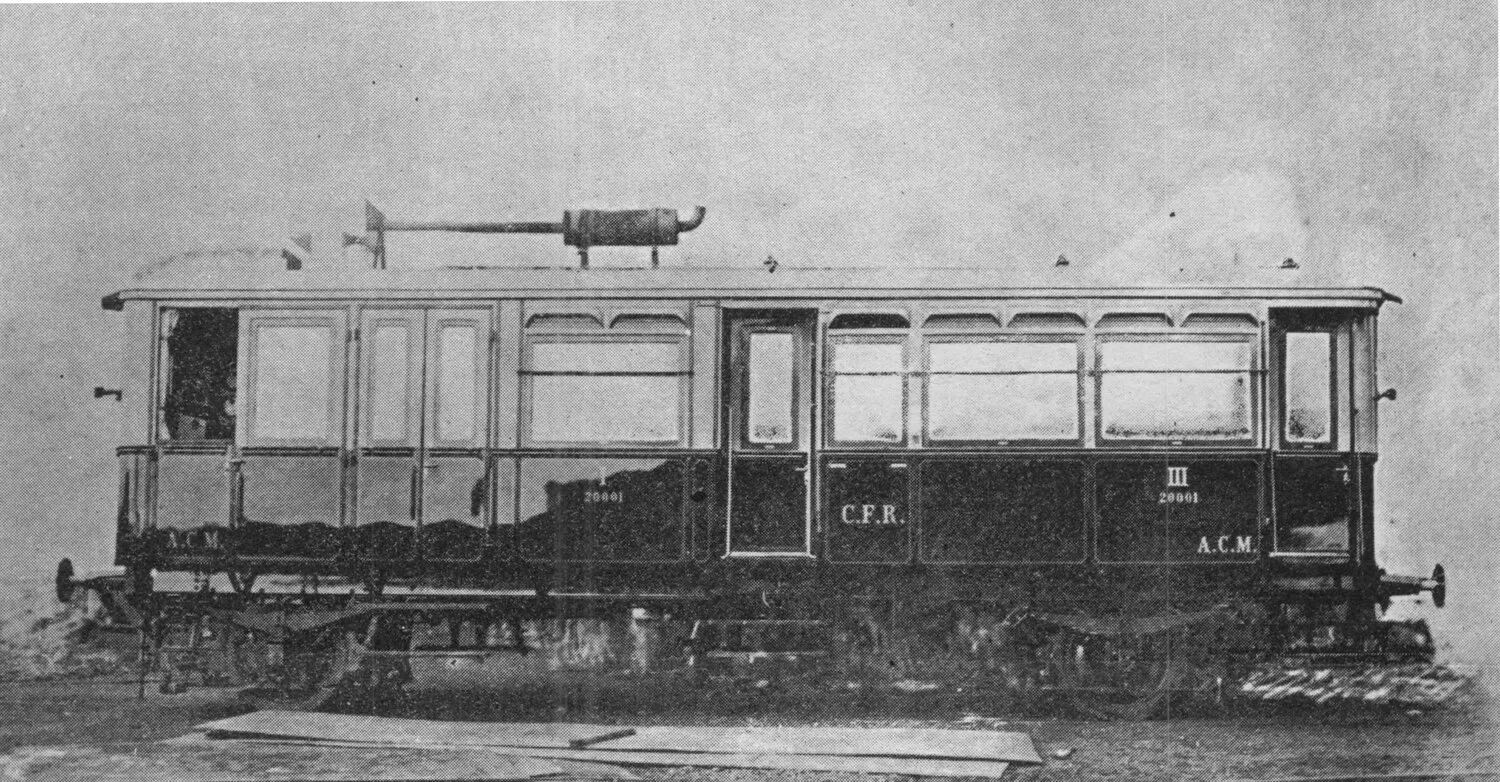

The first 2x railcars used by the Romanian Railways enter service in 1907 at
Piatra-Olt depot. These are used for the Piatra-Olt - Corabia and
Piatra-Olt - Caracal railway lines.
These railcars use a naphtha (or "heavy petrol") motor coupled to a 70 hp electric generator. Both axles are powered by electric motors and gear drive.
They have only one driving cabin at one end, with the inconvenience they had to be turned at the end of the journey.
These railcars are of the same type as the automative wagons used by the Arad - Cenad railways at the time.
These railcars use a naphtha (or "heavy petrol") motor coupled to a 70 hp electric generator. Both axles are powered by electric motors and gear drive.
They have only one driving cabin at one end, with the inconvenience they had to be turned at the end of the journey.
These railcars are of the same type as the automative wagons used by the Arad - Cenad railways at the time.
1912
The Piatra-Olt - Caracal service using these railcars is stopped
and only the Piatra-Olt - Corabia service is maintained until 1916.
1916
In 1916 both railcars are removed from service and are transformed
into inspection wagons registered 2001 & 2002.
NB: In 1935, unit 2001 is transformed again for passenger transport and is sent first to Ploiesti and after to Cetatea Alba for the Cetatea Alba - Bugaz railway line.
NB: In 1935, unit 2001 is transformed again for passenger transport and is sent first to Ploiesti and after to Cetatea Alba for the Cetatea Alba - Bugaz railway line.
1923
33x automative wagons of similar type are taken over by
the Romanian Railways from the Arad - Cenad railways.
Do you have additional informations regarding this vehicle?
Help us writing the history of A.C.M.! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:
Latest update on the 20th of November 2021 at 11:35
Contributor(s): Tudor C.
