Y/B 70 AB 39-50

UIC / EVN numbering:

51 53 39-50

Vehicle type:

Regular passenger coach

Registration country:

Romania

Railway companies:

CFR - Caile Ferate RomâneSNTFC - Societatea Naţională de Transport Feroviar de Călători (CFR Călători)

Hide technical details

In service:

from 1982

Era:

IV - V

Built by:

Gauge:

Standard gauge (1'435 mm)

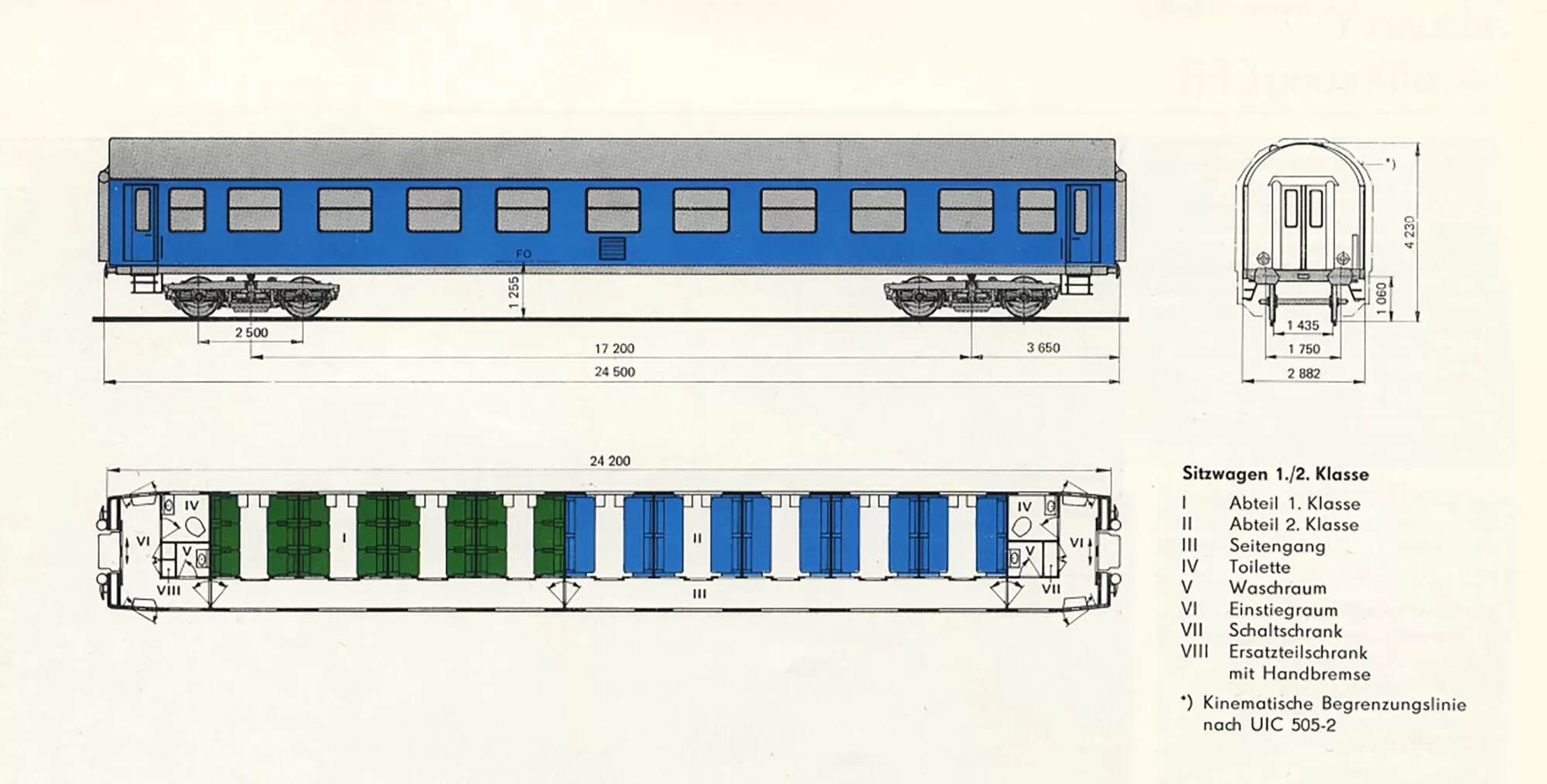

Length over buffers (mm):

24'500 mm

Width (mm):

2'882 mm

Height (mm | over lowered pantograph):

4'230 mm

Wheelbase (mm | rigid / total):

17'200 mm

Tare weight (t):

38,0 t

Bogie wheelbase (mm):

2'500 mm

Maximum speed (km/h):

160 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR

Compartments (compartments / attendant compartment):

4x 1st class
5x 2nd class

Number of seats / compartment (1st class seats / 2nd class seats / 3rd class seats / folding seats):

6x seats*
*1st class compartment
8x seats*
*2nd class compartment

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

24x 1st class seats
40x 2nd class seats

Display registration numbers

Display associated files

Vehicle's history

Add content

Report an error?

1982

The 30x units from this series are built between 1982 and 1983 by:
- Bautzen (Germany): wagons cases;
- VEB Waggonbau Görlitz (Germany): bogies and final assembly.

Sources: VEB Waggonbau Görlitz - Reisezugwagen Bauart Y Ausführung CFR

2001

Some units from this series are converted to Alee 19-76 passenger coaches by Atelierele CFR Grivita (Romania) between 2001 and 2003.

Sources: https://www.vagonweb.cz/popisy/popisy.php?k=CFR&z=a&p=v&lang=en
