Bpmmz284.5 | TrainsDepot.org

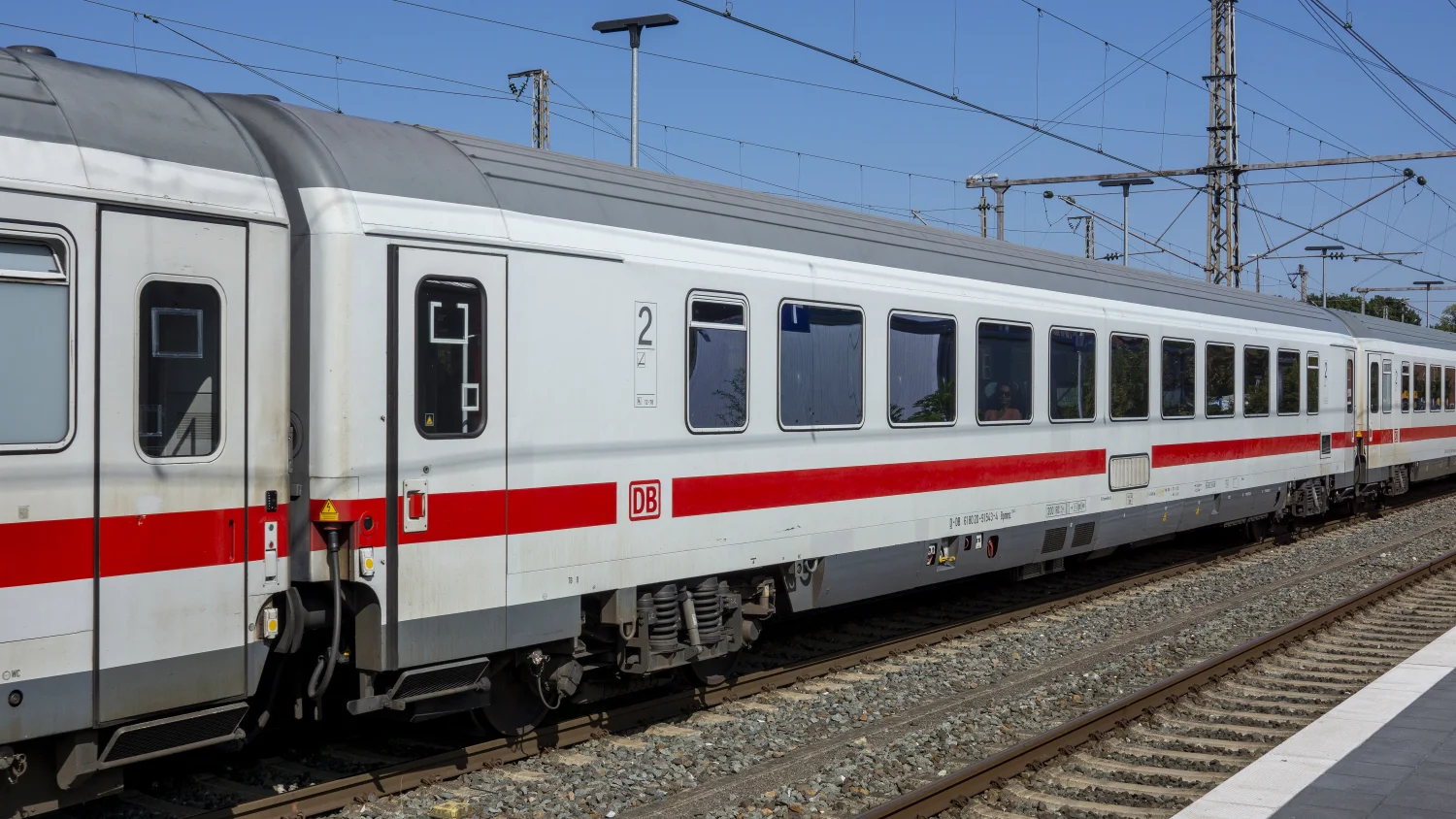

Source: Albert Koch - flickr.com

Source: Frank Thomas - bahnbilder.de

Bpmmz^284.5

UIC / EVN numbering: 61 80 20-91

Vehicle type: 2nd class coach

Registration country: Germany

Railway companies: DB - Deutsche Bahn

Hide technical details

Era:

Gauge:

Standard gauge (1'435 mm)

Length over buffers (mm):

26'400 mm

Width (mm):

2'825 mm

Height (mm | over lowered pantograph):

4'050 mm

Tare weight (t):

45 t

Bogies:

Minden-Deutz 523

Maximum speed (km/h):

200 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GPR-Mg (D) [ep] [NBU]

Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):

80 2nd class seats

Display registration numbers

Vehicle's history

Add content

Report an error?

2015

These units are converted between 2015 and 2016:
- from Bpmz^294.3 coaches: units 61 80 20-91 304, 307, 308, 313, 316, 318, 334, 336, 338, 340, 366 & 379;
- from Bpmz^294.5 coaches: units 61 80 20-91 500 to 548 & 594 to 599.
