Hide technical details
Gauge:
Standard gauge (1'435 mm)
Current collectors:
Pantograph - Symmetrical
Length over buffers (mm):
19400
Tare weight (t):
126
Power output (x'xxx kW / x'xxx hp):
2688
3650
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1350
Maximum speed (km/h):
65

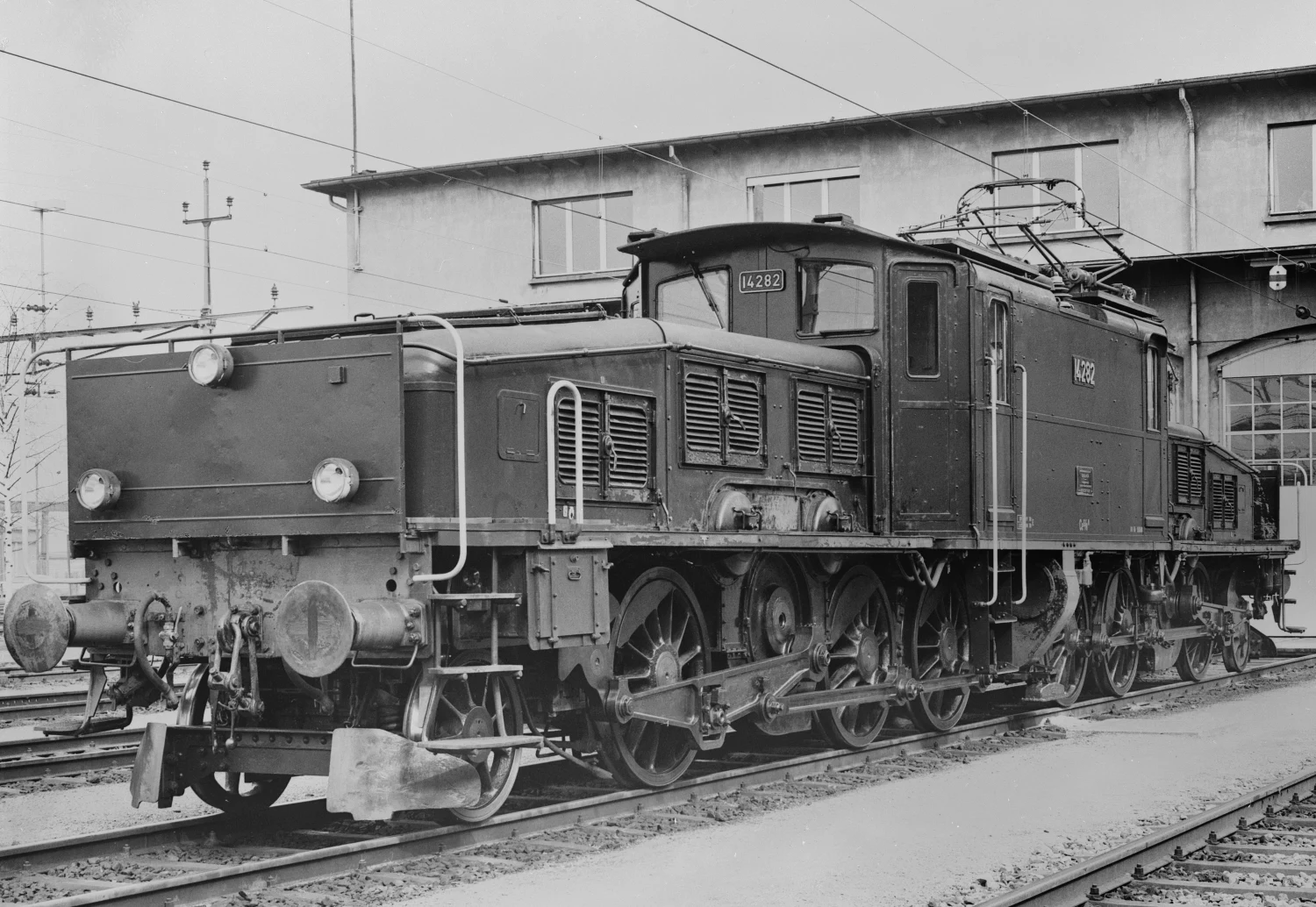

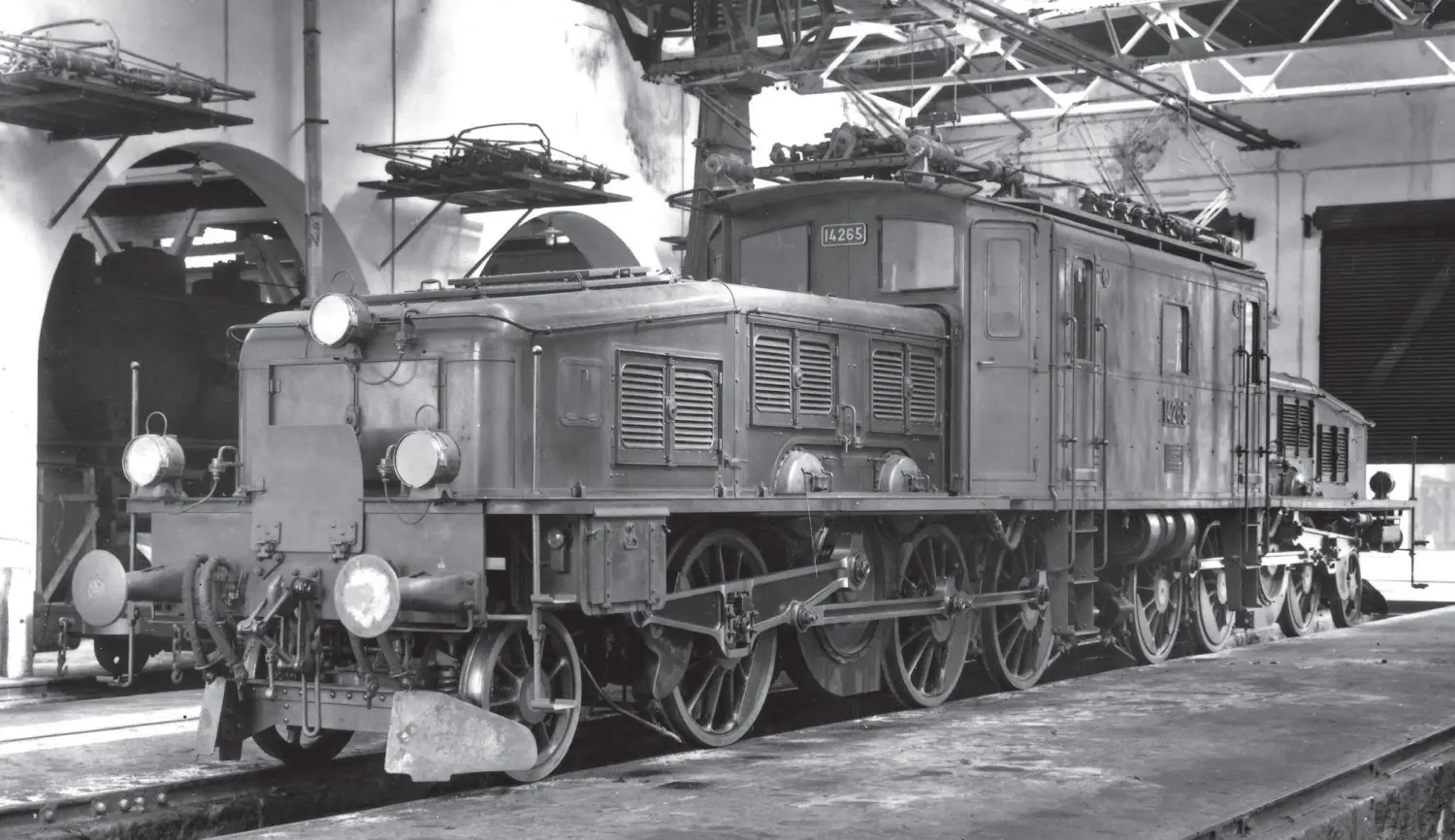

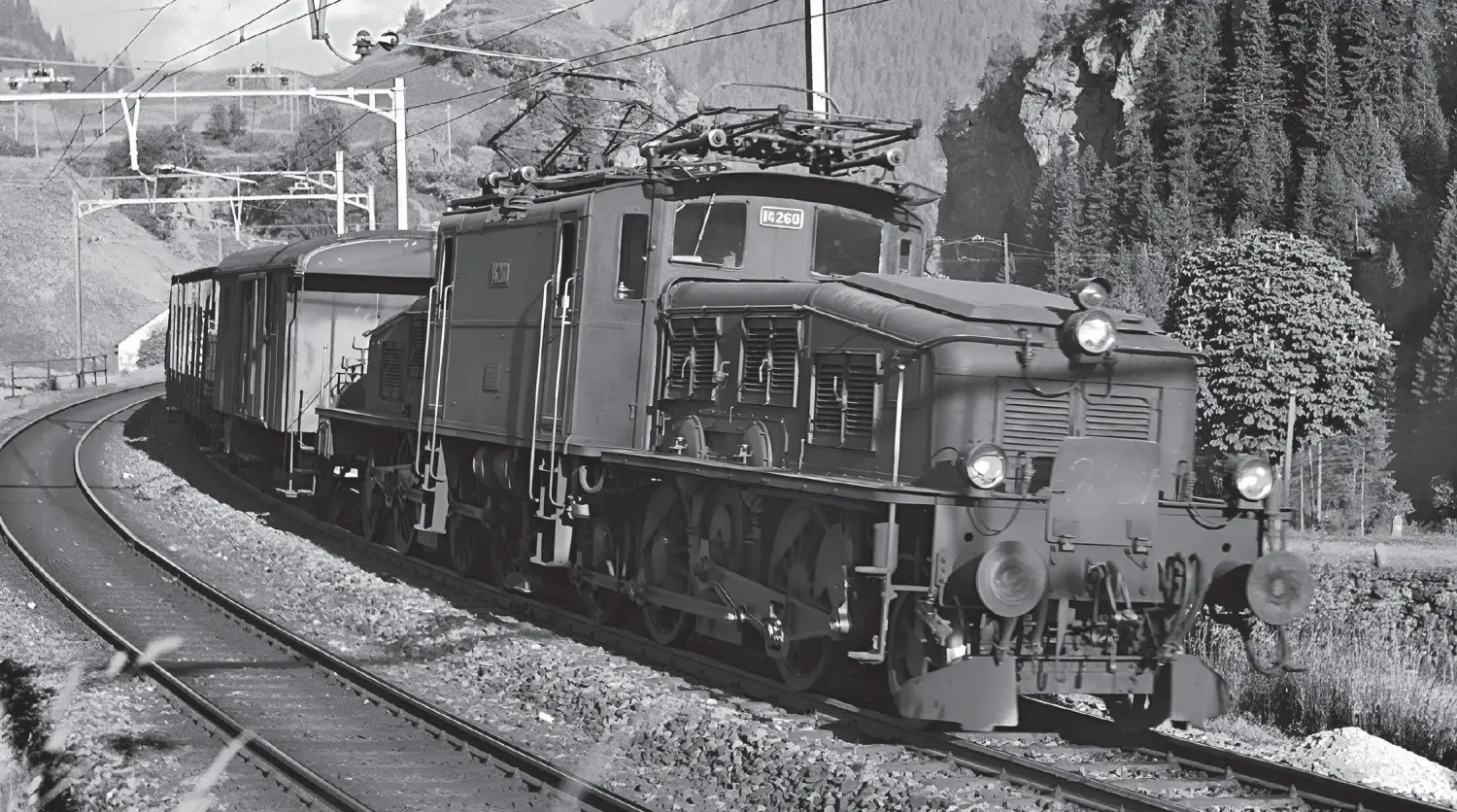

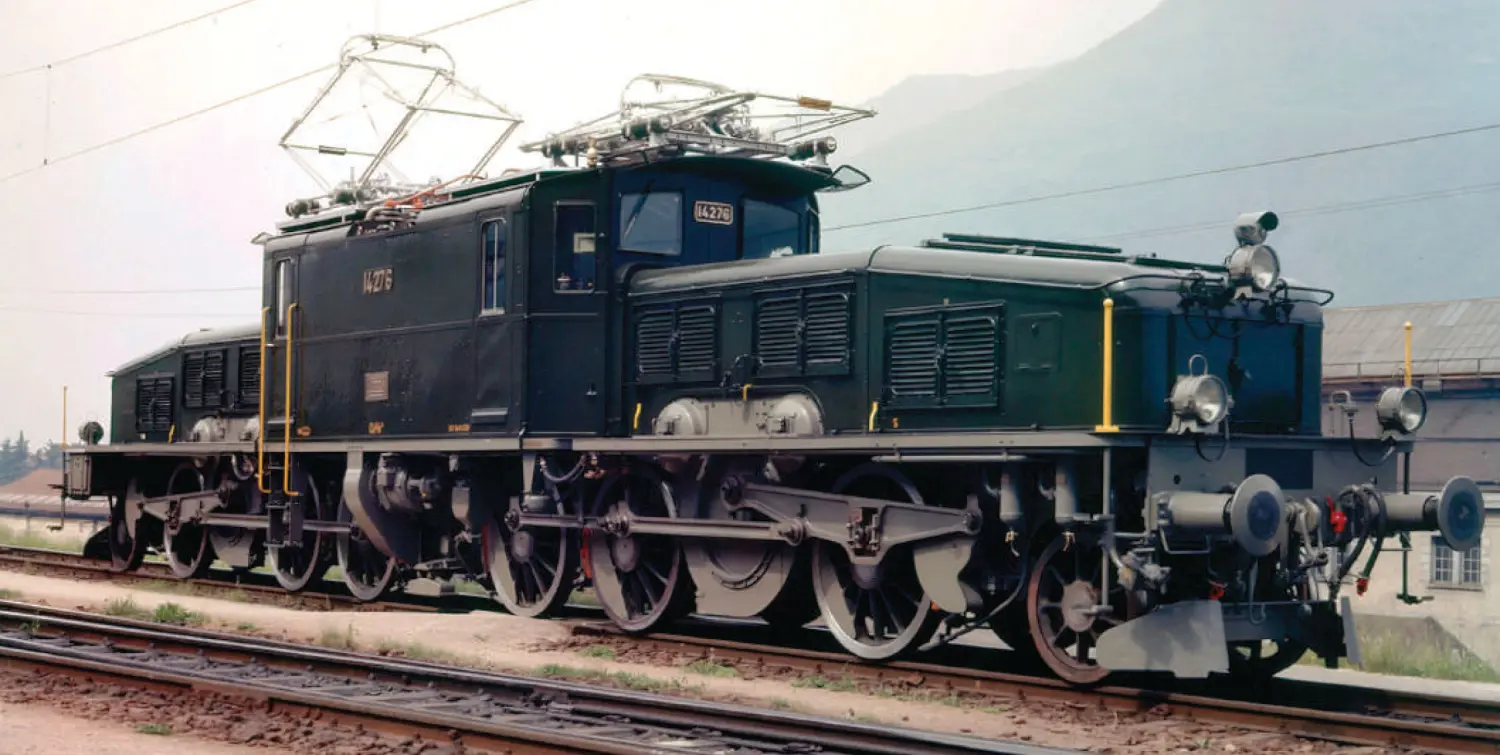

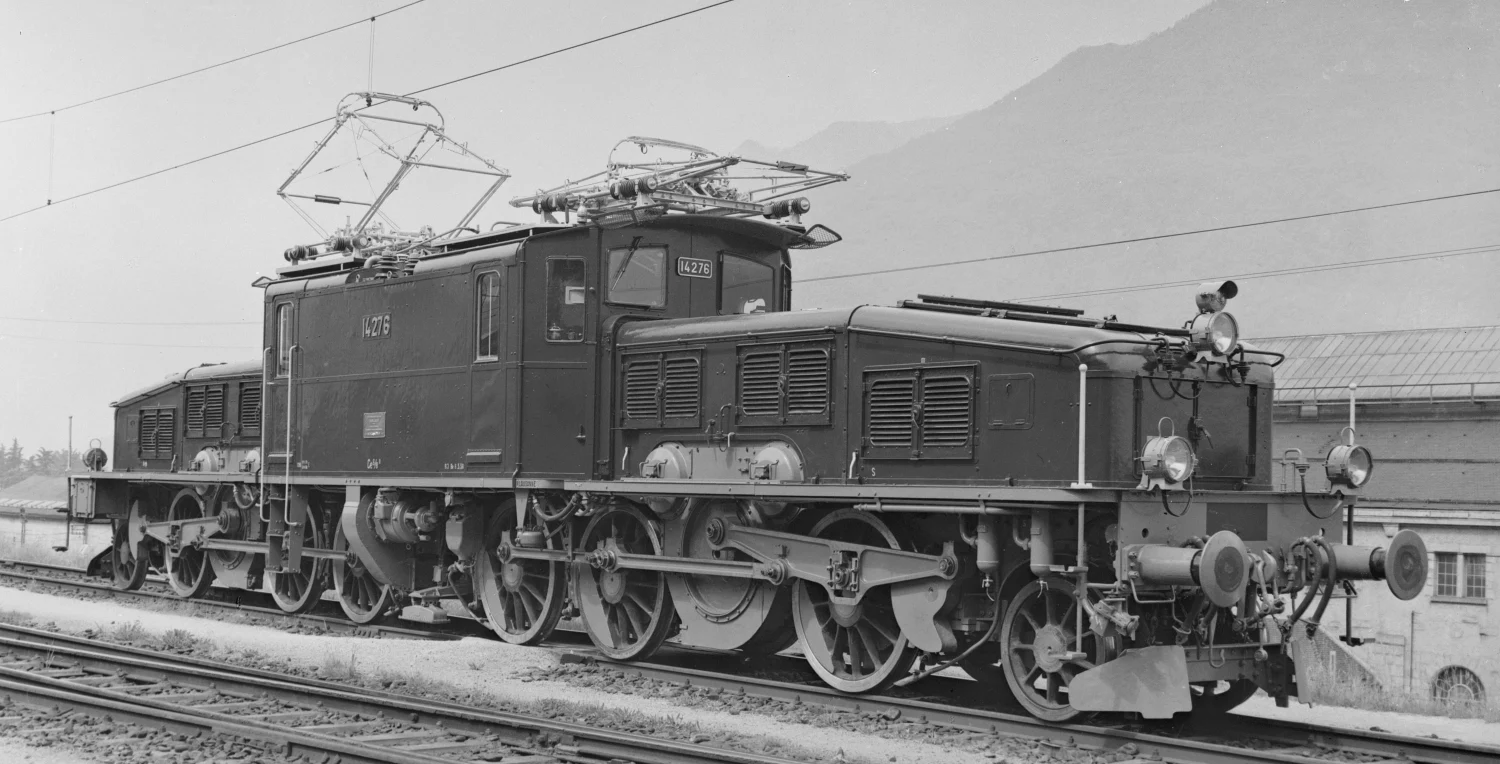

The Swiss Railways (SBB) recognised before World War I the advantages of electric railroad operation. In November of 1913 the decision was reached to electrify the Gotthard line between Erstfeld and Bellinzona. The rising cost of coal and the lack of coal during the following war years confirmed the correctness of this decision and contributed to the acceleration of electrification at the end of the war. Electrification of the Gotthard grades as well as the Gotthard tunnel was completed by December 12, 1920. The SBB had to come up with a brand new locomotive for freight trains, because there was hardly any data available for such a mountain locomotive.

The builders Maschinen-Fabrik Oerlikon (MFO) and Schweizerische Lokomotiv- und Maschinenfabrik Winterthur (SLM) suggested a 2-6-6-2 locomotive with long hoods and two powered trucks. "The" Gotthard was born with this "Crocodile" as it was quickly named.

The two powered truck frames, each with three powered axles and a Bissel pilot truck, were connected by a close coupling. A short locomotive body was enthroned between the two powered truck frames which gave the locomotive marvellous manoeuvrability on curves.

The drive system was done with two traction motors per powered truck via countershaft, jackshaft, triangular rods, and side rods to the driving axles.

A total of seven Ce/Be 6/8II were preserved as famous and popular locomotives: SBB Historic (14253), the Swiss Transportation Museum in Lucerne (13254), the South Railroad Museum in Mürzzuschlag, Austria (13257), the Technology Museum of Speyer (14267), Club del San Gottardo (14276), and the Auto and Technology Museum in Sinsheim (14282).

1919

First deliveries

Between 1919 and 1922 a total of 33 locomotives were delivered as Ce 6/8 II 14251-14283 that were destined to dominate heavy freight service on the Gotthard.

1965

First retirements

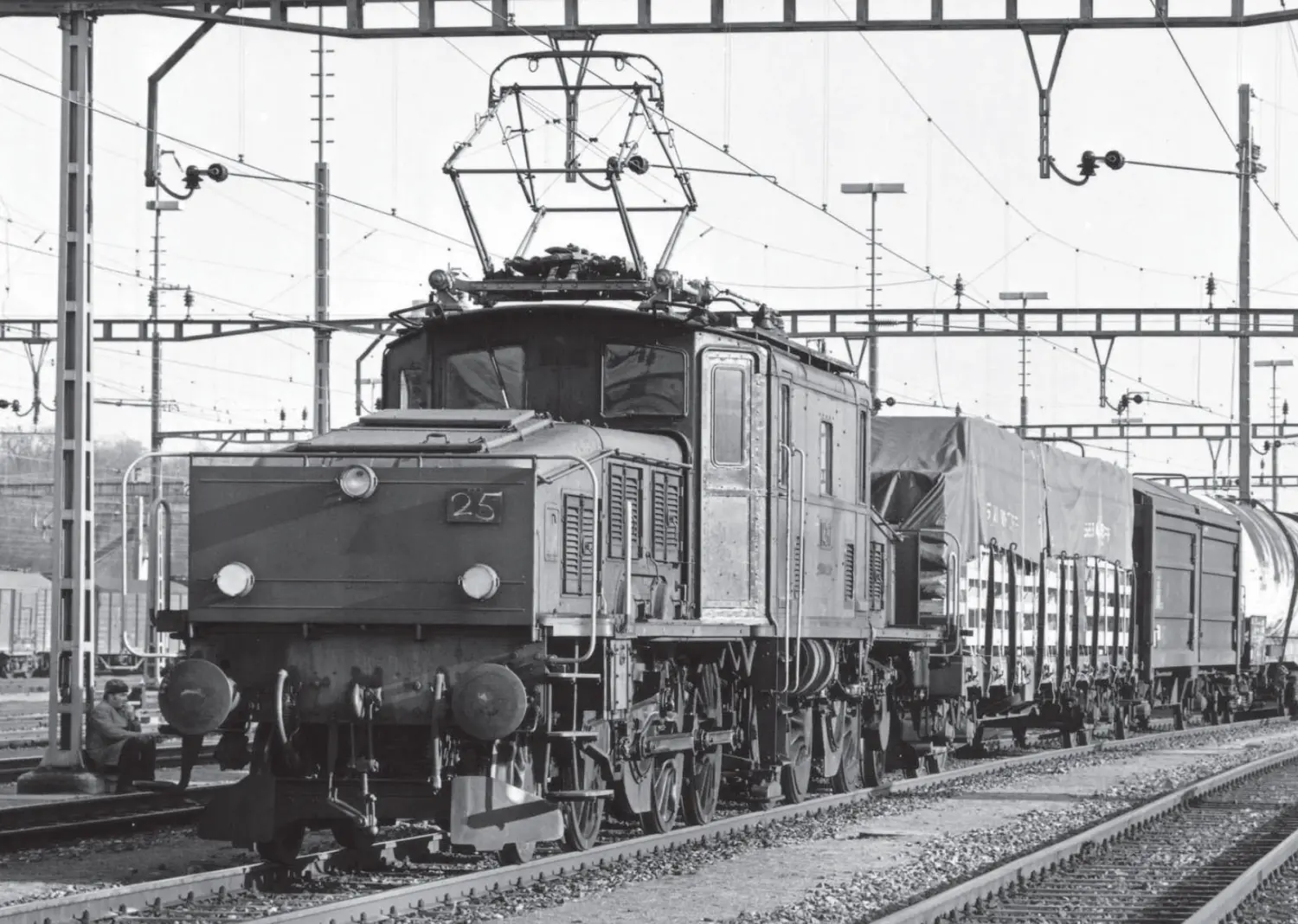

The first of the original Ce 6/8 II to be retired was from 1965 on. At the same time eleven units began to be converted for use at large switch yards, whereby the following changes were done: installation of switching radio, removal of one pantograph, and installation of new platform railings in front of the hoods. These "switcher crocodiles" were in service the longest and ran well into 1986.
