Masquer les détails techniques
Écartement:
Standard gauge (1'435 mm)
Disposition des roues:
Bo'Bo'
Systèmes électriques:
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
Collecteurs de courant:
Pantograph - Asymmetrical
Length over buffers (mm):
18.90
Width (mm):
2.97
Height (mm | over lowered pantograph):
4.38
Tare weight (t):
85
Axle load (t):
21.3
Number of traction motors:
4
Power output (x'xxx kW / x'xxx hp):
5600
Tractive effort (kN / lbf | starting / continuous):
300
Maximum speed (km/h):
140

The 482 class is almost identical to the German 185 class, being part of the first generation of the multipurpose platform Traxx from Bombardier, the F140 C1. However, this locomotives is used for more than just freight services as it also substitutes from time to time for the Re 460 in passenger service. The Re 482 units running in Switzerland have four pantographs on the roof in order to adhere to the narrower SBB clearance gauge and the wider zig-zag pattern of the catenary in other European countries. You can thus see the SBB's Re 482 far beyond the borders of Switzerland.

2002

Re 482 009-8 est livré en 2002 à SBB Cargo AG.

Concerne le(s) numéro(s) d'immatriculation: 91 85 4482 009-8

2002

juin 13

Re 482 009-8 entre en service pour des opérations en Suisse et en Allemagne.

Concerne le(s) numéro(s) d'immatriculation: 91 85 4482 009-8

2003

septembre 19

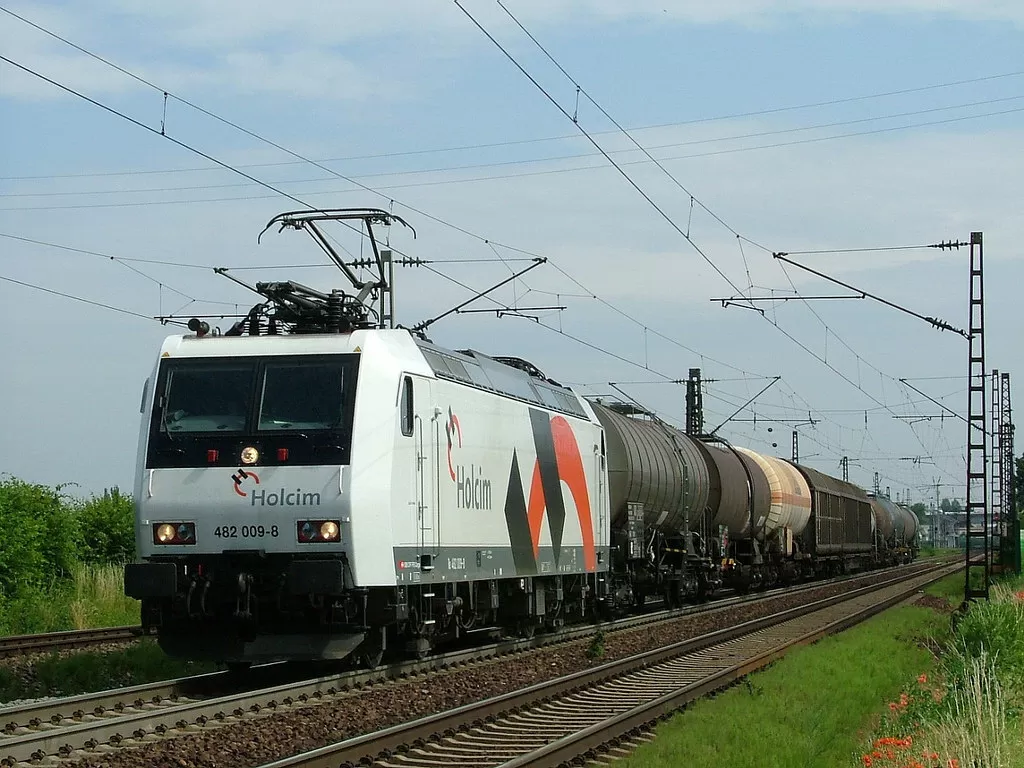

La locomotive est nommée "Zürich-Oerlikon" et reçoit la livrée Holcim. NB : la livrée Holcim est de nature publicitaire, elle n'implique pas que la locomotive soit dédiée au transport de wagons de fret Holcim.

Concerne le(s) numéro(s) d'immatriculation: 91 85 4482 009-8

2006

avril

La locomotive retrouve sa livrée d'origine.

Concerne le(s) numéro(s) d'immatriculation: 91 85 4482 009-8

2008

La locomotive est louée à HSL Logistik GmbH, Hambourg.

Concerne le(s) numéro(s) d'immatriculation: 91 85 4482 009-8
