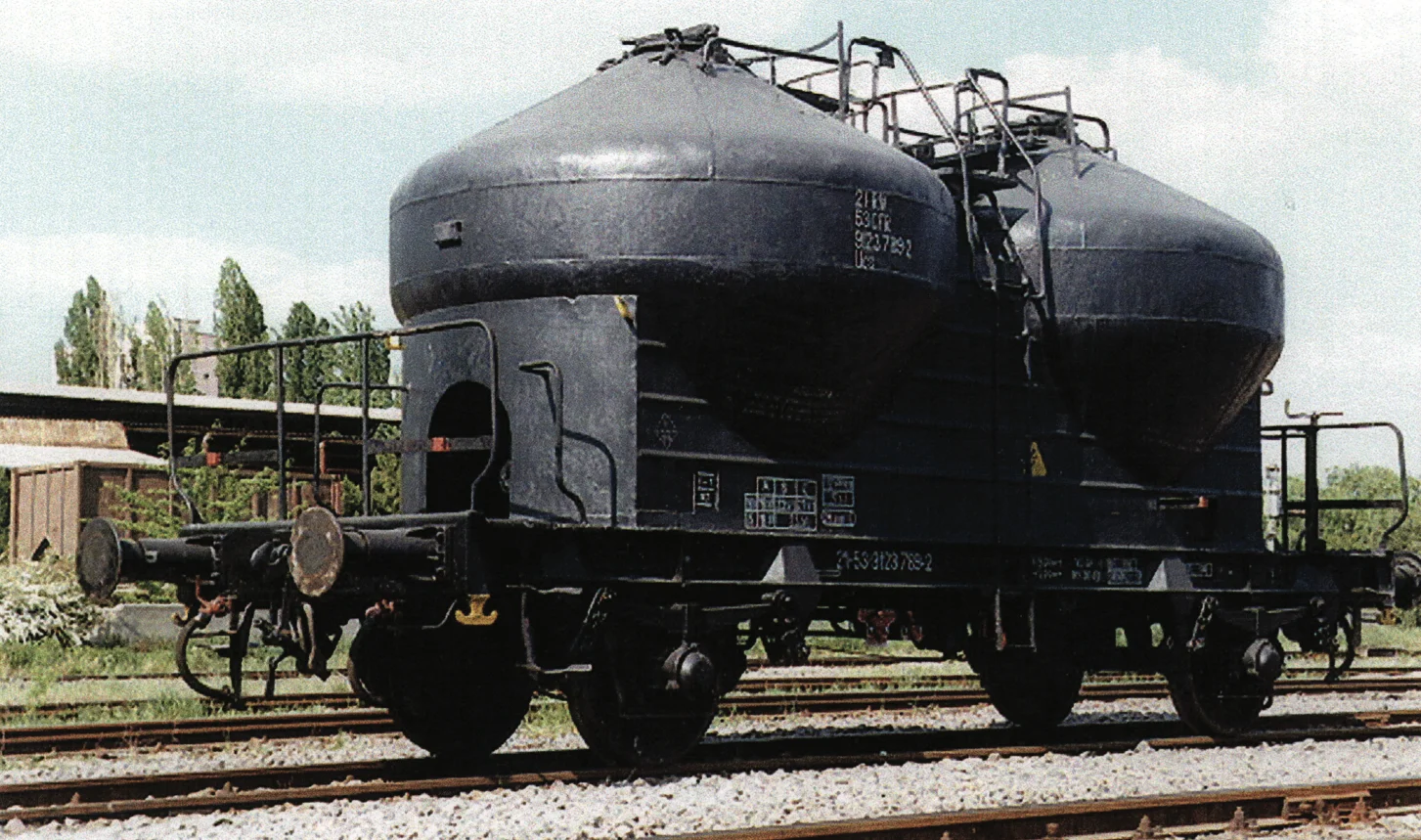

Ucs 9122 - 9123

UIC / EVN numbering: 21 53 9123 / 42 53 9123

Registration country: Romania

Railway companies: CFR - Caile Ferate Române CFR Marfa / CFR Marfă - Societatea Națională de Transport Feroviar de Marfă (CFR Marfă)

Hide technical details

In service:

from 1975

Built by:

MEVA - Wagon and locomotive repair company Drobeta Turnu Severin

Length over buffers (mm):

9'190 mm

Width (mm):

3'100 mm

Height (mm | over lowered pantograph):

4'040 mm

Wheelbase (mm | rigid / total):

5'000 mm

Minimum radius of curvature on open stretches (m):

150 m

Minimum radius of curvature on switching sections (m):

75 m

Tare weight (t):

12,85 t

Maximum load weight (t):

27 t

Wheel diameter (x'xxx,xx | mm | new / worn):

1'000 mm

Maximum speed (km/h):

100 km/h

Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):

KE-GP

Maximum load volume (m³):

25 m³

Display registration numbers

Vehicle's history

Add content

Report an error?

1972

The units from this series are built between 1972 and 1974.

Sources: http://www.cfrmarfa.com/index2.php?option=com_content&view=article&id=140:ucs&catid=47
